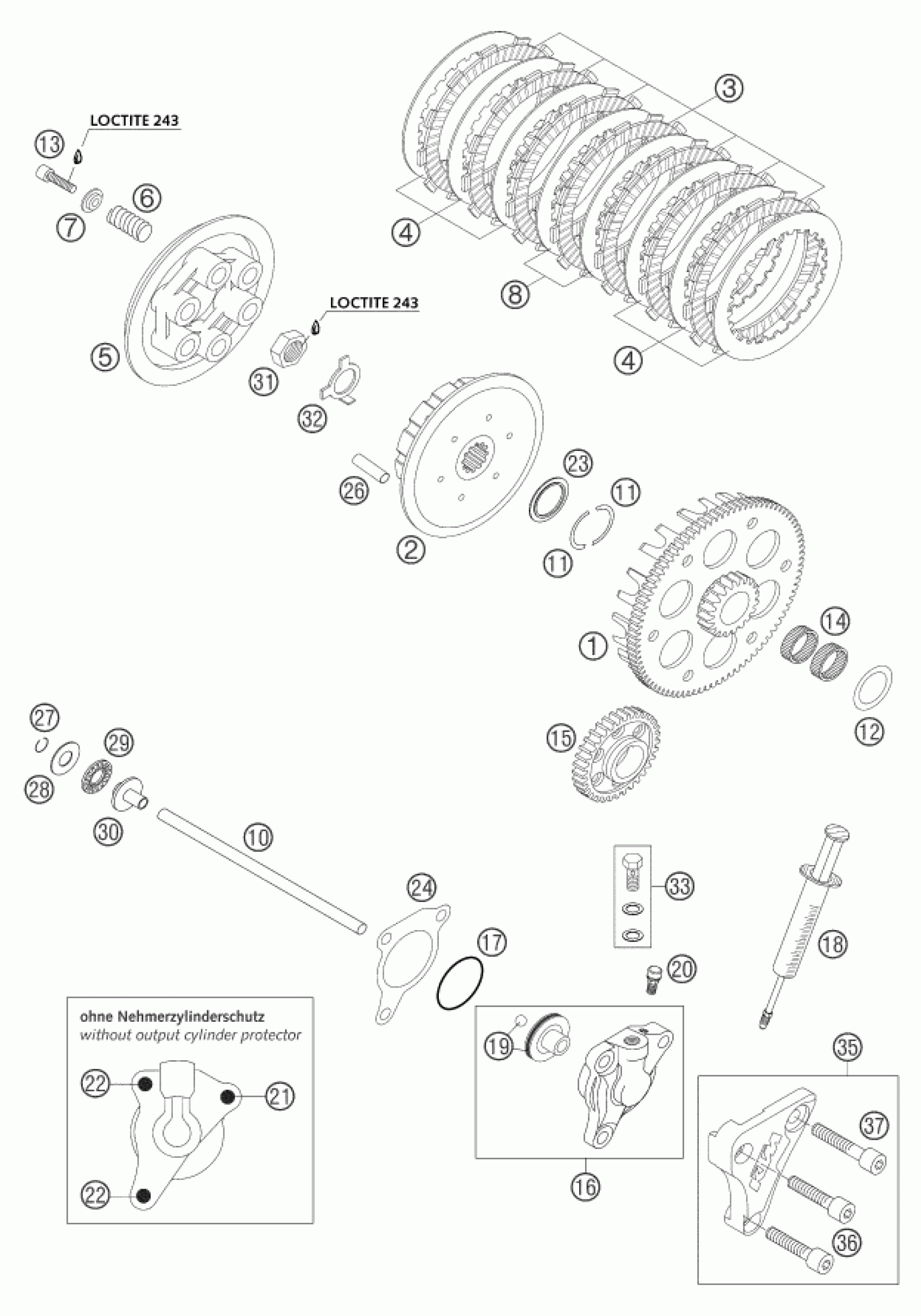

KTM 450 SMS <2004> CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH H. 76-T/20-T 2001

59032000276

$299.46

2

INNER CLUTCH HUB RACING

59032002200

Unavailable

3

LINING DISC 2MM 04

59032011100

$22.43

4

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

5

PRESSURE CAP 04

59032003200

$52.29

6

CLUTCH SPRING 2,5X43MM

59032005000

$3.08

7

SPRING RETAINER 6,2X12X18X3,6

59032006000

$2.05

8

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

10

PUSH ROD 7X188MM

59032054000

$13.08

11

HALF-WASHER 03

59032007000

$2.05

12

SUPPORTWASHER 25X35X1

59032017000

$2.05

13

AH SCREW DIN6912 M6X25

0984060252

$2.05

14

NEEDLE BEAR K 25X29X10

0405252910

$8.87

15

PRIMARY GEAR 33-T

59032000033

$126.59

16

OUTPUT CYLINDER CPL. 27MM 03

59032061044

$240.75

17

O-ring 30x1.5 NBR 70

0770300015

$2.05

18

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

19

PISTON + O-RING + BALL 27MM

59032066000

$240.75

20

BLEEDER SCREW WITH CAP

54732064000

$21.96

21

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

23

STEPPED WASHER 03

59032009000

$8.03

24

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

26

DRIVING SLEEVE D=8,L=31 2002

59032004000

$3.00

27

CIRCLIP DIN7993-RW12

0993012000

$3.08

28

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

29

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

30

PRESSURE PIECE 125-380 '98

50332054051

$26.45

31

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

32

LOCK WASHER

56532018000

$6.26

33

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

35

CASE GUARD

59032075000

Unavailable

36

AH SCREW DIN0912-M 6X30

0912060303

$2.05

37

AH SCREW DIN0912-M 6X35

0912060353

$2.05
