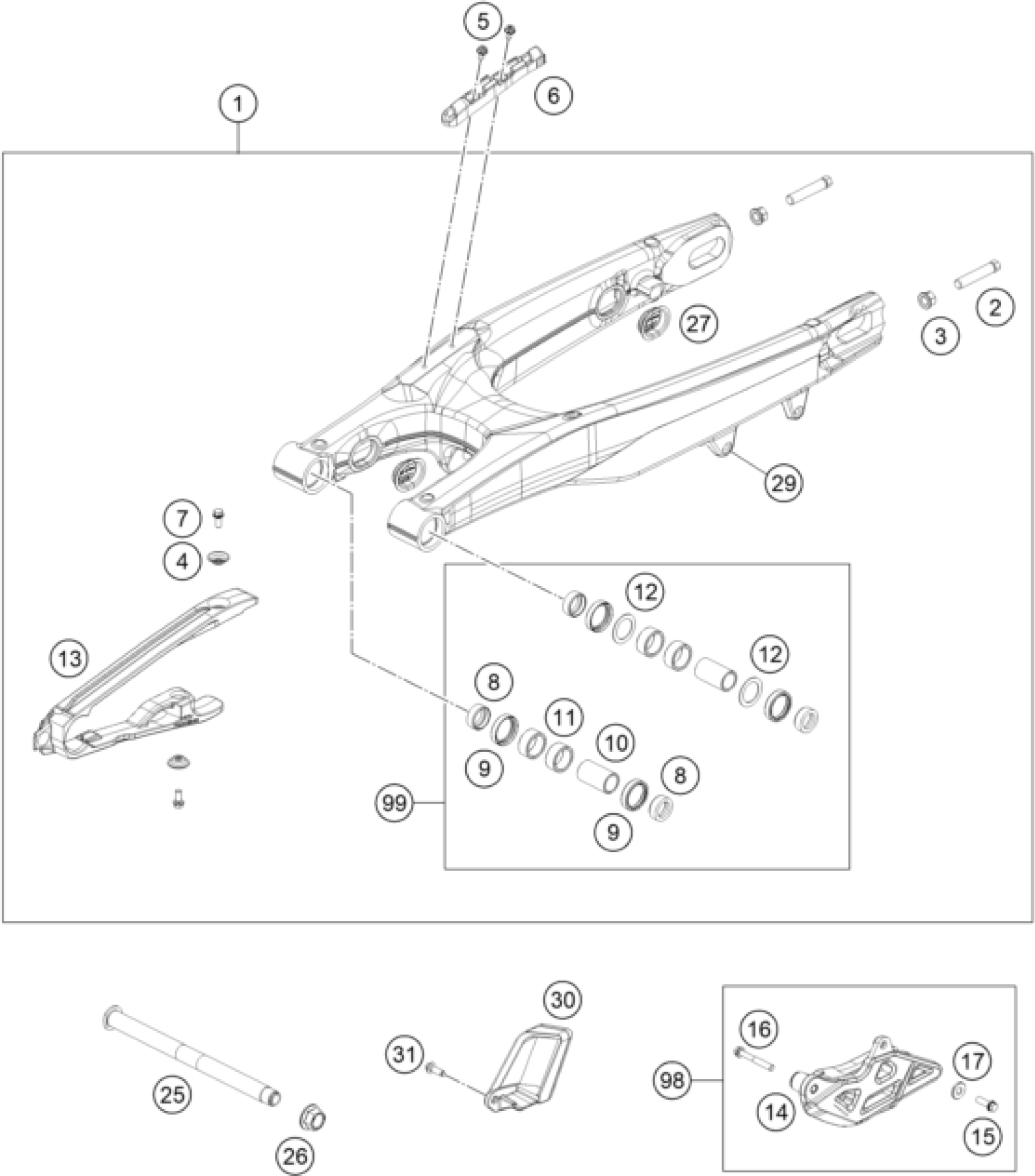

KTM 450 SMR 2025 SWING ARM Diagram

#

Description
Price

2

screw M10x1.25x50 WS10

50304040100

Unavailable

13

CHAIN SLIDING PROTECTION

77204066100

Unavailable

4

Chain slider bushing

77304066150

Unavailable

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

6

BRAKE HOSE GUIDE

79004042000

Unavailable

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

8

Support f. shaft seal ring 16

77704034000

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

10

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

11

Needle bushing HK2212V 22/28/1

0618222812

Unavailable

12

STOP DISK 22,2X31,7X1

54603036000

Unavailable

14

CHAIN GUIDE

79004070000

Unavailable

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

16

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

17

BUSH. F. CHAIN FAIL. PROT. 07

77304070130

Unavailable

25

Swingarm pivot

A46004037000

Unavailable

26

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

27

Locking cap swingarm

77204041000

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

30

CHAIN STOP GUARD SMR 12

77304260100

Unavailable

31

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

98

CHAIN GUIDE KIT REAR 16

79004070010

Unavailable

99

SWING ARM REPAIR KIT SX-F

79004030010

Unavailable

1

Swingarm cmpl. 25

25104130144

Unavailable

3

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable
