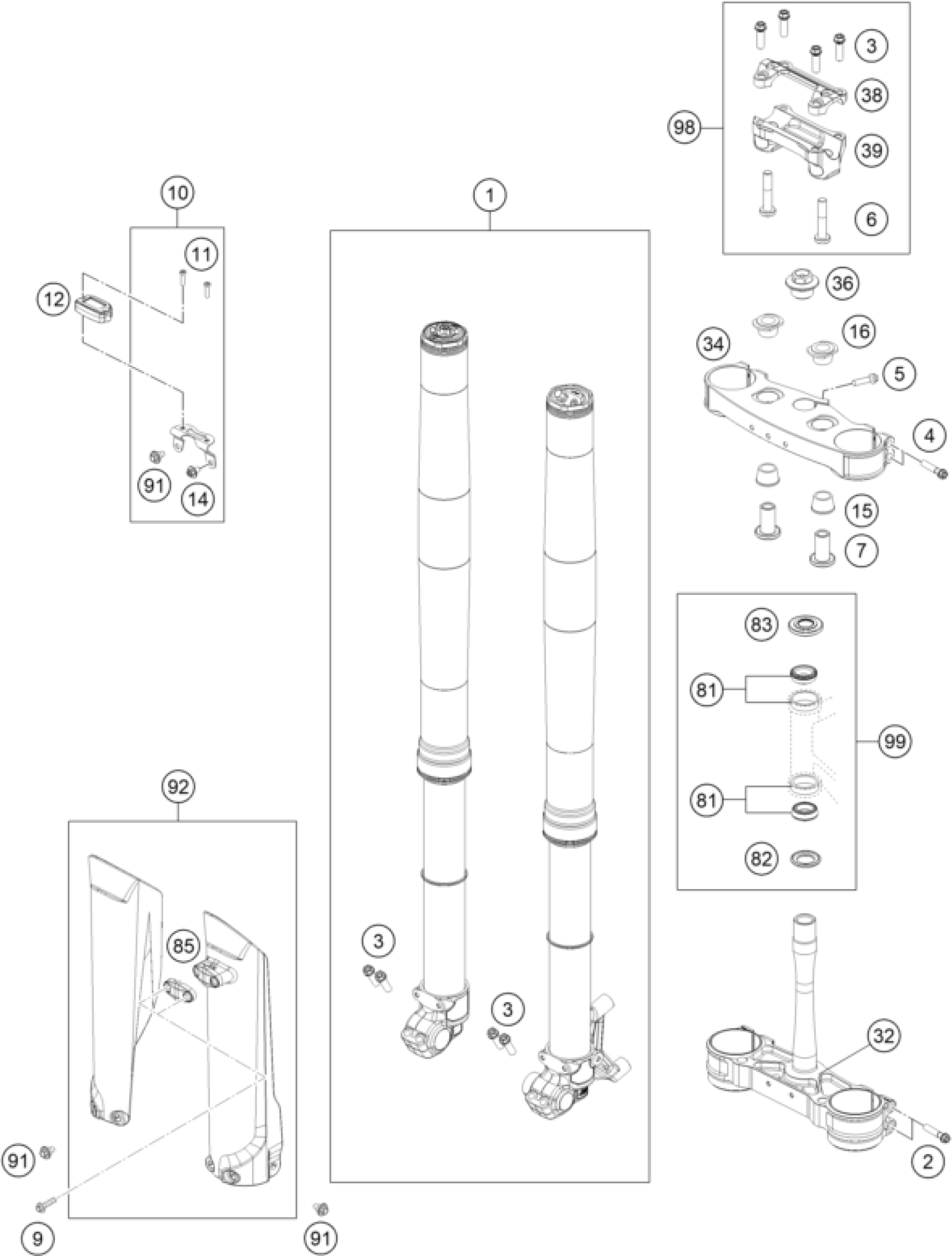

KTM 450 SMR 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 450 SMR / HQV 450 FS

A480C108Y402000

Unavailable

2

HH collar screw M8x50 TX40

0025080506

$3.08

3

HH collar screw M8x25

0025080256

$2.05

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

AH collar screw M10x50 ISA45

0035100509S

$7.10

7

Handlebar support, lower part

A46001039034

$26.55

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

HOURMETER BRACKET TTV

78112920044

$9.34

11

AH SCREW DIN0912-M 4X16

0912040163

$2.05

12

HOURMETER

81312920050

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

15

RUBBER BUSH

83001040000

$5.23

16

Rubber bushing

A46001035001

$1.49

32

Bottom triple clamp cmpl. x=16

A38001032016C1

$688.53

34

Upper triple clamp X=16 mm

A38001034016C1

$371.65

36

Collar screw M20x1.5 SW17 Al

A46009082000

$3.08

38

HANDLEBAR CLAMP 28MM

79001038000

$69.37

39

Handlebar mount D28 mm-H36 mm

A48001039036

$58.43

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

83

Steering head seal

A46001086000

$22.43

85

Clamp for brake line

77701085100EB

$5.23

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Gabelschutzkit 450 SMR 25

77701094000EBS

Unavailable

98

handlebar mount kit D28mm-H36m

A48001039010

Unavailable

99

Repair Kit steering head beari

A46001081044

Unavailable
