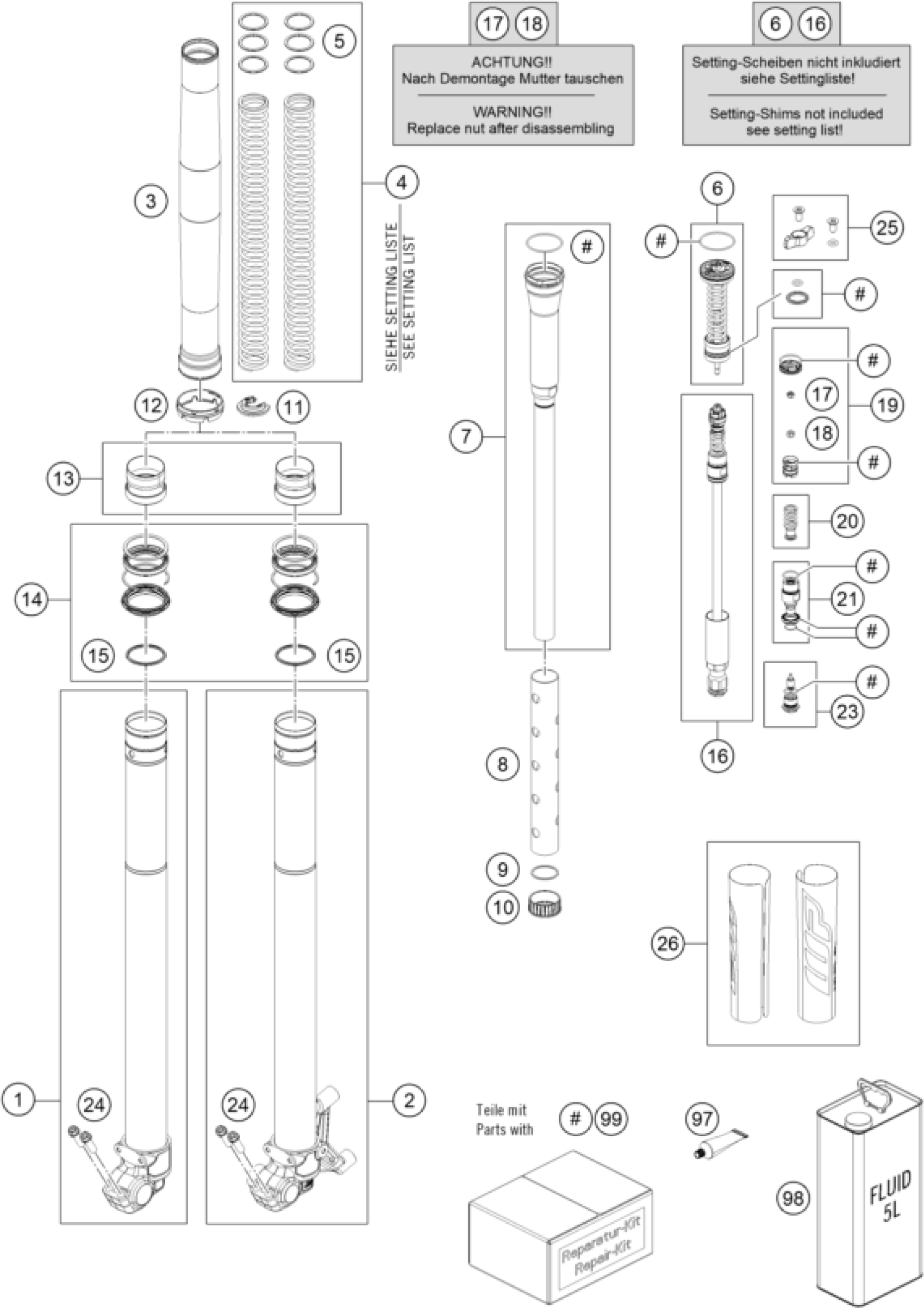

KTM 450 SMR 2025 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. With inner tube

48602224S

Unavailable

2

Axle clamp le. With inner tube

48602223S

Unavailable

3

fork outer tube 49.13x577 dt54

48602096

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Basevalve cpl.

S043400000S0300

Unavailable

7

Pressure tank M38x0.5 cmpl.

S418900003S0100

Unavailable

8

Tube 35x38x267

S53360000500000

Unavailable

9

Washer 33,5x38x1,5

48600752

Unavailable

10

Spring seat 33.5x44.5x18.5

S82890000200000

Unavailable

11

Spring pad D44 Clip

S82890000500000

Unavailable

12

Fork protection ring 59,8mm

S639200001000FA

Unavailable

13

Guide bushing set fork 48mm

R14047T

Unavailable

14

Seal kit 48mm SKF black

RP10048T

Unavailable

15

Stroke indicator 48mm red

48602007

Unavailable

16

pistonrod 12,0x380,55 cpl.

S501200025S0000

Unavailable

17

Nut M6 h5,4 SW10

48602128

Unavailable

18

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

19

Repair kit piston CC spring fo

RP10054T

Unavailable

20

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

21

Screw cap M24.5x1 cmpl.

S408800002S0000

Unavailable

23

Adjustment screw slot M20x1 cp

48601484S

Unavailable

24

HH collar screw M8x25

0025080256

Unavailable

25

adjuster kit screw cap compres

RP10029T

Unavailable

26

Sticker set, XACT CC 238x182.5

52000318SET

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

99

Seal kit CC spring fork

RP10055T

Unavailable

4

main spring (43.8) 5.2-450 for

S809900048S0000

Unavailable

4

main spring (43.8) 5.0-450 for

S809900047S0000

Unavailable

4

main spring (43.8) 4.8-450 for

S809900046S0000

Unavailable
