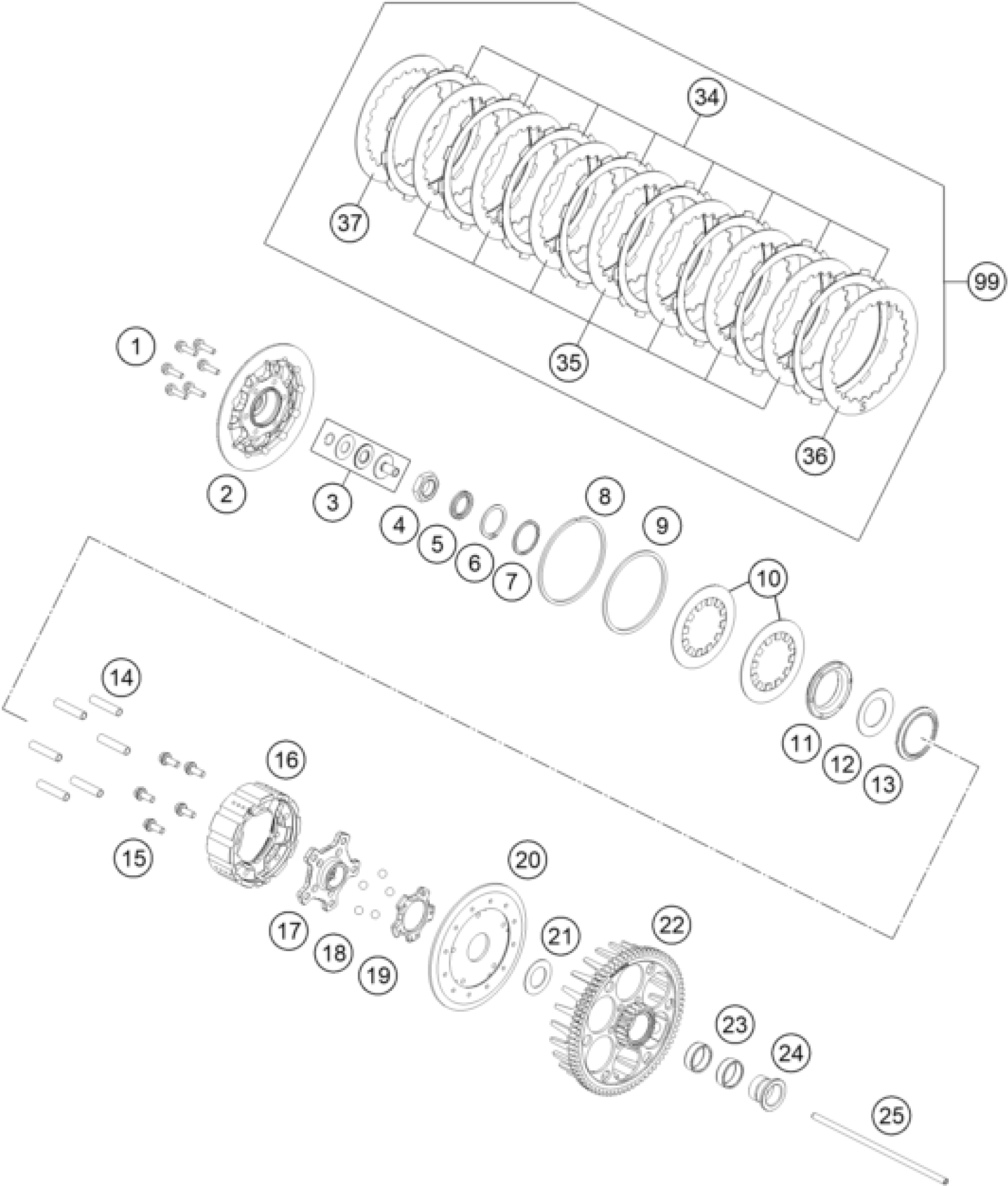

KTM 450 SMR 2025 CLUTCH Diagram

#

Description
Price

1

Distance screw M5X19.5

79532186000

$5.23

2

Pressure plate

79532103100

Unavailable

3

PRESSURE PIECE CPL.

78132057144

$30.75

4

Hex nut DIN0936-M18x1.5 right

0936181506

$3.08

5

Wedge lock washer 19.5x29x3.4

0252012002900

$3.08

6

Circlip

0471300152

$3.08

7

Distance ring 30X36X2

79532183000

$8.59

8

Circlip

0417900250

$6.54

9

Locking ring 88

79532185000

$74.42

10

Main spring washer 700 N

79532105100

Unavailable

12

Torque limiter spring 1100N

79532182000

$44.68

13

Release ring

79532181000

$106.02

14

DRIVING SLEEVE D=7,95 L=38

77232004000

$3.08

15

Bolt M6X14

79532107000

$2.05

16

Inner hub

79532102110

Unavailable

17

Hub carrier

79532102020

$707.79

18

Ball

79532168000

$1.49

19

Ramp insert 30°

79532102030

$188.77

20

Back plate insert

79532102040

$354.36

21

Thrust washer

79532120000

$29.35

22

Outer clutch hub

A46032001072

$191.01

23

NEEDLE BEAR K 25X29X10

0405252910

$8.87

24

COLLARSLEEVE

78132015100

$26.92

25

PUSH ROD

79432054000

$19.72

34

Lining disc 1,95mm

79532011000

$22.43

35

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

36

INTERMEDIATE DISC 1MM

78932010000

$12.05

37

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

99

Clutch plate pack

79532010033

$209.15

11

Clamp hub 6mm

79532102150

Unavailable
