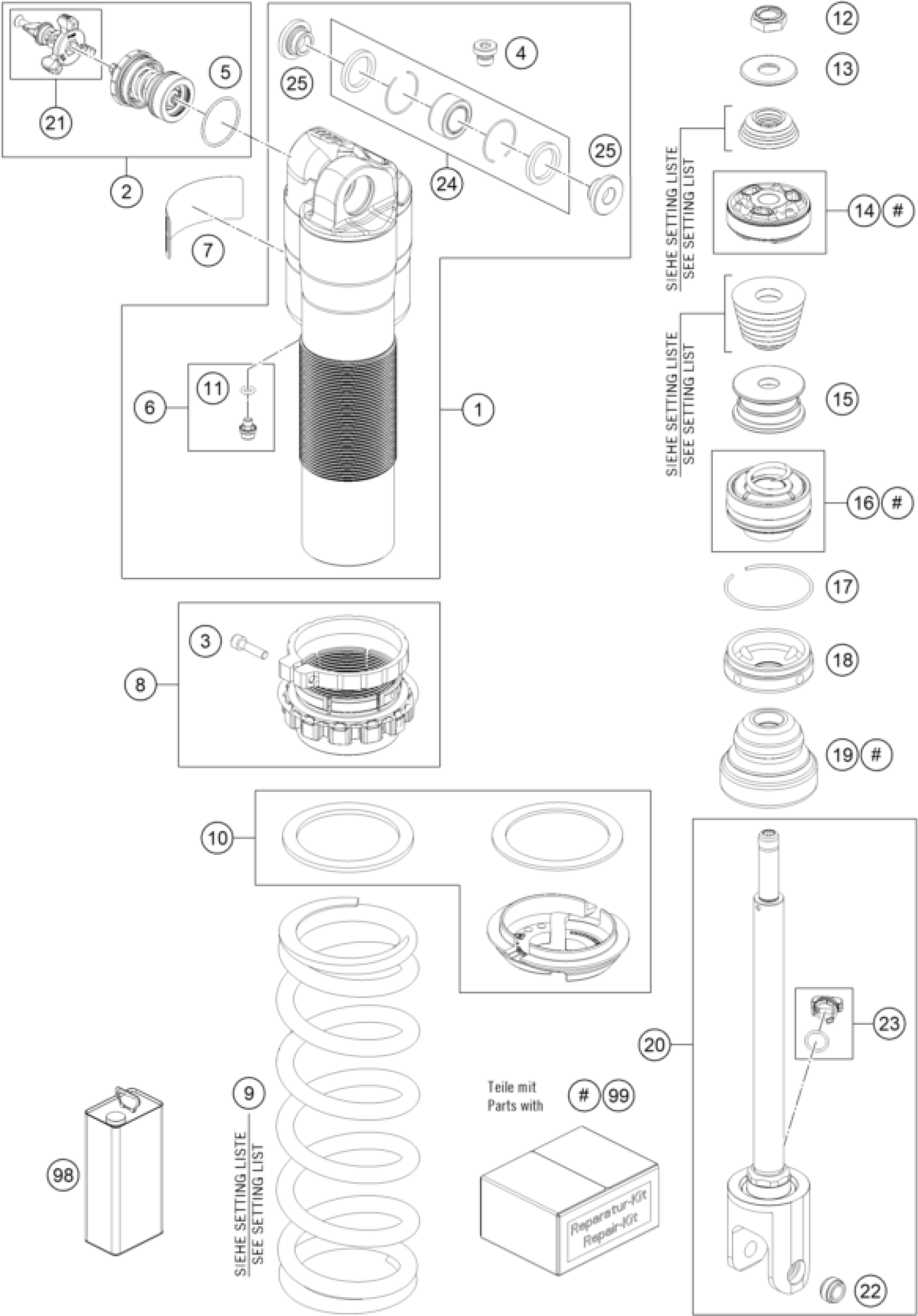

KTM 450 SMR 2023 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Monoshock case M51x1 h19 with

S455000003S0100

$293.58

2

Compression cpl.

S012900000S0900

Unavailable

3

AH SCREW DIN0912-M 5X20

0912050203

$1.49

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

6

Screw fill M5x6 cpl.

36120151S1T

Unavailable

7

Sticker XACT LDS 80x29

52000312

$26.45

8

SPRING SUPPORT

S938100001S0000

$30.94

9

mainspring (62/65) 36-240 muff

91210130

Unavailable

9

mainspring (62/65) 39-240 muff

91210131

Unavailable

9

Main spring (62/65) 42-240,muf

91210132

Unavailable

9

Main spring (62/65) 45-240,muf

91210133

Unavailable

9

Main spring (62/65) 48-240,muf

91210134

Unavailable

9

mainspring (62/65) 51-245 muff

91210135

Unavailable

10

Spring seat 26,5x76,5x22,3 cpl

S828800000S01BQ

$38.24

11

O-ring 5,28x1,78 HNBR70 red

S208600003000FB

$1.49

12

Locking nut M12x1 h9 WAF19

50181207

$7.85

13

Rebound disc 12x34x3,5 h0

50181344

$13.83

14

Piston 12x49,4x18 cpl

S625000000S0000

$50.01

15

Rebound disc 12x43x22,5 h18,3

S25120000200000

$46.27

16

Dichtungsträger 50x28 cpl.

50180603S7

$63.10

17

Round-wire snap ring 53x1,75

50180126

$1.49

18

Cap 50,12x16 h6

50181349

$24.86

19

Rubber pad 18x58x46 black

50181100

$19.35

20

Mounting fork with piston rod

S421800010S0100

$223.27

21

Repair kit adjuster DCC 2023

RP10044T

Unavailable

22

Bush M10x12/15/13x9,5

46811205

$6.72

23

adjuster rebound red cpl.

S918100006S0000

$3.08

24

Ball joint bearing kit top 12m

R12012

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

shock absorber rebuild kit

RP10043T

Unavailable

9

Mainspring (62) 54-250.0 shock

91210136

Unavailable

25

Distance bush 10x15/18/24,5x10

46180010

$4.11
