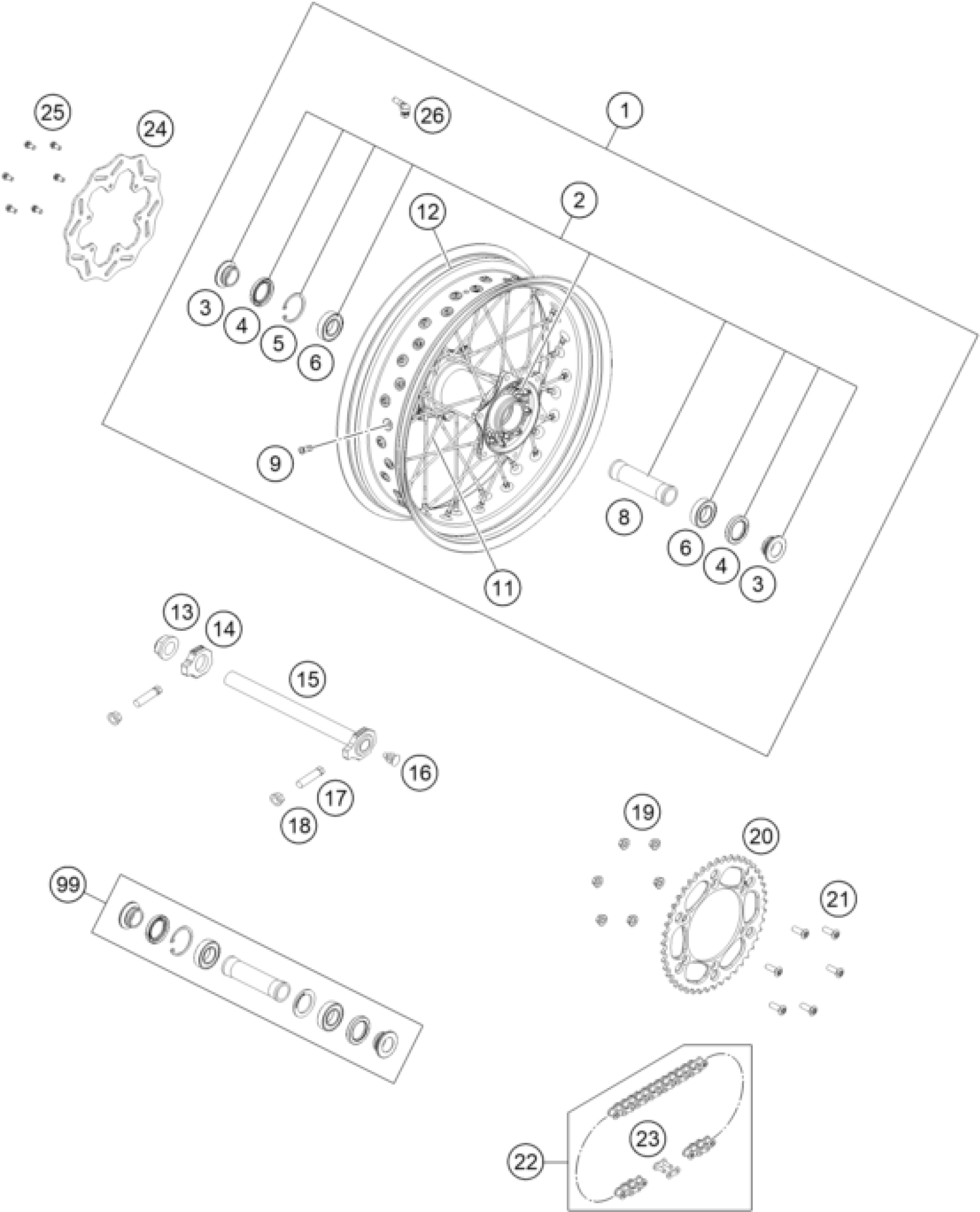

KTM 450 SMR 2023 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel cmpl. 5.00x17"

A38010001044C1

Unavailable

2

Rear wheel hub cmpl.

A46010010044

Unavailable

3

Spacing tube rear wheel

A46010016000

Unavailable

4

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

8

Bearing spacer tube 121.5mm

A46010011000

Unavailable

9

SPOKE NIPPLE M4,5X0,75

26110072000

Unavailable

11

SPOKE M4,5X154 - 17''

26110071154

Unavailable

12

RIM REAR 5X17'' BLACK

2611007000030

Unavailable

13

Collar nut M22x1.5 WS=30

A46010086000

Unavailable

14

Chain tension adjuster right

A46010084000

Unavailable

15

Wheel spindle rear wheel cmpl.

A46010085044

Unavailable

16

Plug SFL16

50210086000

Unavailable

17

screw M10x1.25x50 WS10

50304040100

Unavailable

18

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

19

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

20

Rear sprocket 46 Z

7771015104630

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

CHAIN 5/8X1/4'' MX

50310165118

Unavailable

23

Connecting link for 5031016511

50310166000

Unavailable

24

BRAKE DISC REAR D=220MM

25010060000

Unavailable

25

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

26

valve front

26109076000

Unavailable

99

wheel bearing repair kit

A46010015010

Unavailable
