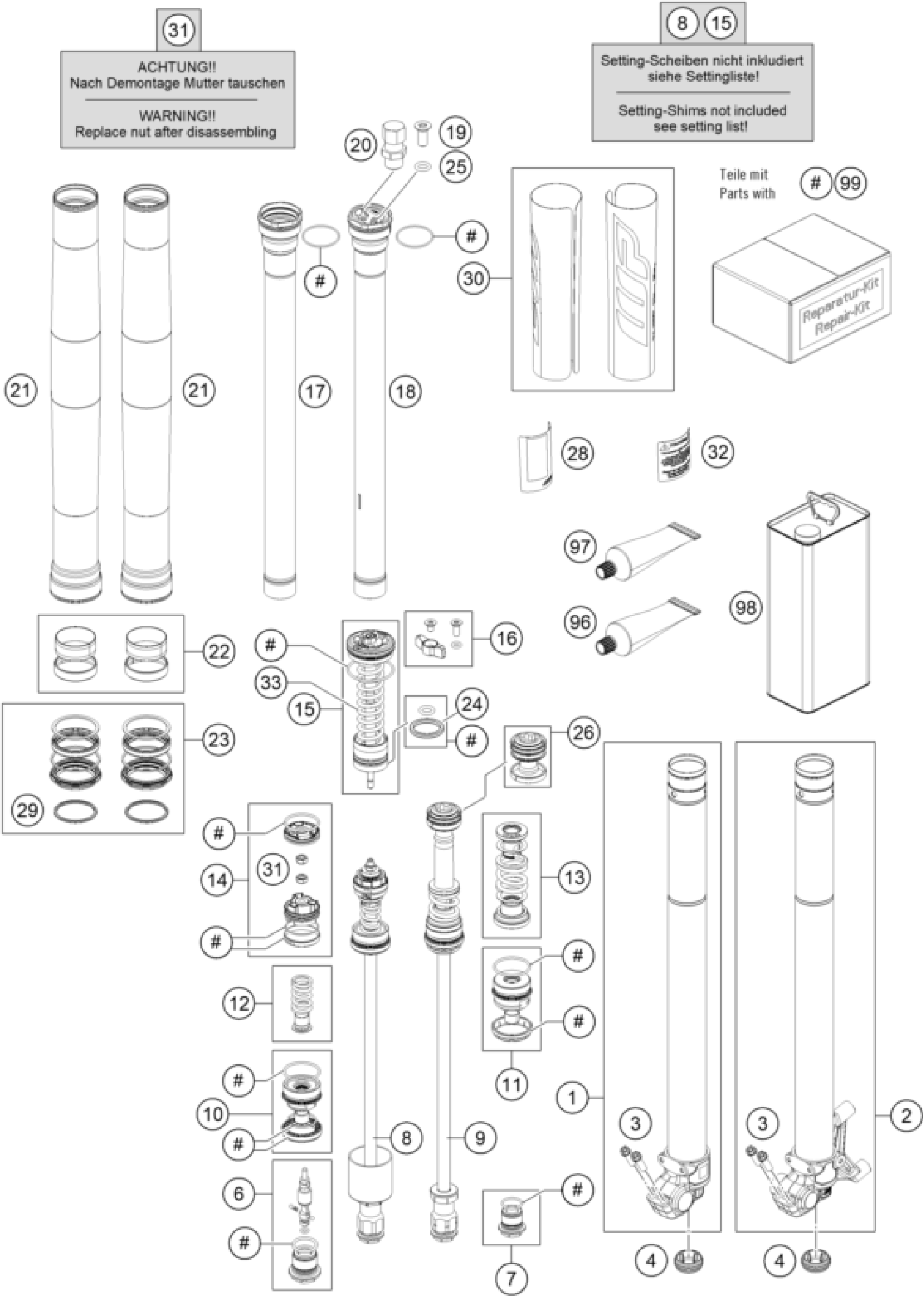

KTM 450 SMR 2023 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle clamp ri. With inner tube

48602224S

Unavailable

2

Axle clamp le. With inner tube

48602223S

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

4

Rubber cap 26,4x11

48600692

Unavailable

6

Adjustment screw slot M20x1 cp

48601484S

Unavailable

7

HH collar screw M20x1x18 cpl.

48601533S

Unavailable

8

piston rod right cpl.

S501200016S0100

Unavailable

10

Screw sleeve M35,5 x 0.8 cpl.

48601462S2

Unavailable

11

Screw sleeve M35,5x0,8 cpl.

48602138S2

Unavailable

12

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

13

Spring (22) 60-30 rebound cpl.

48601820S

Unavailable

14

Repair kit piston air fork

RP10035T

Unavailable

15

Basevalve cpl.

48602049S4

Unavailable

16

adjuster kit screw cap compres

RP10029T

Unavailable

17

screw cap M51x1,5 cpl.

48602048S1

Unavailable

18

screw cap M51x1,5 cpl.

48602047S2

Unavailable

19

ISA countersunk head screw M4x

00700007

Unavailable

20

Schrader valve M8x1 cmpl.

48601494S

Unavailable

21

fork outer tube 49.13x577 dt54

48602096

Unavailable

22

Guide bushing set fork 48mm

R14047

Unavailable

23

Sealkit 48mm SKF black

RP10012

Unavailable

24

X-ring 26,57x3,53 FKM80

04100002

Unavailable

25

O-ring 4x1,5 NBR70

50180222

Unavailable

26

Piston 33,6x35,4 cpl.

48602135S

Unavailable

28

Model sticker

52000332

Unavailable

29

Stroke indicator 48mm red

48602007

Unavailable

30

Sticker set XACT 5 AER CC 182.

52000235SET

Unavailable

31

Nut M6 h5,4 SW10

48602128

Unavailable

96

Fuchs grease IPR (250g)

T14034

Unavailable

97

special grease AER Fork 400g

00062010053

Unavailable

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

99

Gasket kit air fork

RP10042T

Unavailable

32

Sticker warning 40x40

52000328

Unavailable

9

piston rod let cpl.

48602228S

Unavailable

33

Spring (19,5) 8-114

48601727

Unavailable

33

Spring (19,5) 12-114

48601588

Unavailable

33

Spring (19,5) 14-114

48602157

Unavailable

33

Spring (19,5) 16-114

48601258

Unavailable

33

Spring (19,5) 18-114 reservoir

48601851

Unavailable

33

Spring (19,5) 20-114

48601749

Unavailable
