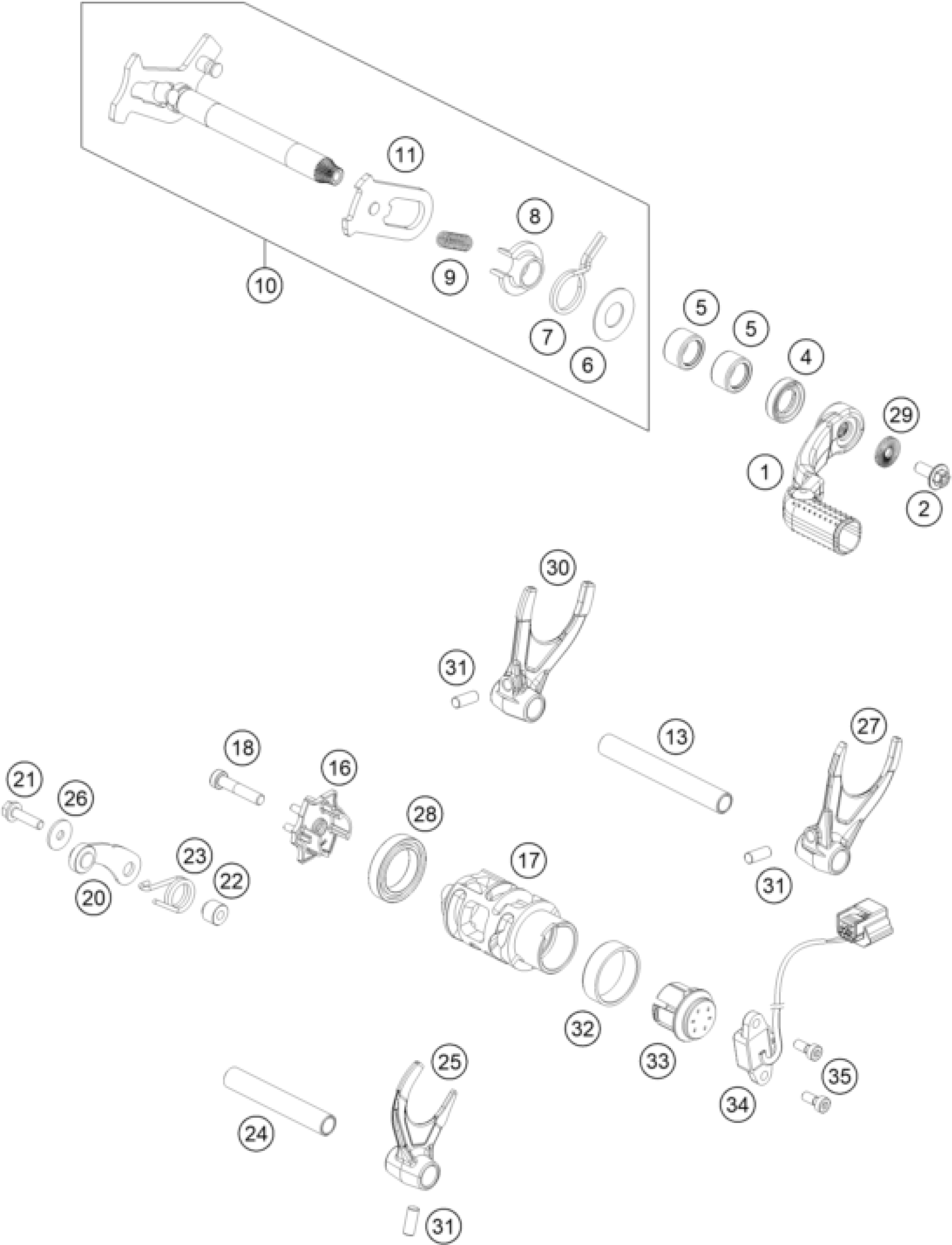

KTM 450 SMR 2021 SHIFTING MECHANISM Diagram

SHIFT LEVER CPL.

79434031100

$99.38

HH collar screw M6x15 TX30

0024060156S

$2.05

radial shaft seal 14x24x6 B

0760142460

$9.25

needle sleeve HK 1412 14x20x12

54632095000

$7.00

STOP DISK 14X30X1

54634050000

$2.05

RETURN SPRING 2,2MM '95

54634014100

$6.63

SPRING GUIDE

54634020000

$6.44

TENSIONING SPRING 0,8MM

56534013100

$1.49

Shift shaft cpl. rdy-to-inst

79434005233

$63.85

SLIDING PLATE CPL.

79234008144

$35.52

GEAR SHIFT RAIL 11,8X91,1MM

79434020000

$14.02

Detent cmpl.

79434015100

$33.18

Selector drum 5 gear

79434112200

$87.79

Cap head screw M6x30-8.8

0012060303S

$1.49

LOCKING LEVER CPL.

78134024044

$14.58

HH collar screw M5x25 TX30

0025050256S

$1.49

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

ARRESTING LEVER SPRING 03

60034023000

$2.05

GEAR SHIFT RAIL 11,8X74,5MM

79434019000

$11.77

SHIFTING FORK 5TH-6TH GEAR

79434001100

$79.28

washer DIN 9021 A - 5.3

0021050003

$1.49

SHIFTING FORK 2ND-4TH GEAR

79434002100

$79.47

BALL BEARING 61805 C3

0625618050

$43.94

PAIR NORDLOCK WASHER M6

50233041500

$4.11

SHIFTING FORK 1ST-3RD GEAR

79434003100

$79.00

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

FRICTION BEARING CONTROLLER

79234012010

$22.99

Magnet bracket cmpl.

79234012020

$58.71

gear position sensor

79211023000

$121.35

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05
