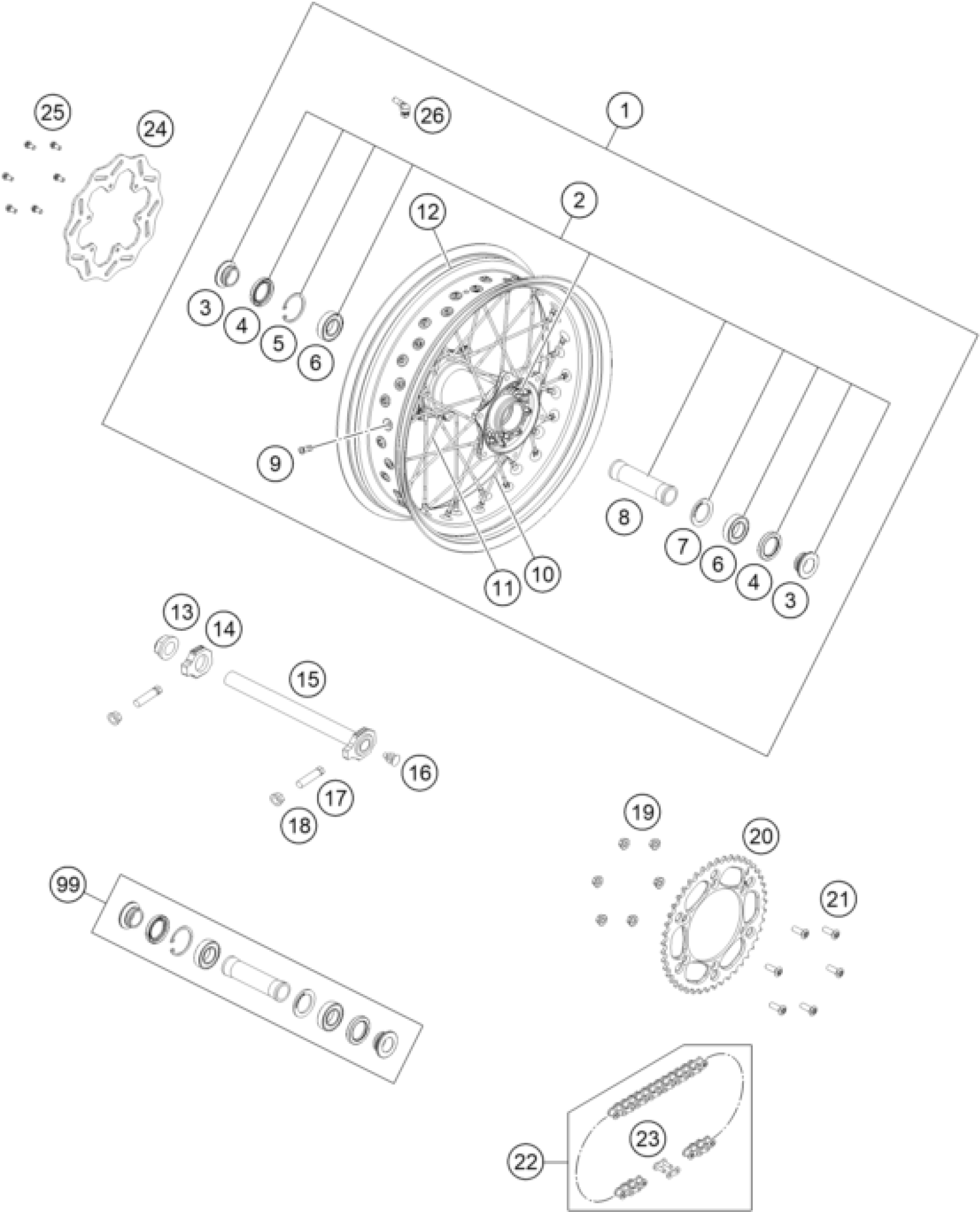

KTM 450 SMR 2021 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 5X17''

2611000104430

Unavailable

2

REAR WHEEL HUB CPL. 2013

78010010244

Unavailable

3

DISTANCE BUSHING REAR WHEEL

77710016000

Unavailable

4

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

7

DISTANCE RING

77710015000

Unavailable

8

BEARING DISTANCE TUBE 121,5MM

77710011000

Unavailable

9

SPOKE NIPPLE M4,5X0,75

26110072000

Unavailable

10

SPOKE M4,5X159 - 17''

26110071159

Unavailable

11

SPOKE M4,5X154 - 17''

26110071154

Unavailable

12

RIM REAR 5X17'' BLACK

2611007000030

Unavailable

13

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

14

CHAIN TENSIONER R/S

77710084000

Unavailable

15

WHEEL SPINDLE CPL. '13

77710085044

Unavailable

16

Plug SFL16

50210086000

Unavailable

17

screw M10x1.25x50 WS10

50304040100

Unavailable

18

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

19

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

20

CORONA 45 T

7771015104501

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

CHAIN 5/8X1/4'' MX

50310165118

Unavailable

23

Connecting link for 5031016511

50310166000

Unavailable

24

BRAKE DISC REAR D=220MM

25010060000

Unavailable

25

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

26

valve front

26109076000

Unavailable

99

REAR WHEEL REP. KIT

77710015010

Unavailable
