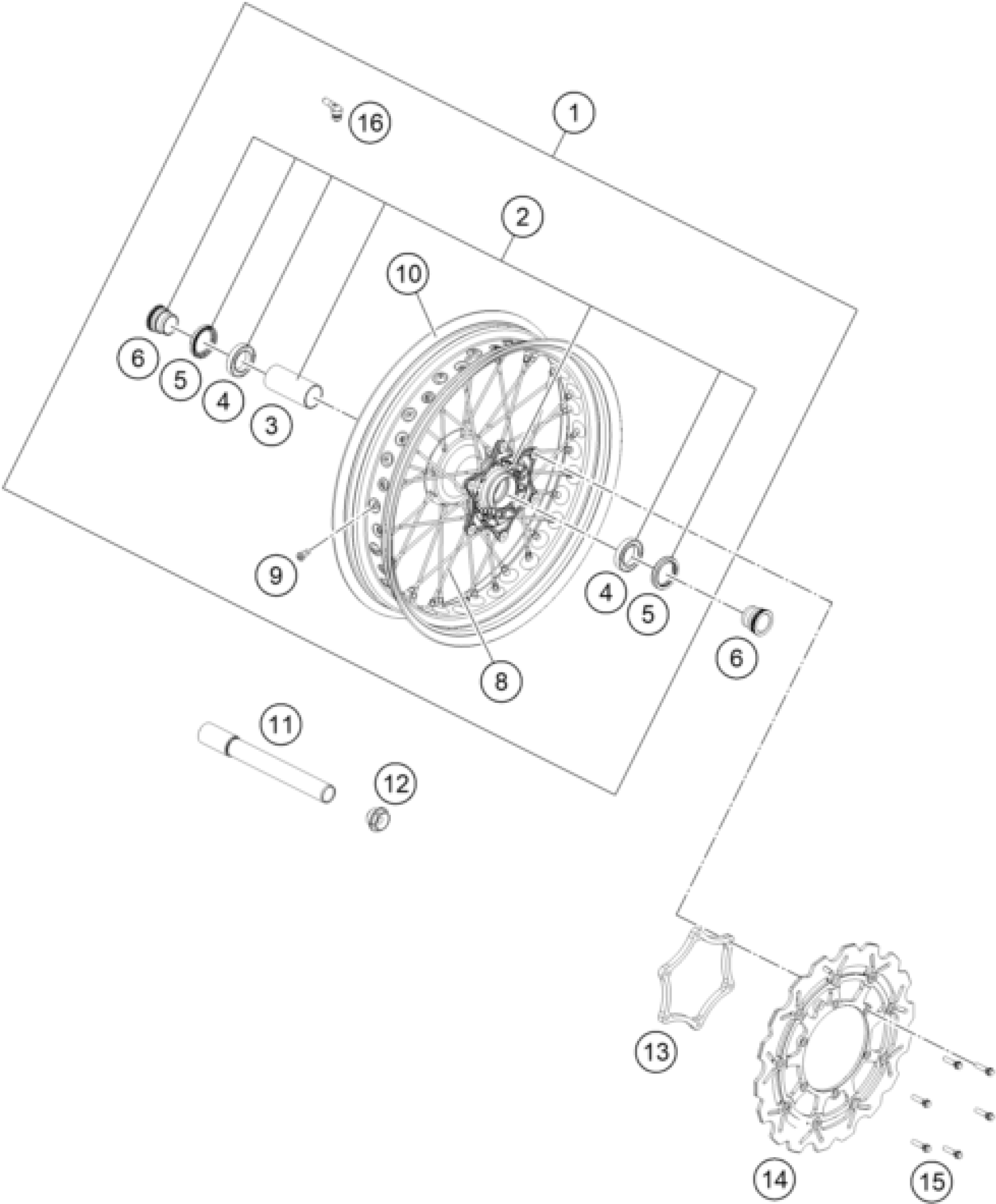

KTM 450 SMR 2021 FRONT WHEEL Diagram

#

Description
Price

1

Front wheel cmpl. 3.5x16.5

2610900124430

Unavailable

2

FRONTHUB CPL.

25009010244

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

6

SPACER BUSHING F. FR. WHEEL

77709012000

Unavailable

8

SPKE M4,5X146 - 16,5''

26109071146

Unavailable

9

SPOKE NIPPLE M4,5X0,75

26109072000

Unavailable

10

RIM FRONT 3,50X16,5'' BLACK

2610907000030

Unavailable

11

Wheel spindle, front, cmpl.

26209081033

Unavailable

12

AXLESCREW M20X1.5 SW17

70009082000

Unavailable

13

BRAKE DISC SUPPORT 8.5 MM

58409161000

Unavailable

14

BRAKE DISC FRONT D=310MM

25009260000

Unavailable

15

SPECIAL SCREW M6X26 SW=8 10.9

59009062026

Unavailable

16

valve front

26109076000

Unavailable
