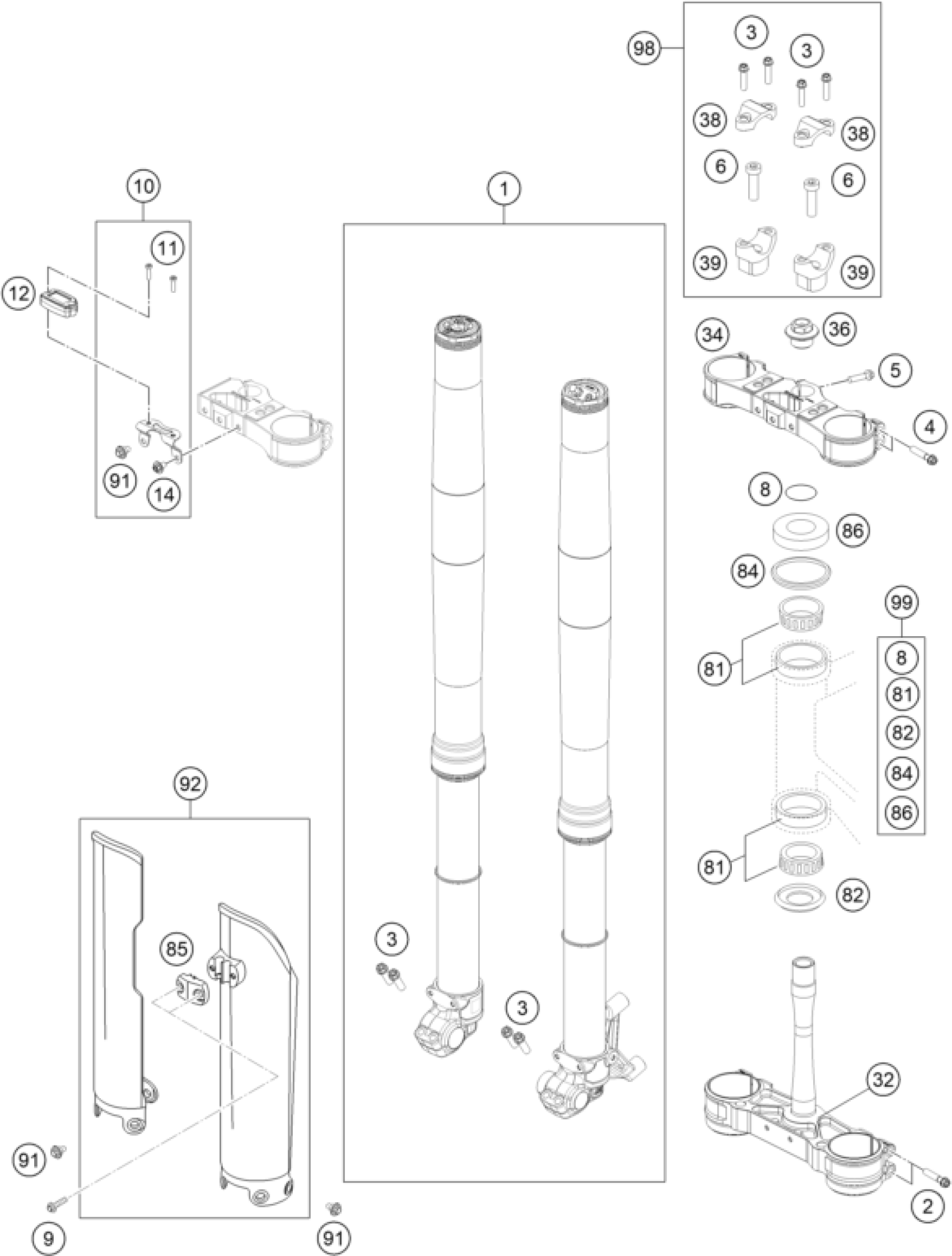

KTM 450 SMR 2021 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork HQV FS 450 2021

0262C108U406000

$2,436.67

2

HH collar screw M8x50 TX40

0025080506

$3.08

3

HH collar screw M8x25

0025080256

$2.05

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

HOURMETER BRACKET TTV

78112920044

$9.34

11

AH SCREW DIN0912-M 4X16

0912040163

$2.05

12

HOURMETER

81312920050

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

32

LOWER TRIPLE CLAMP CPL. BLACK

2610103201630

$688.53

34

TOP TRIPLE CLAMP SMR X=16MM

7890103411630

$276.47

36

AXLESCREW M20X1.5 SW17

70009082000

$9.44

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

39

HANDLEB.SUPP. D=28MM H=47MM 05

59401039047

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

Clamp for brake hose

77701085100C1

$2.05

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Fork protection kit SX/XC 202

77701094100C1D

$72.17

98

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
