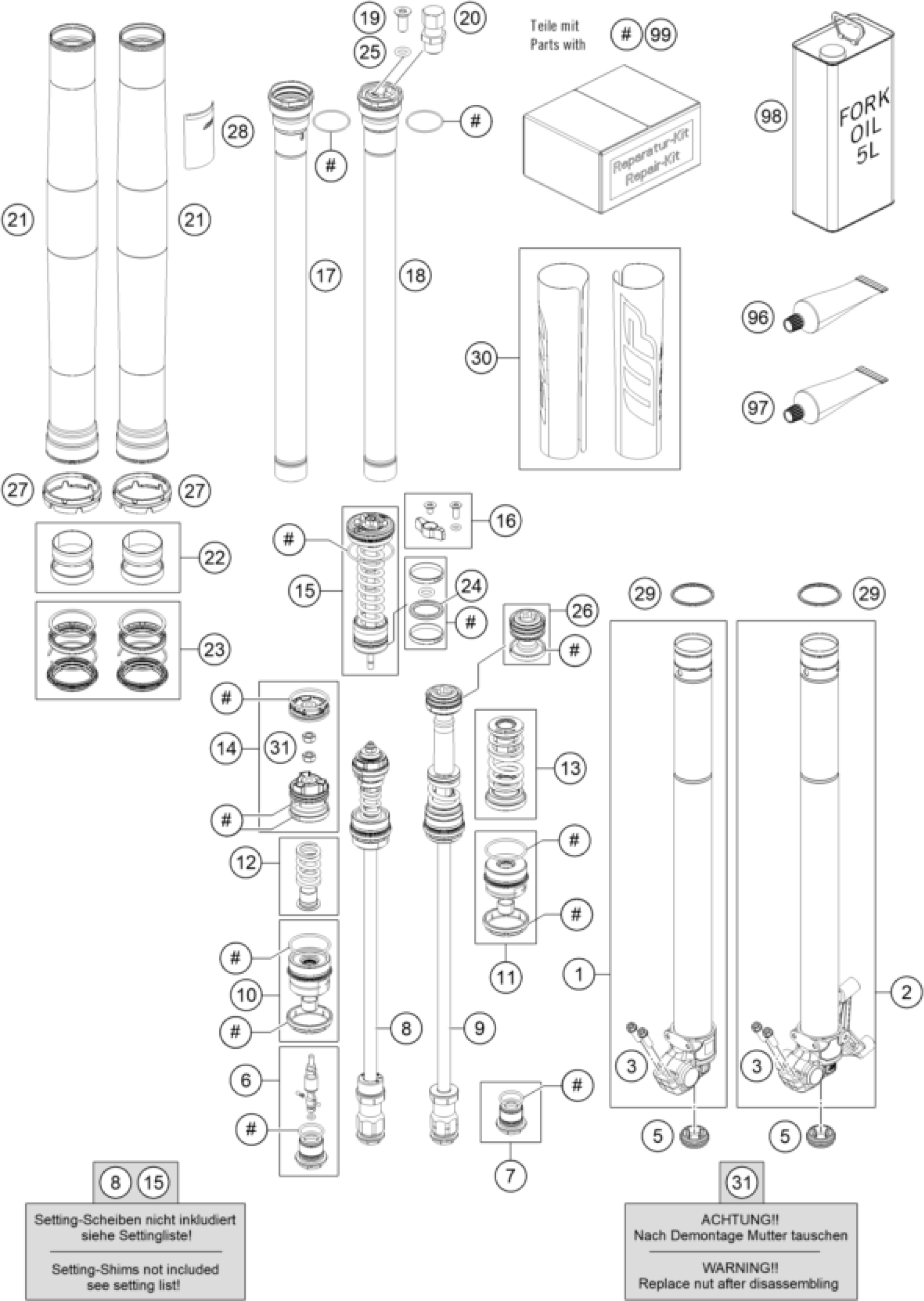

KTM 450 SMR 2021 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

HH collar screw M8x25

0025080256

$2.05

5

Rubber cap 26,4x11

48600692

$3.08

6

Adjustment screw slot M20x1 cp

48601484S

$42.35

7

HH collar screw M20x1x18 cpl.

48601533S

$21.31

10

Screw sleeve M35,5x0,8 cpl

48602131S2

$54.03

11

Screw sleeve M35,5x0,8 cpl.

48602138S2

$47.86

12

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

13

Spring (22) 60-30 rebound cpl.

48601820S

$25.89

14

Repair kit piston air fork

RP10035T

$57.40

15

Basevalve cpl.

48602049S2

$159.78

16

adjuster kit screw cap compres

RP10029

$7.38

17

screw cap M51x1,5 cpl.

48602048S1

$227.20

18

screw cap M51x1,5 cpl.

48602047S2

$270.77

19

ISA countersunk head screw M4x

00700007

$1.49

20

Schrader valve M8x1 cmpl.

48601494S

$24.98

21

fork outer tube 49.13x577 dt54

48602096

$257.40

22

Guide bushing set fork 48mm

R14047

$25.70

23

Sealkit 48mm SKF black

RP10012

$66.75

24

X-ring 26,57x3,53 FKM80

04100002

$5.23

25

O-ring 4x1,5 NBR70

50180222

$1.49

26

Piston 33,6x35,4 cpl.

48602135S

$51.98

28

Sticker warning

52000290

$62.26

29

Stroke indicator 48mm red

48602007

$4.11

30

Sticker set XACT 5 AER CC 182.

52000235SET

$37.77

96

Fuchs grease IPR (250g)

T14034

$34.59

97

special grease AER Fork 400g

00062010053

$84.61

98

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

99

Gasket kit air fork

RP10034T

$19.63

31

Nut M6 h5,4 SW10

48602128

$1.49

2

Axle clamp le. With inner tube

48602223S

$415.32

1

Axle clamp ri. With inner tube

48602224S

$397.93

8

piston rod right cpl.

48602227S

$308.35

9

piston rod let cpl.

48602228S

$296.20
