Description

Price

1

Radial master Cyl. PR15/18

78913101000

$360.43

2

BRAKE FLUID RESERV. WHITE CPL.

61013009202

$46.55

3

SCREW + NUT F. RESERVOIR

61013009203

$17.10

4

SCREW RET.PANEL-RESERVOIR

61013013050

$9.06

5

RUBBER BUSH 05

61013013000

$3.08

6

RET.PANEL FLUID RES. FRONT 05

61013009001

$9.34

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

8

NUT FOR RESERVOIR

61013009004

$3.08

9

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

10

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

11

HAND BRAKE LEVER CPL. BLACK

6251300214430

$123.60

12

RUBBER CUP 05

61013008000

$7.66

13

LEVER SCREW CPL. 05

61013006000

$12.43

14

BLEEDER SCREW WITH CAP

60013020000

$7.38

16

ANGLE PIECE

54513155000

$14.58

17

CLAMP CPL. BLACK

5031300500030

Unavailable

20

Brake fluid DOT5.1 0,25L

00062030000

$12.52

15

banjo bolt M10x1x19 black

54813020100

$9.90

18

BRAKE PIPE FRONT

78913012000

$124.63

19

sealing ring DIN 7603 10x14x1

0603100141

$2.05

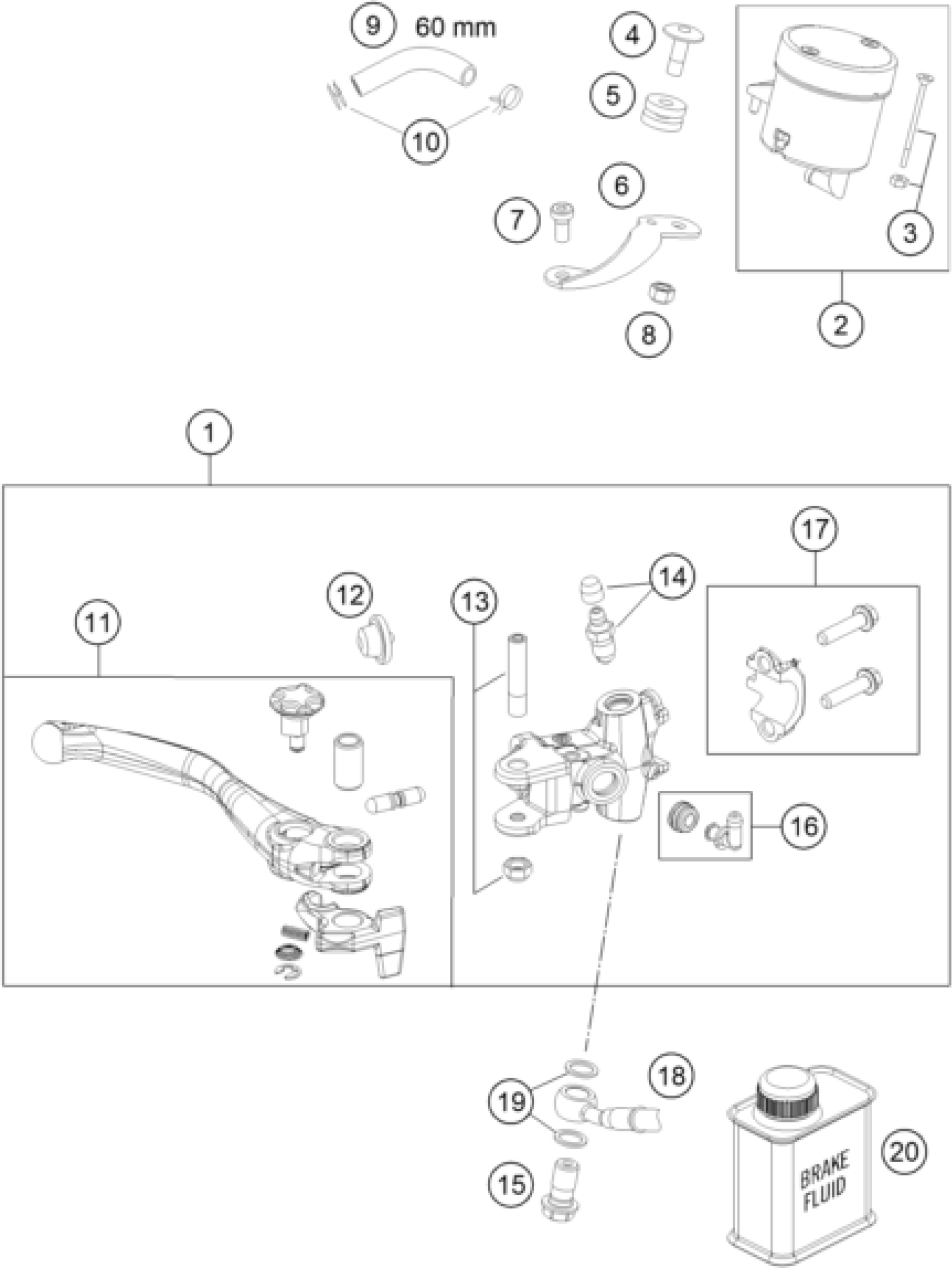

KTM 450 SMR 2021 FRONT BRAKE CONTROL Diagram

Radial master Cyl. PR15/18

BRAKE FLUID RESERV. WHITE CPL.

SCREW + NUT F. RESERVOIR

SCREW RET.PANEL-RESERVOIR

RUBBER BUSH 05

RET.PANEL FLUID RES. FRONT 05

SCREW RET.PANEL-BRAKE CYLINDER

NUT FOR RESERVOIR

HOSE FOR RESERVOIR 6X1,5

YDNAC-clamp 10101 (10.4MM)

HAND BRAKE LEVER CPL. BLACK

RUBBER CUP 05

LEVER SCREW CPL. 05

BLEEDER SCREW WITH CAP

ANGLE PIECE

CLAMP CPL. BLACK

Brake fluid DOT5.1 0,25L

banjo bolt M10x1x19 black

BRAKE PIPE FRONT

sealing ring DIN 7603 10x14x1
