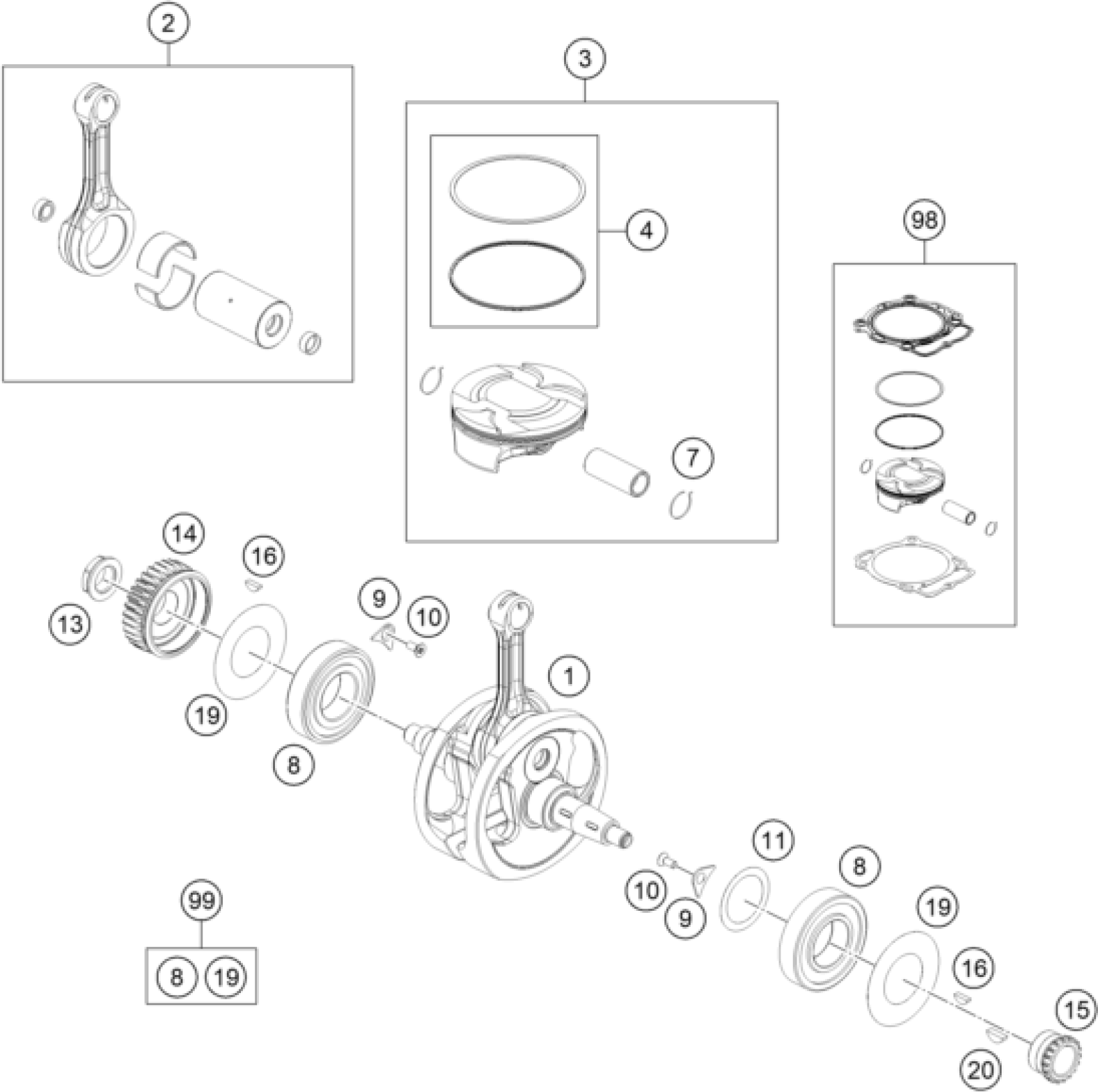

KTM 450 SMR 2021 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cmpl.

79530018000

$1,068.79

2

Connecting rod repair kit

79530015044

$539.58

3

Piston I kpl.

79430107200 I

$503.87

3

Piston II kpl.

79430107200 II

$503.87

4

PISTON RING KIT

79430130044

Unavailable

7

CIRCLIP

79430174000

$14.10

8

CYLINDER ROLLER BEARING NJ207

79430082000

$91.06

9

RETAINING PLATE F. CS BEARING

75030085000

$1.49

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

$10.09

14

primary gear 31t

79432023231

$90.59

15

Timing gear

78036014300

$40.66

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

19

BEARING SEAL

79430084000

$7.00

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

98

Piston Kit Gr. I MX 450

00050000271

Unavailable

98

Piston Kit Gr. II MX 450

00050000272

Unavailable

99

CRANKSHAFT REP.KIT 450 SX-F 15

00050002315

Unavailable
