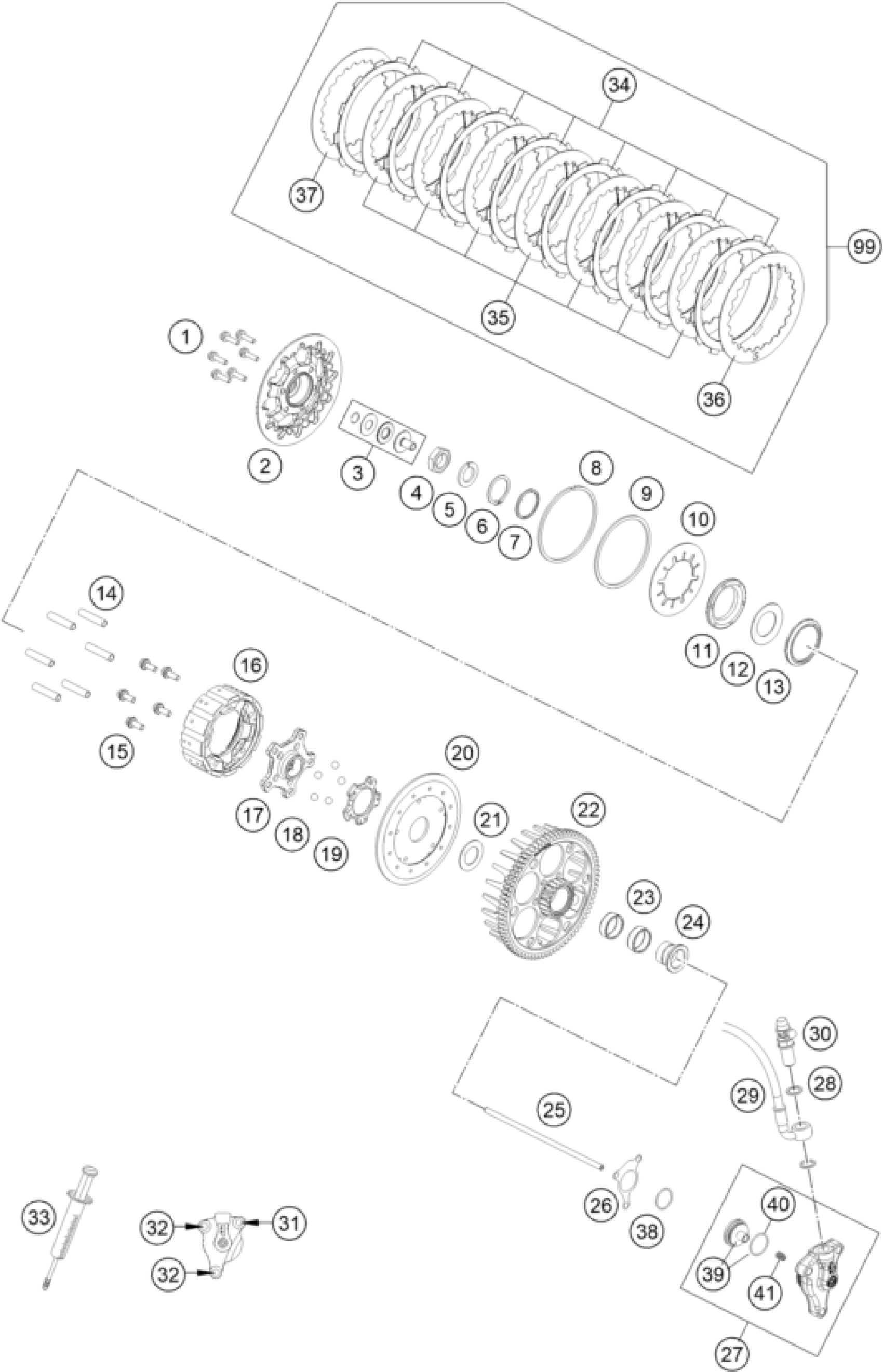

KTM 450 SMR 2021 CLUTCH Diagram

#

Description
Price

1

Distance screw M5X19.5

79532186000

Unavailable

2

Pressure plate

79532103000

Unavailable

3

PRESSURE PIECE CPL.

78132057144

Unavailable

4

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

5

LOCK WASHER VSK 18

58132072000

Unavailable

6

Circlip

0471300152

Unavailable

7

Distance ring 30X36X2

79532183000

Unavailable

8

Circlip

0417900250

Unavailable

9

Locking ring 88

79532185000

Unavailable

10

Main spring 1235N

79532105000

Unavailable

11

Clamp hub 5mm

79532102050

Unavailable

12

Torque limiter spring 1100N

79532182000

Unavailable

13

Release ring

79532181000

Unavailable

14

DRIVING SLEEVE D=7,95 L=38

77232004000

Unavailable

15

Bolt M6X14

79532107000

Unavailable

16

Inner hub

79532102010

Unavailable

17

Hub carrier

79532102020

Unavailable

18

Ball

79532168000

Unavailable

19

Ramp insert 30°

79532102030

Unavailable

20

Back plate insert

79532102040

Unavailable

21

Thrust washer

79532120000

Unavailable

22

Clutch basket

79432101076

Unavailable

23

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

24

COLLARSLEEVE

78132015100

Unavailable

25

PUSH ROD

79432054000

Unavailable

26

GASKET F. OUTPUT CYLINDER

59032065100

Unavailable

27

OUTPUT CYLINDER CPL. 06

54832061044

Unavailable

29

CLUTCH PIPE

78132063000

Unavailable

30

BLEEDER SCREW WITH CAP

54732064000

Unavailable

31

HH collar screw M6x30 TX30

0025060306

Unavailable

32

HH collar screw M6x20 TX30

0025060206

Unavailable

33

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

34

Lining disc 1,95mm

79532011000

Unavailable

35

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

36

INTERMEDIATE DISC 1MM

78932010000

Unavailable

37

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

38

O-ring 30x1.5 NBR 70

0770300015

Unavailable

39

PISTON CPL.

54832066000

Unavailable

40

O-RING

54832067000

Unavailable

99

Clutch plate pack

79532010033

Unavailable

28

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

41

PRESSURE SPRING

54832069000

Unavailable
