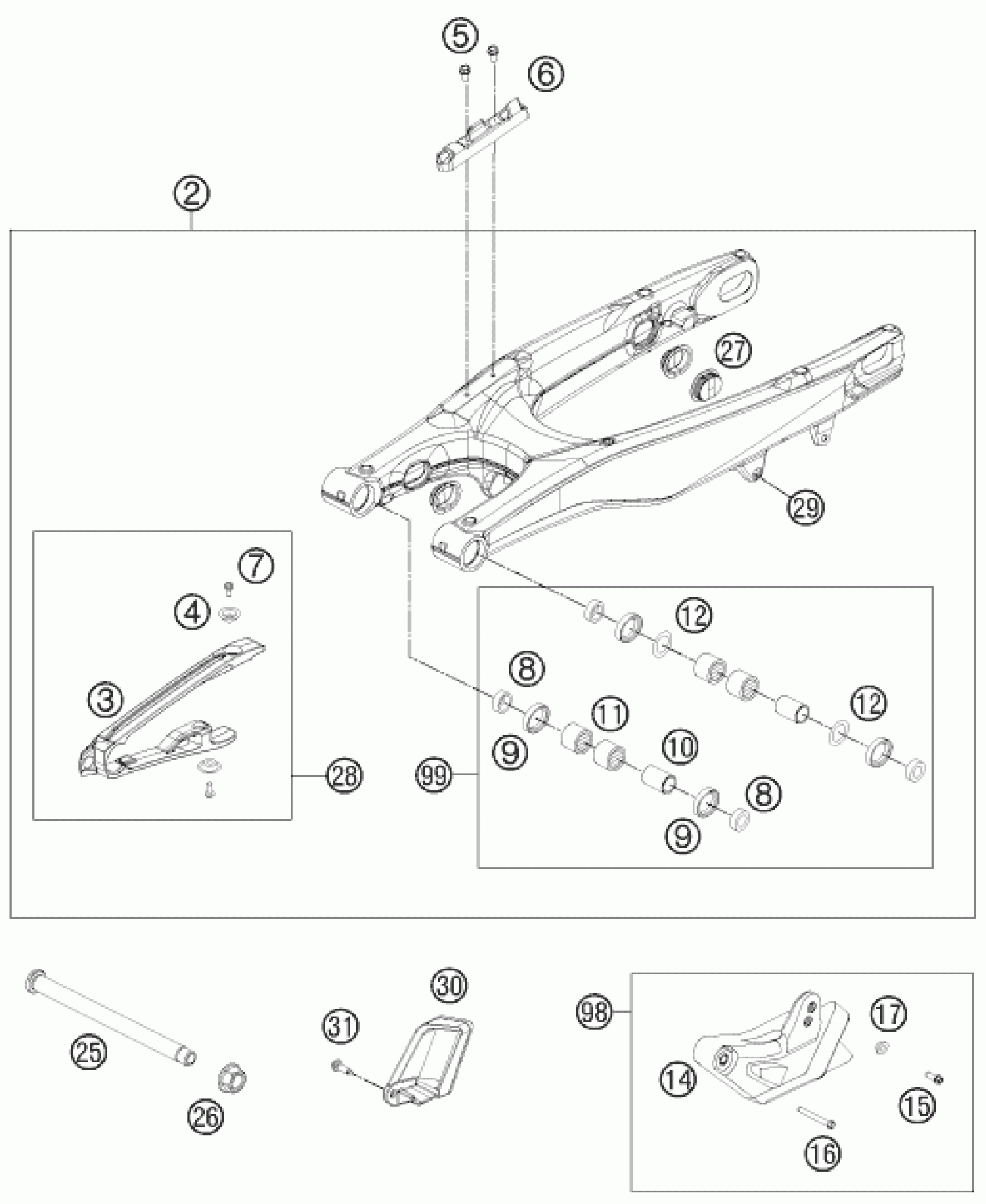

KTM 450 SMR 2014 SWING ARM Diagram

#

Description
Price

2

SWING ARM CPL. 2014

78904030244

$706.76

3

CHAIN SLIDING PROTECTION

77204066000

$22.34

4

chain slider bushing

77304066050

$1.49

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE LINE GUIDE 08

76504042000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

10

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

11

Needle bushing HK2212V 22/28/1

0618222812

$9.81

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

CHAIN GUIDE REAR CPL. SX 2013

77704070000

$56.56

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

16

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

17

BUSH. F. CHAIN FAIL. PROT. 07

77304070130

$3.08

25

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

28

Chain guard cpl.

77204066010

$23.37

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

30

CHAIN STOP GUARD SMR 12

77304260100

$5.88

31

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

98

CHAIN GUIDE KIT REAR SX-F 14

77704070210

$54.88

99

SWINGARM REP. KIT

54804230010

Unavailable
