REAR WHEEL

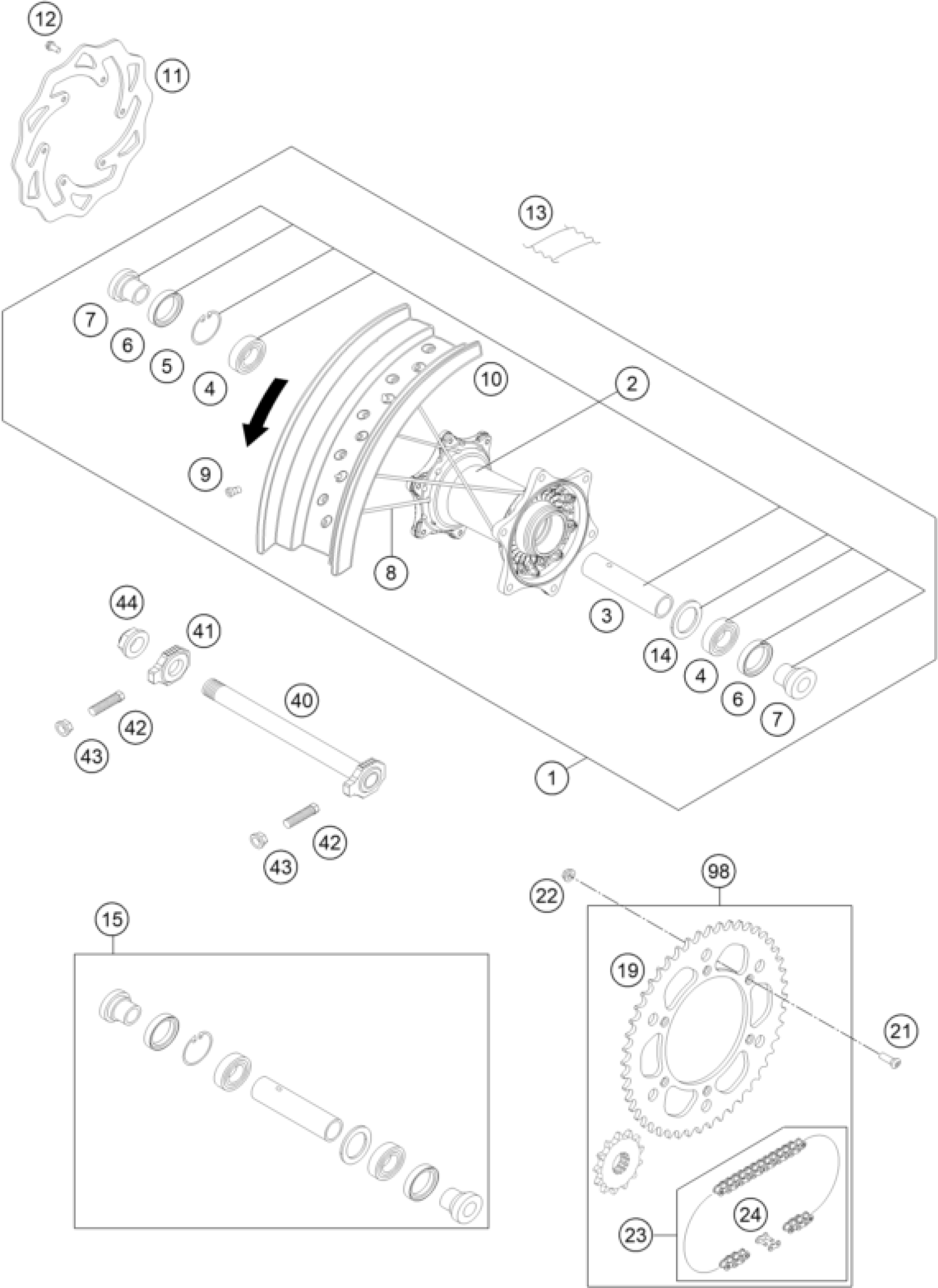

KTM 450 SMR 2014 REAR WHEEL Diagram
#
98
DRIVETRAIN KIT SMR 14T/48T
00050002038
Unavailable
1
REAR WHEEL CPL. 5X17'' SMR 13
7891000104430
Unavailable
2
REAR WHEEL HUB CPL. 2013
78010010244
Unavailable
3
BEARING DISTANCE TUBE 121,5MM
77710011000
Unavailable
4
Grooved ball bear.6005 DDU2CG2
0625060058
Unavailable
5
CIRCLIP DIN0472-47X1,75
0472047175
Unavailable
6
Radial shaft seal 32X47X7 BSL
0760324771
Unavailable
7
DISTANCE BUSHING REAR WHEEL
77710016000
Unavailable
8
SPOKE M5X174-13,5G 17''
58309071100
Unavailable
9
SPOKE NIPPLE M5-TA 8X21MM
58309072100
Unavailable
14
DISTANCE RING
77710015000
Unavailable
10
REAR RIM 5,0X17''
5941007000030
Unavailable
11
BRAKE DISC REAR 220
77310060000
Unavailable
12
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
Unavailable
13
rim tape 17"
58309073000
Unavailable
15
REAR WHEEL REP. KIT
77710015010
Unavailable
19
REAR SPROCKET 38-T
58310051038
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
19
REAR SPROCKET 48-T
58310151048
Unavailable
19
REAR SPROCKET 49-T
58310151049
Unavailable
19
REAR SPROCKET 50-T
58310151050
Unavailable
19
REAR SPROCKET 51-T
58310151051
Unavailable
19
REAR SPROCKET 52-T
58310151052
Unavailable
21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
Unavailable
22
Hex. nut DIN EN 1661 M8 WS13
06923080003
Unavailable
23
CHAIN 5/8X1/4'' MX
50310165118
Unavailable
24
Connecting link for 5031016511
50310166000
Unavailable
40
WHEEL SPINDLE CPL. '13
77710085044
Unavailable
41
CHAIN TENSIONER R/S
77710084000
Unavailable
42
screw M10x1.25x50 WS10
50304040100
Unavailable
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
Unavailable
44
Collar nut M25X1.5 WS=32 05
61010086000
Unavailable
98
DRIVETRAIN KIT 450 SX-F 14/50T
00050002020
Unavailable
98
DRIVETRAIN KIT SX-F 14T/52T
00050002009
Unavailable
