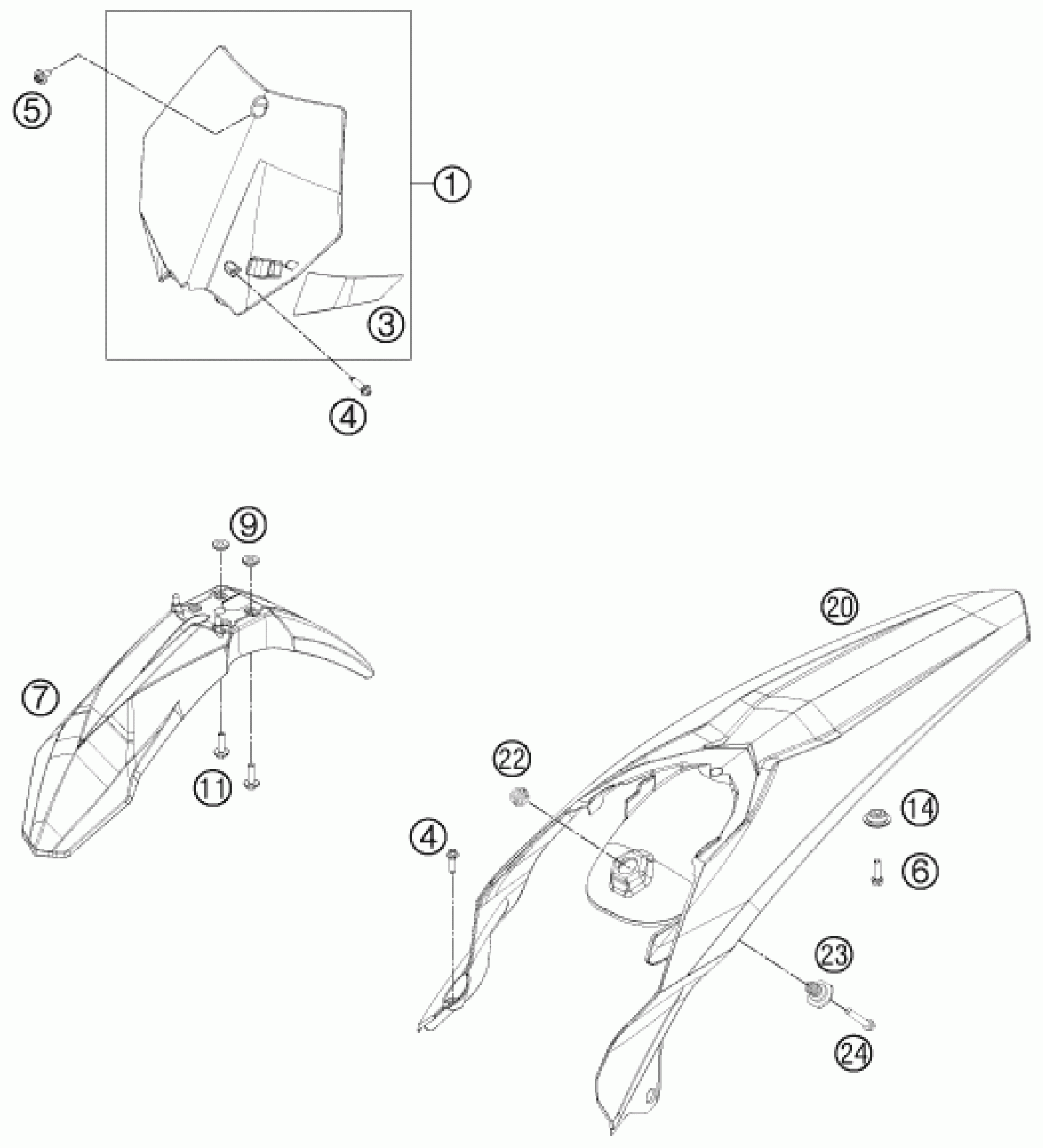

KTM 450 SMR 2014 MASK, FENDERS Diagram

#

Description
Price

1

START NUMBER PLATE CPL. WHITE

7730800704428

$26.64

3

BRAKE HOSE GUIDE BLACK 08

7730802200030

$7.47

4

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

6

HH collar screw M6x16 TX30

0025060166

$3.08

7

FENDER FRONT SMR 08

7730821000004

$28.21

9

SPACER BUSHING 03

54808020000

$4.11

11

HH collar screw M6x20 TX30

0024060206

$3.08

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

20

REARPART ORANGE SX 11

7720801300004

$63.90

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08
