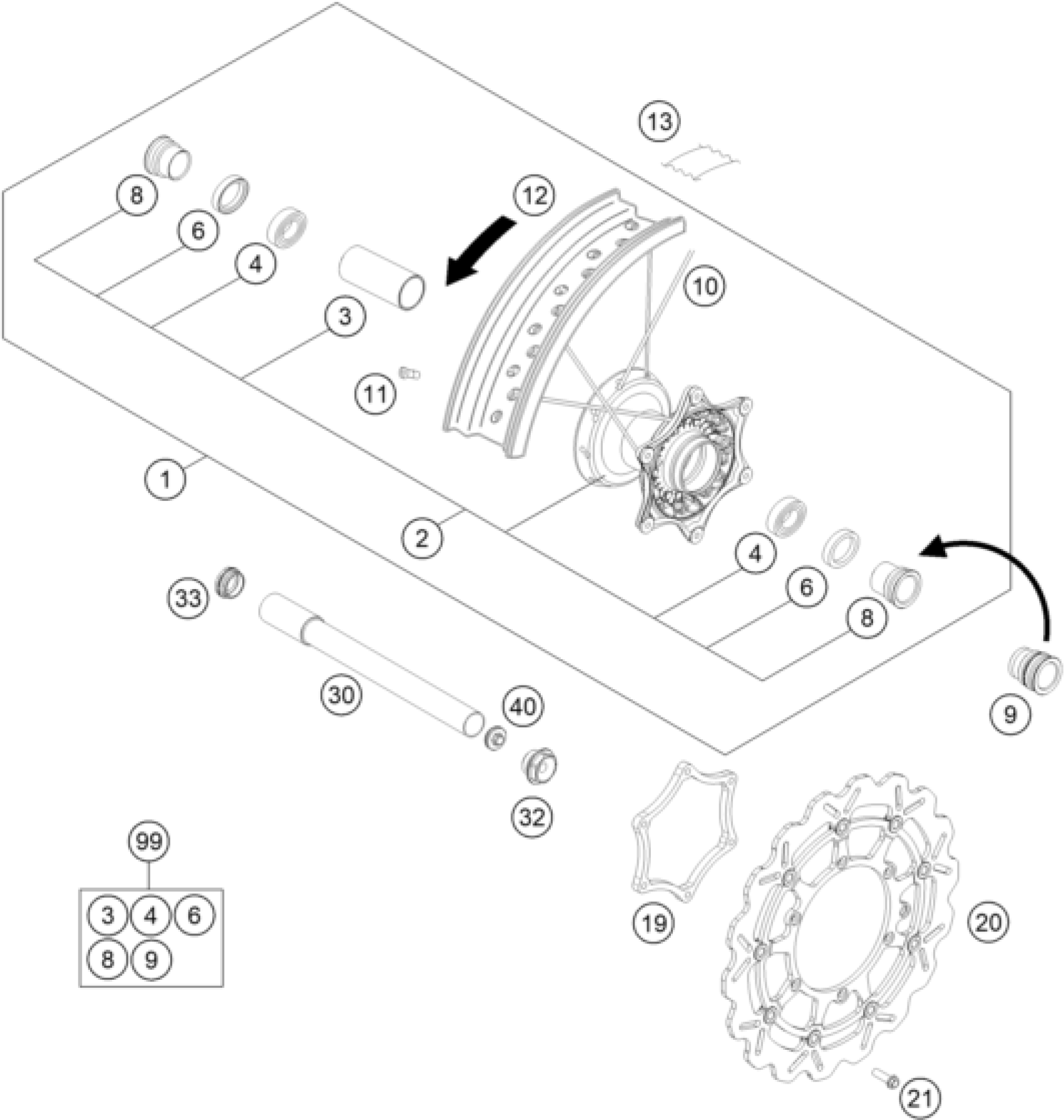

KTM 450 SMR 2014 FRONT WHEEL Diagram

#

Description
Price

9

SPACER BUSHING F. FR. WHEEL 14

78909012000

Unavailable

99

FRONT WHEEL REP.KIT 450 SMR 14

78009015010

Unavailable

1

FRONT WHEEL 3,5X16,5 SMR 08

7730920104430

Unavailable

2

FRONT WHEEL HUB CPL.

78009010144

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL 08

78009012000

Unavailable

10

SPOKE M4,5X164-16,5'' 08

77309271164

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

Unavailable

12

FRONT RIM 3,5X16,5''

7730927000030

Unavailable

13

rim tape 17"

58309073000

Unavailable

20

WAVE BRAKE DISC FRONT 2005

58609060000

Unavailable

21

SPECIAL SCREW M6X26 SW=8 10.9

59009062026

Unavailable

30

WHEEL SPIN.FR. D=26MM 14

78909081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

33

PLUG BUSHING WS=27 03

54809081050

Unavailable

40

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

19

BRAKE DISC SUPPORT 8.5 MM

58409161000

Unavailable
