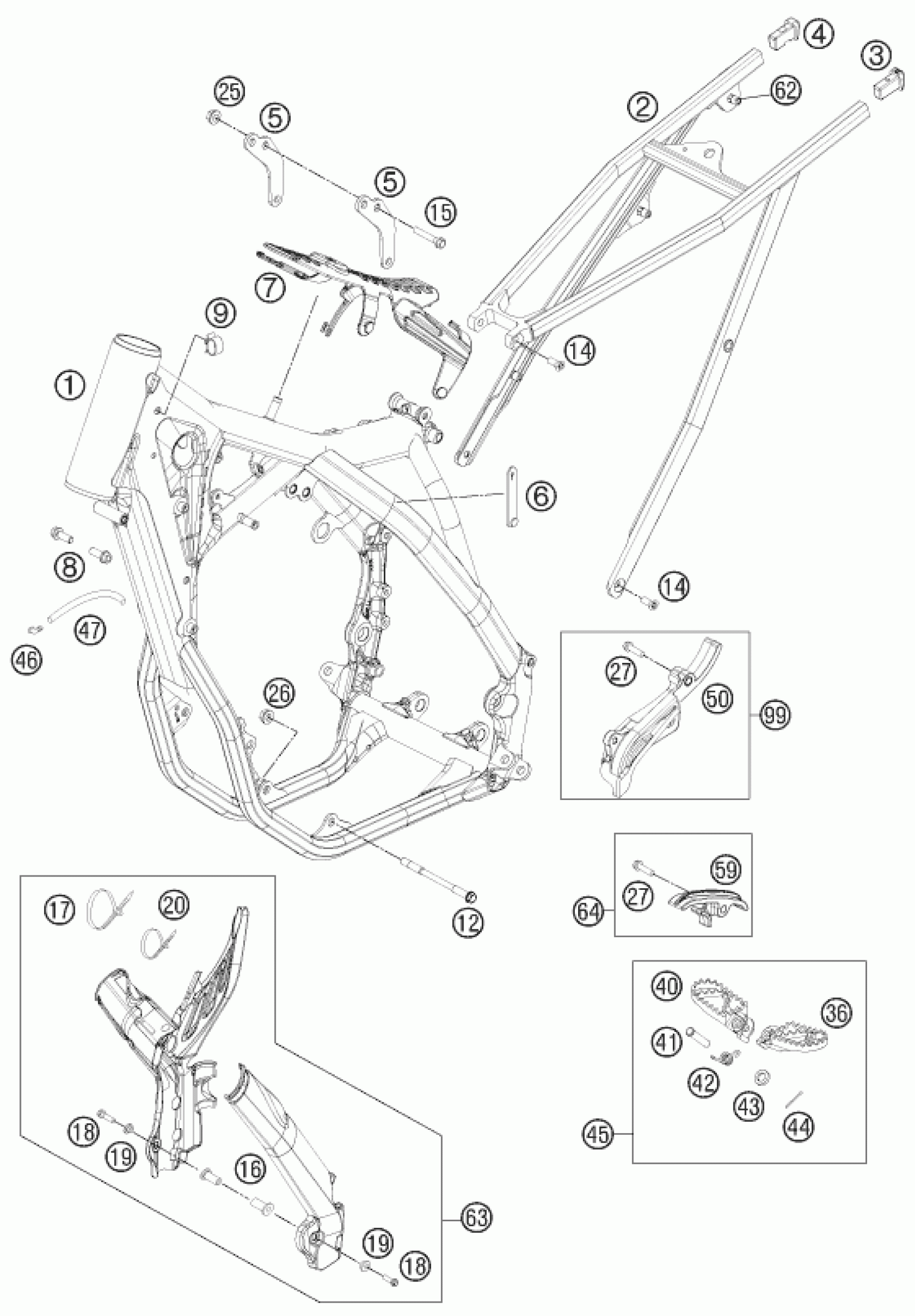

KTM 450 SMR 2014 FRAME Diagram

#

Description
Price

19

Bush f. frame protection 03

54803092060

$4.11

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

17

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH collar screw M8x30

0025080306

$3.08

7

TANK REST RUBBER

77207012000

$9.44

8

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

9

WIRING HOLDER 16MM

57013072100

$1.49

12

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

1

FRAME ANTRAZIT ''789M3''

78903001000BE

$1,476.92

2

SUB FRAME SX

77203002000

$391.48

3

SUB FRAME APPLICATION LEFT

78103002010

$22.43

4

SUB FRAME APPLICATION RIGHT

78103002020

$20.37

40

FOOTREST R/S

47103041000

$42.72

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

5

REINFORCING

78903013000

$7.00

6

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

15

HH COLLAR SCREW M8X44 WS13

56530079000S

$3.08

18

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1.49

25

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

36

FOOTREST L/S

47103040000

$43.84

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN 0094-3.2X25 NIRO

0094032250

$1.49

45

FOOTREST CPL. 14

47103040033

$110.13

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

CHAIN GUARD 450/500 EXC 12

78103096000

$15.51

59

CHAIN SLIDER LOWER PART CPL.

77203053000

$9.06

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

PLASTIC FRAME PROTECTION SET

77203094000

$51.98

64

CHAIN SLIDING KIT BELOW CPL.11

77203053010

$18.78

99

SPROCKET COVER KIT

78103096010

Unavailable
