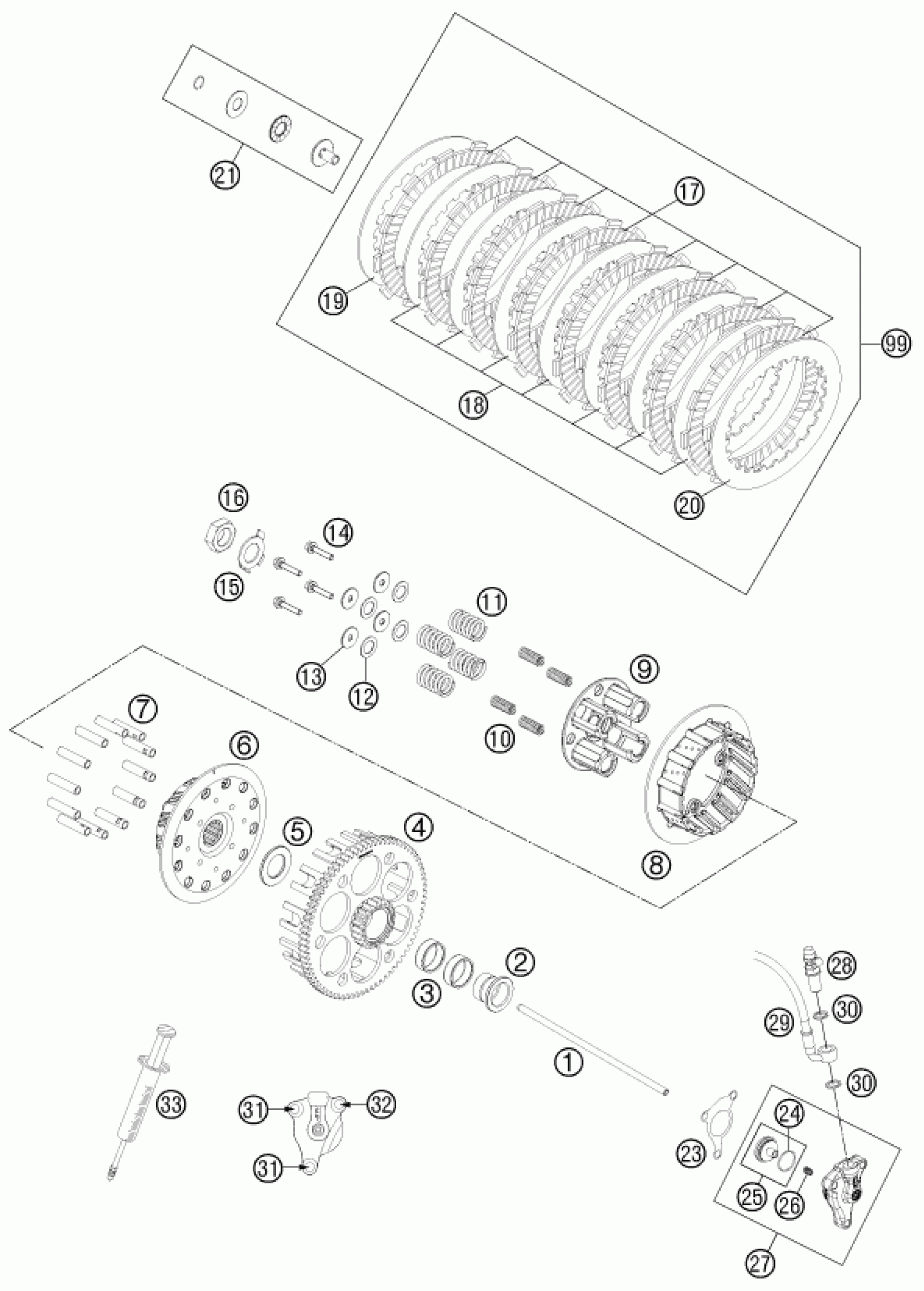

KTM 450 SMR 2014 CLUTCH Diagram

#

Description
Price

2

COLLARSLEEVE

78132015100

$26.92

4

CLUTCH CAGE

78132001076

$353.23

5

WASHER 21,8 X 37 X 3

77232009100

$8.59

6

HUB INSIDE

78932102010

Unavailable

7

SLEEVE

78932104000

Unavailable

9

PRESSURE PLATE

78932103000

Unavailable

13

WASHER 5,5X20X1,5

59032006100

$3.08

1

PUSH ROD

78132054100

$11.59

3

NEEDLE BEAR K 25X29X10

0405252910

$8.87

8

HUB OUTSIDE

78932102020

Unavailable

10

OPENING SPRING APTC 04

59032004200

$7.75

11

CLUTCH SPRING APTC 2004

59032005100

$4.14

12

WASHER 20 X 12,5 X 1

59032000101

Unavailable

12

WASHER 20 X 12,5 X 1,5

59032000102

Unavailable

14

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

15

TAB WASHER

78132018000

$5.88

16

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

17

LINING DISC 2MM 04

59032011100

$22.43

18

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

19

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

20

INTERMEDIATE DISC 1MM

78932010000

$12.05

21

PRESSURE PIECE CPL.

78132057044

$30.75

23

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

24

O-RING

54832067000

$3.08

25

PISTON CPL.

54832066000

$68.43

26

PRESSURE SPRING

54832069000

$12.05

27

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

28

BLEEDER SCREW CPL. 05

62513020000

$27.48

29

CLUTCH PIPE

78132063000

$107.14

30

sealing ring DIN 7603 10x14x1

0603100141

$2.05

31

HH collar screw M6x20 TX30

0025060206

$3.08

32

HH collar screw M6x16 TX30

0025060166

$3.08

33

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

99

CLUTCH DISC KIT

78932010033

$209.15
