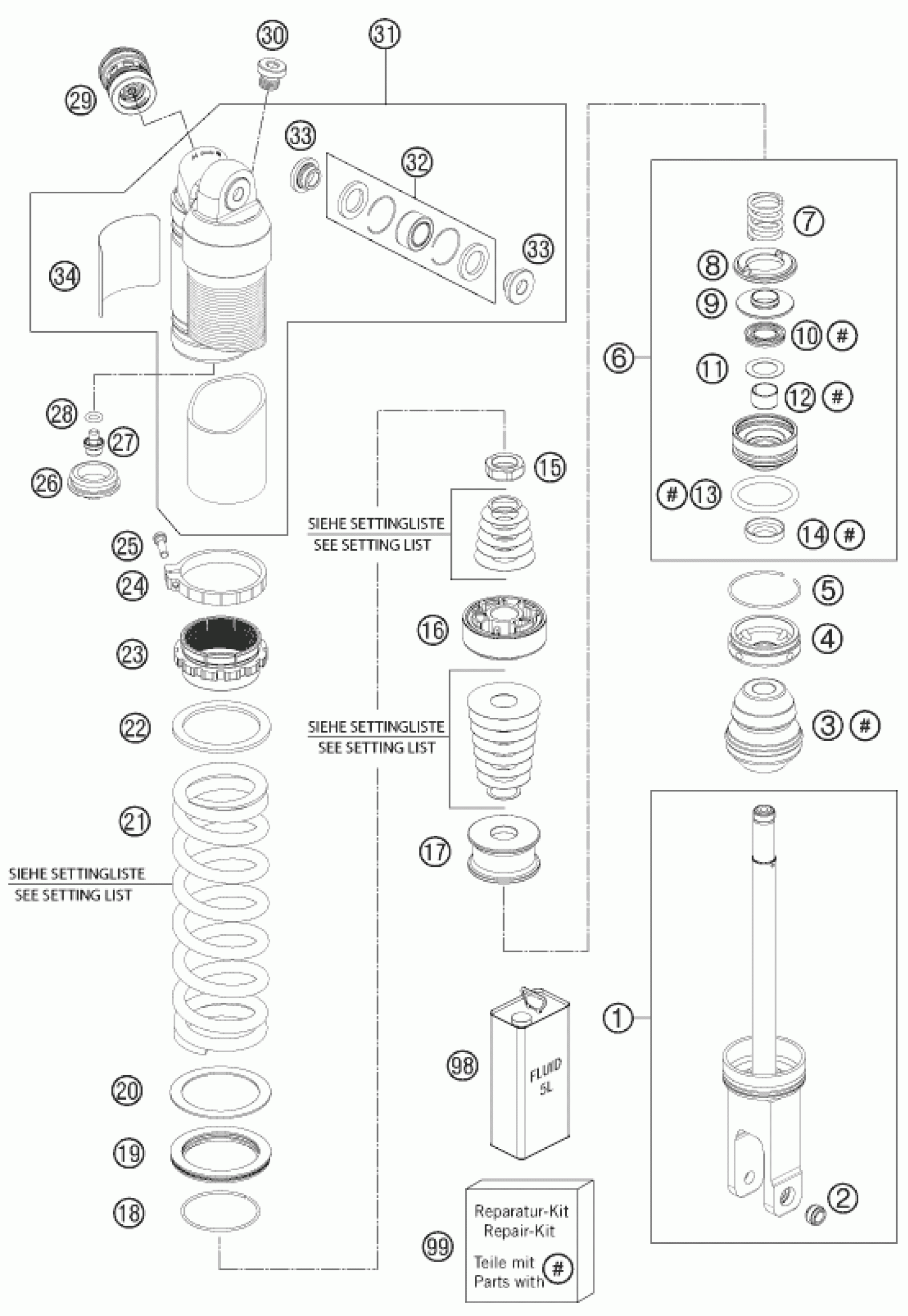

KTM 450 SMR 2013 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK BOTTOM PART CPL.

50180773SA1

Unavailable

2

Bush M10x12/15/13x9,5

46811205

Unavailable

3

Rubber pad 17x59x64

50180775

Unavailable

4

Cover 50x6 h16

50180626

Unavailable

5

Round-wire snap ring 53x1,75

50180126

Unavailable

6

ADAPTER D50 H28 CPL.

50180603S3

Unavailable

7

Spring (3,2) 30-30

50180780

Unavailable

8

Rubber pad rebound 28,8x48x8

50180798

Unavailable

9

Spring retainer 18,6x43,7x2 re

50180800

Unavailable

10

Sealholder 50x28 cpl.

50180603SA

Unavailable

11

Shim 29.75x19x0.4

50180604

Unavailable

12

Guide bushing 18x20x12

46180119

Unavailable

13

O-ring 41x5 NBR70

50180103

Unavailable

14

Dirt scarper NOK 18mm black

50180606

Unavailable

15

Piston rod nut 16x1

50180141

Unavailable

16

piston 16,05x50x20 cmpl.

50180786S

Unavailable

17

REBOUND DISC D43 H15

50180988

Unavailable

18

Round-wire snap ring 58,5x2

50180273

Unavailable

19

Spring retainer 61,5x79,1x7

50180824

Unavailable

20

Intermediate washer spring 61,

50180793

Unavailable

21

SPRING 260 54N/MM D11,5 OR.

91210083S

Unavailable

21

SPRING 260 57N/MM D11,75 OR.

91210084S

Unavailable

21

SPRING 260 60 N/MM ORANGE

91210089S

Unavailable

22

Intermediate washer spring 64,

50180965

Unavailable

23

Spring retainer M56x2x63,8x33

50180938

Unavailable

24

Clamp d64

50180937

Unavailable

25

HS cylinder-head screw M5x20 D

14460042

Unavailable

26

Rubber cap do not open 22x5,5

46811208

Unavailable

27

HS lock screw M5x6

36120151

Unavailable

28

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

29

DCC compression adjustment SX

50180213S15

Unavailable

30

HS cylinder-head screw R1/8 l8

50180095

Unavailable

31

MONOSHOCK UPPER PART CPL.

50180944S1

Unavailable

32

Ball joint bearing kit top 12m

R12012

Unavailable

33

Distance bush 10x15/18/24,5x10

46180010

Unavailable

34

Sticker WP warning 47x63

52000087

Unavailable

99

REPAIR-KIT

R12018

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable
