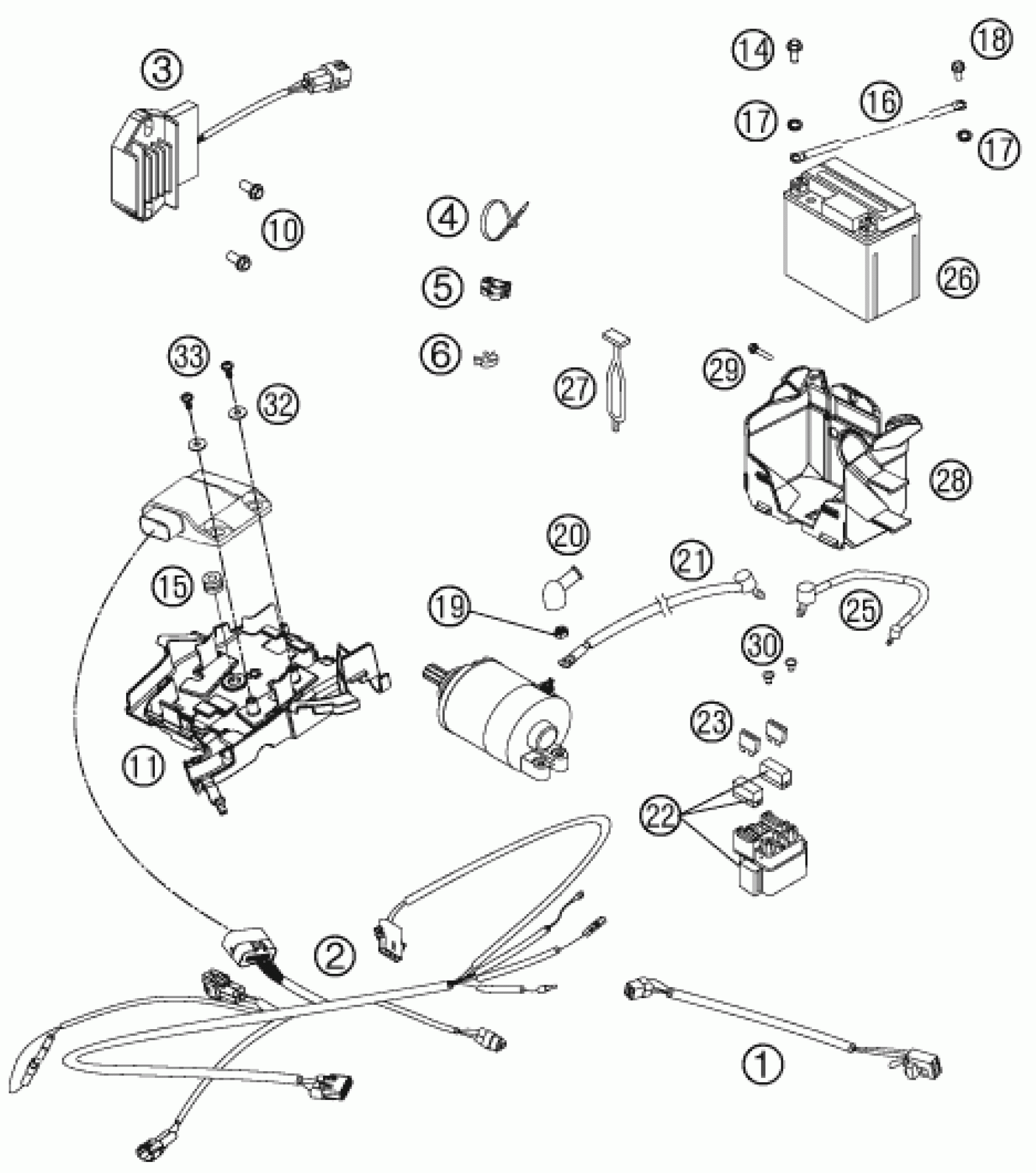

KTM 450 SMR 2012 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS 450 SX-F

77311575000

Unavailable

2

WIRING HARNESS FOR CDI-BOX

77339532000

Unavailable

3

Voltage regulator

77211034000

Unavailable

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

Unavailable

6

WIRING HOLDER 16MM

57013072100

Unavailable

10

HH collar screw M6x20 TX30

0025060206

Unavailable

11

ELECTRIC BOX

51511094000

Unavailable

14

HH collar screw M5x12 TX30

0025050126

Unavailable

15

rubber grommet 16x10.8x3

58214069051

Unavailable

16

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

17

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

19

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

20

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

21

STARTERCABLE 700 MM '97

58411059100

Unavailable

22

Starter reley 12V 99

58211058000

Unavailable

23

Plug-in fuse, big 10A

58011109110

Unavailable

25

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

26

BATTERY 12V 3AH YTX4L-BS

77311053000

Unavailable

27

RUBBER L=145MM

50303018000

Unavailable

28

BATTERY BOX

77211055000

Unavailable

29

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

32

washer DIN 9021 A - 5.3

0021050003

Unavailable

33

EJOT PT screw K50x12

0081050121

Unavailable
