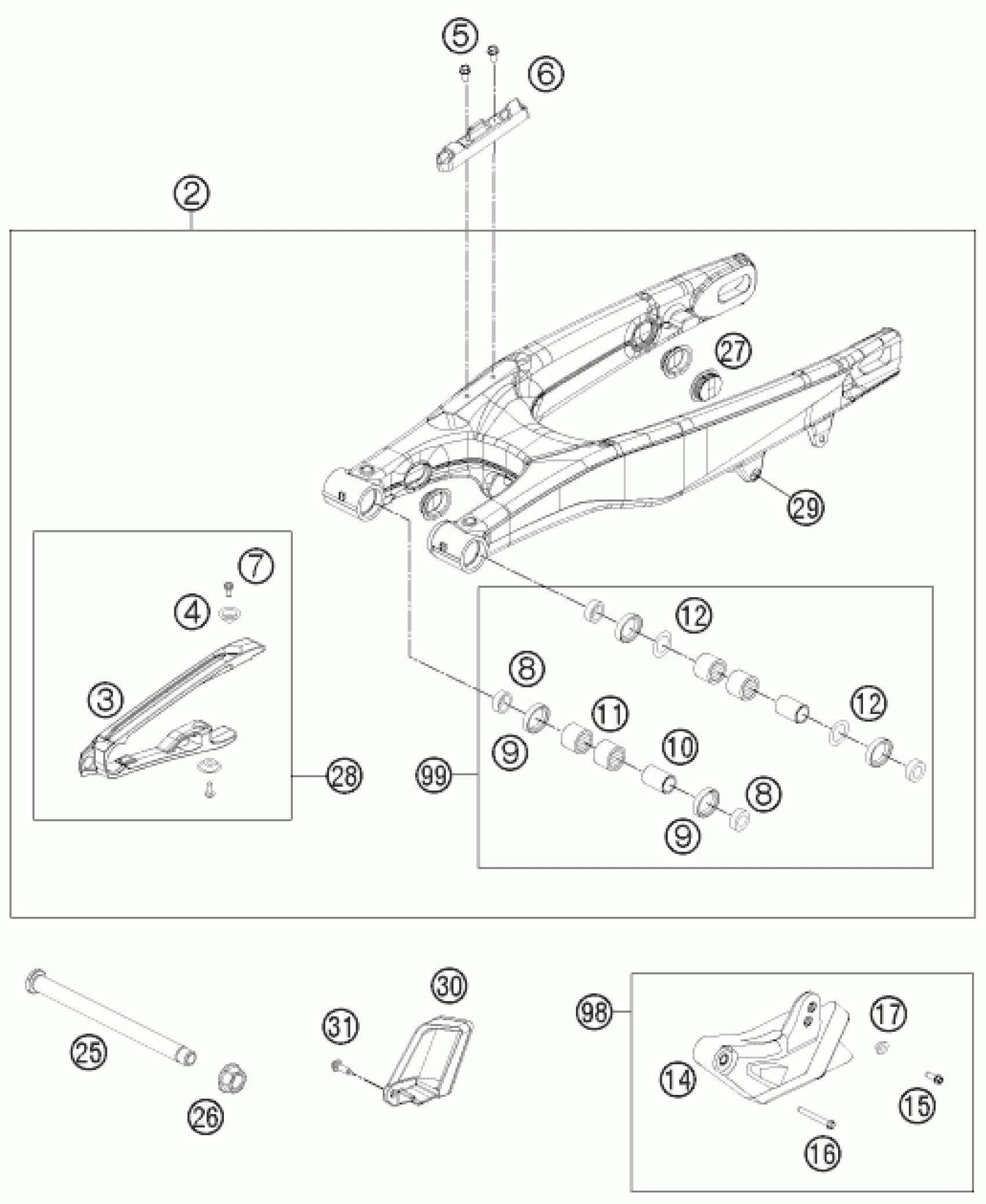

KTM 450 SMR 2012 SWING ARM Diagram

#

Description
Price

2

SWINGARM CPL. 11

77204030044

$934.71

3

CHAIN SLIDING PROTECTION

77204066000

$22.34

4

chain slider bushing

77304066050

$1.49

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE LINE GUIDE 08

76504042000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

11

NEEDLE BEARING HK 2216

58033097000

$14.02

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

CHAIN GUIDE REAR CPL. 07

77304070100

$56.56

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

16

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

17

BUSH. F. CHAIN FAIL. PROT. 07

77304070130

$3.08

25

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

28

Chain guard cpl.

77204066010

$23.37

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

98

CHAIN GUIDE KIT REAR 07-13

77304070210

$54.88

99

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable

30

CHAIN STOP GUARD SMR 12

77304260100

$5.88

31

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05
