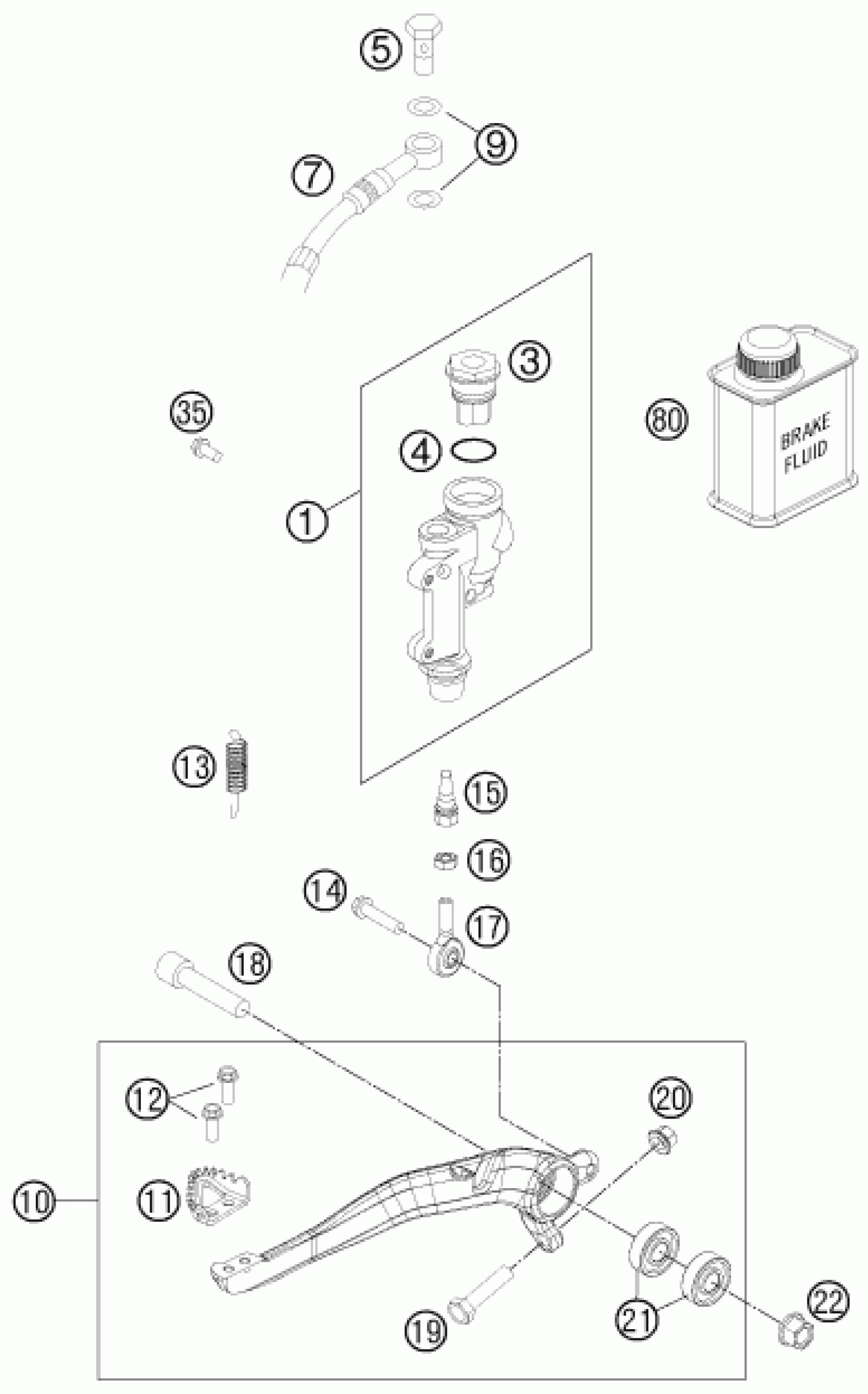

KTM 450 SMR 2012 REAR BRAKE CONTROL Diagram

REAR BRAKE CYLINDER CPL.SX 09

77013060044

$306.11

REAR BRAKE CYL. COVER CPL. 04

54813062100

$45.06

FOOT-BRAKE CYL. GASKET SX 03

54813063000

$9.53

banjo bolt M10x1x19 black

54813020100

$9.90

BRAKE HOSE REAR XXXMM 11

77213070000

$98.91

sealing ring DIN 7603 10x14x1

0603100141

$2.05

FOOT BRAKE LEVER CPL.

77213050044

$124.81

STEP PLATE FOR BRAKE LEVER

54813051000

$11.02

HH collar screw M5x12 TX30

0025050126

$3.08

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

HH collar screw M6x20 TX30

0025060206S

$2.05

PUSH ROD L=28MM 03

54813056000

$15.89

Self lock. nut DIN985-M6-A2

0985060003

$2.05

SWIVEL HEAD KA6 03

54813055000

$19.91

AH-COLLAR SCREW M10X40 ISA45

0032100406S

$4.11

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

flanged nut M8 WS10

46030045000

$7.85

deep groove ball bearing SKF 6

0625060002

$12.33

COLLAR NUT M10 WS=13

54630044000

$1.49

HH collar screw M6x12 TX30

0025060126

$3.08

Brake fluid DOT5.1 0,25L

00062030000

$12.52
