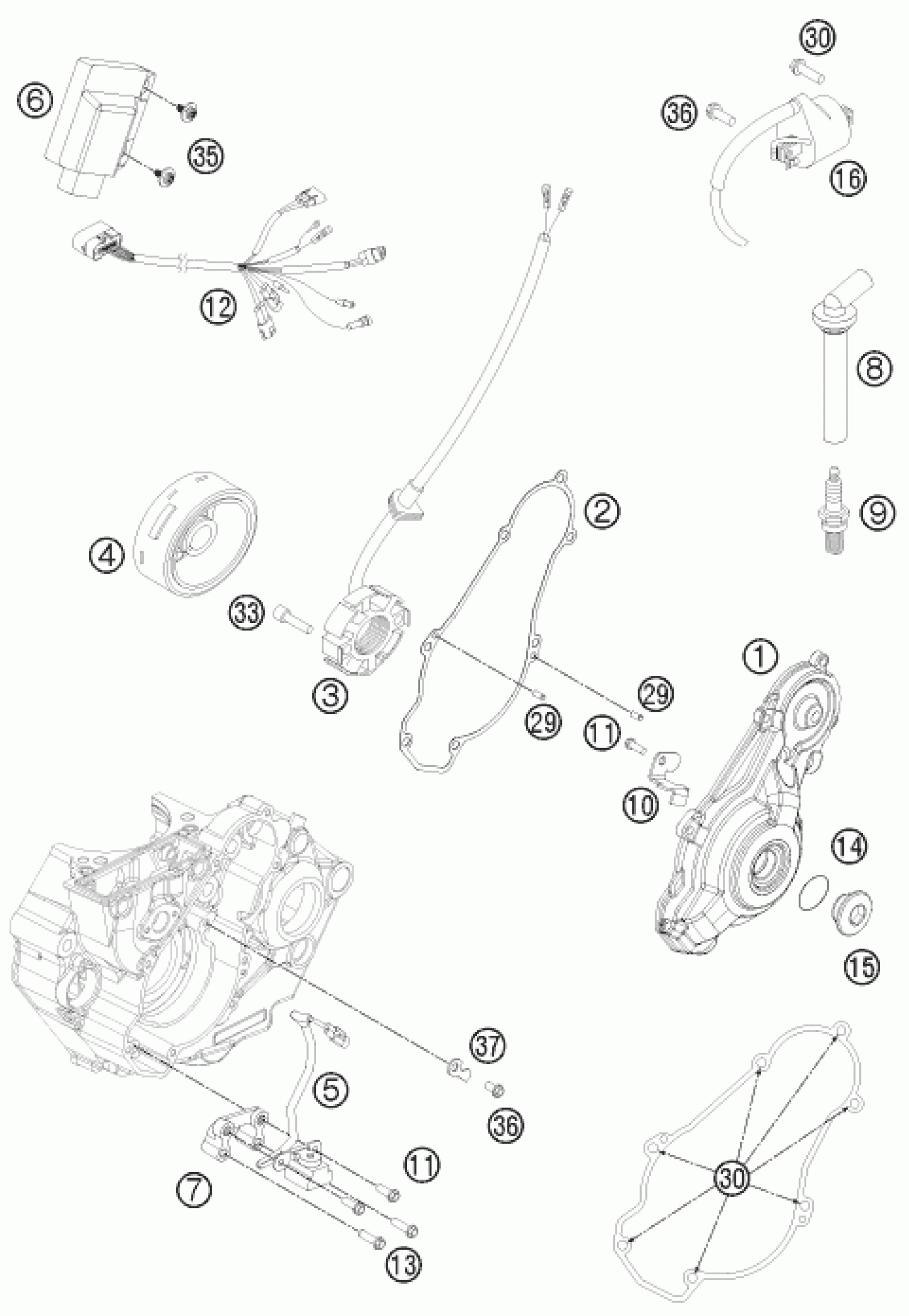

KTM 450 SMR 2012 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 09

7733000210015

$104.24

2

IGNITION COVER GASKET

77330040100

$8.41

3

STATOR SX 06

77339004000

$179.52

4

FLYWHEEL 05

77039005000

$312.76

5

PULSER COIL KOKUSAN ''PU5165''

77339034000

$73.03

6

CDI UNIT KOKUSAN 450 SX-F 07

77339031000

$248.99

7

ADAPTER PULSER COIL

77339035100

$24.97

8

SPARK PLUG

77339090000

$39.73

9

SPARK PLUG NGK CR9EKB ´05

77039093000

$13.46

10

WIRE RETAINING BRACKET

77330002050

$4.87

11

HH collar screw M5x10 TX30

0025050106

$1.49

12

WIRING HARNESS FOR CDI-BOX

77339032000

$117.71

13

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

14

o-ring 22.00X2.00 NBR70

0770220020

$2.05

15

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

29

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

30

HH collar screw M6x20 TX30

0025060206

$3.08

33

AH SCREW DIN0912-M 5X25

0912050253

$1.49

35

EJOT PT SCREW K50X12 WN5452

0081650121

$2.05

36

HH collar screw M6x16 TX30

0025060166

$3.08

37

RETAINING PLATE F.PICKUPCABEL

77340097100

$4.11
