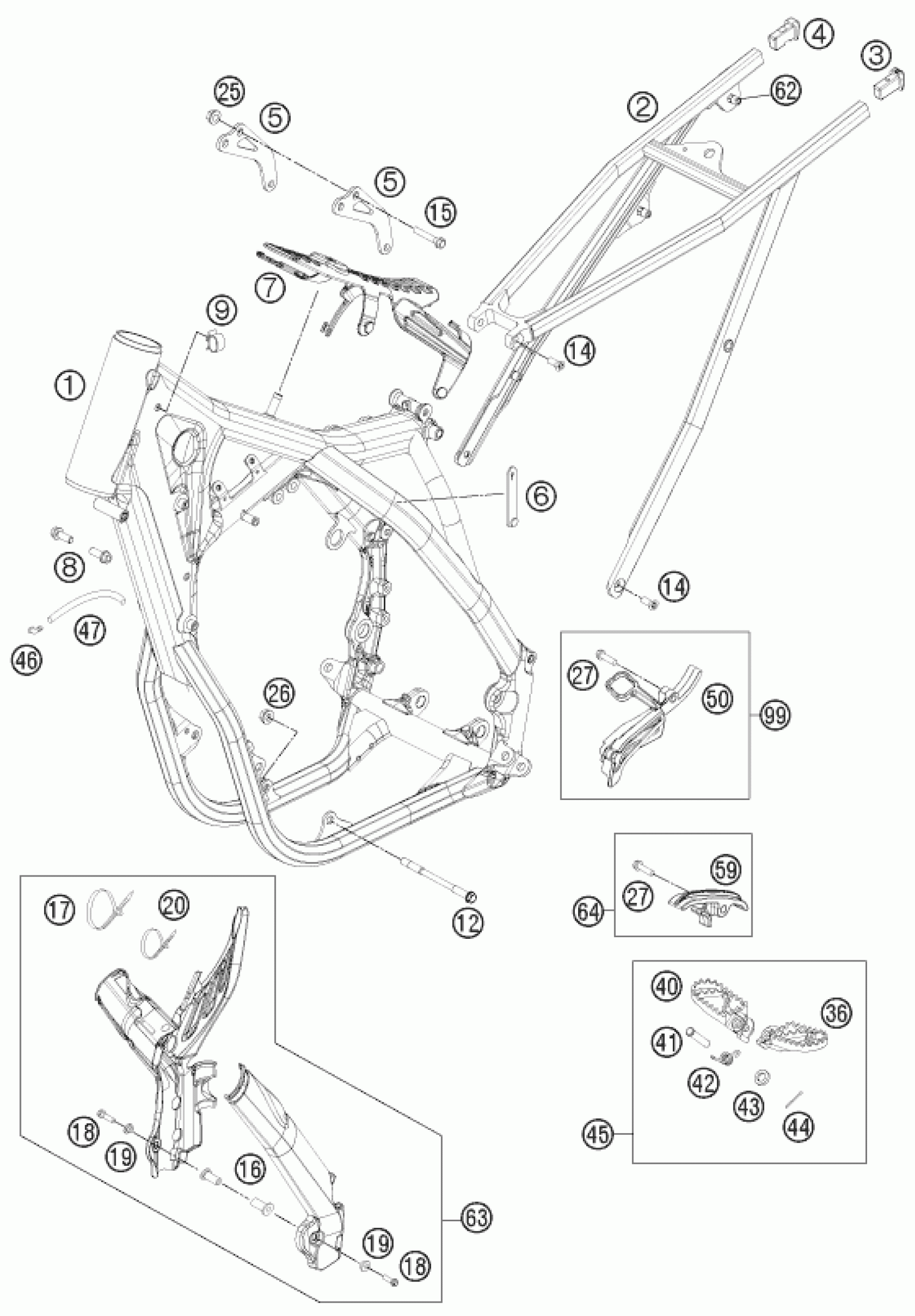

KTM 450 SMR 2012 FRAME Diagram

#

Description
Price

1

FRAME BLACK M. ''JA11''

7730350100033

Unavailable

2

SUB FRAME SX

77203002000

$391.48

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

5

ENGINE BRACE 450 SX-F 11

77303513000

$9.06

6

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

7

TANK REST RUBBER

77207012000

$9.44

8

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

9

WIRING HOLDER 16MM

57013072100

$1.49

12

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

99

SPROCKET COVER KIT

77303096010

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

18

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1.49

19

Bush f. frame protection 03

54803092060

$4.11

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH collar screw M8x30

0025080306

$3.08

36

FOOT PED L/S EXC SILVER 00

59003040050

$43.84

40

FOOT PED R/S EXC SILVER 2000

59003041050

$42.72

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTPEG L.+R. CPL. 85 SX 03

4700304003390

$110.13

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

CHAIN SPROCKET COVER

77303096000

$15.42

59

CHAIN SLIDER LOWER PART CPL.

77203053000

$9.06

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

PLASTIC FRAME PROTECTION SET

77203094000

$51.98

64

CHAIN SLIDING KIT BELOW CPL.11

77203053010

$18.78
