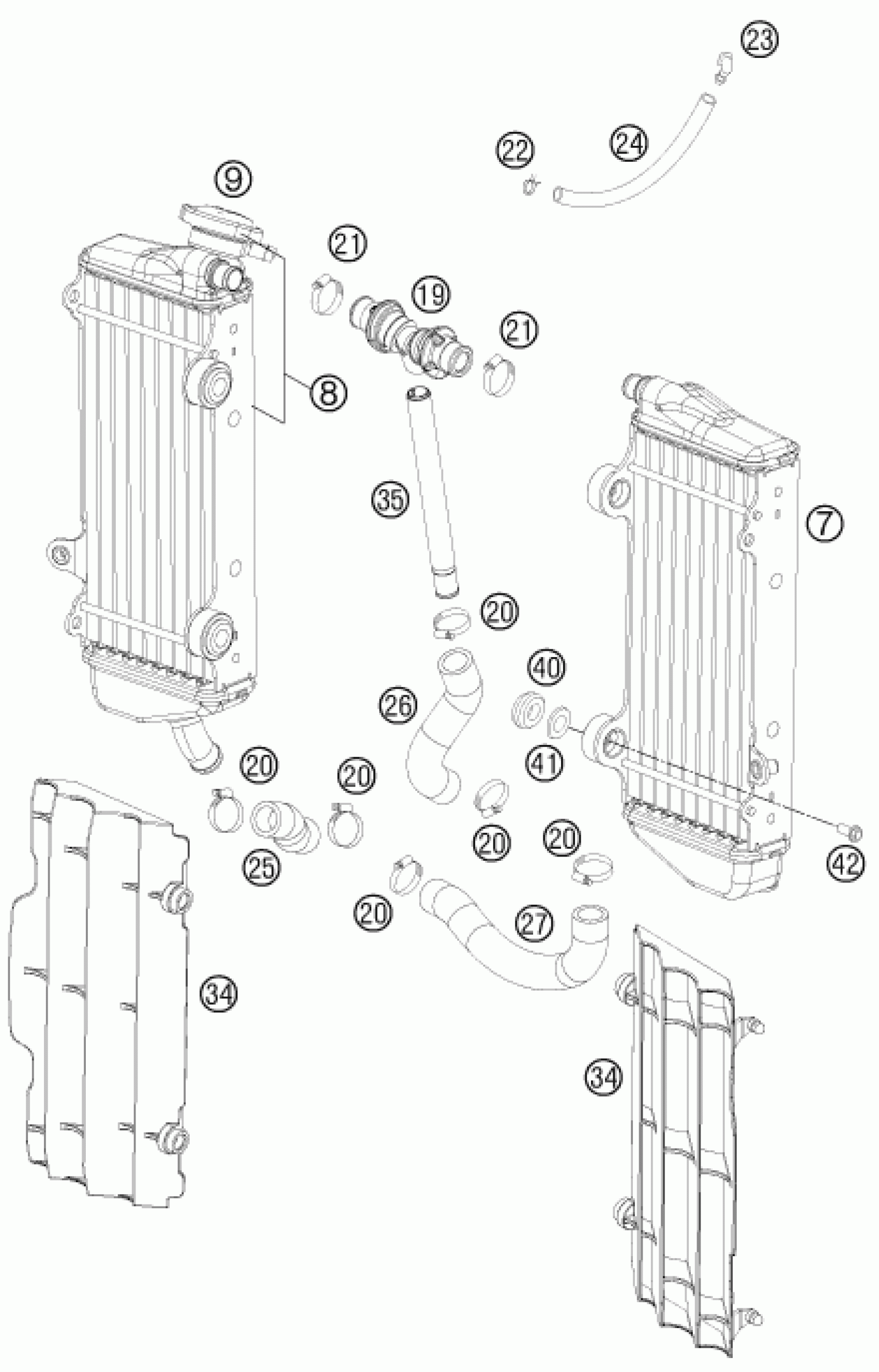

KTM 450 SMR 2012 COOLING SYSTEM Diagram

WASHER FOR RADIATOR 08

77335001000

$2.05

COLLAR SCREW M6X12 TX

0023060123

$2.05

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

HOSE CONNECTOR L=172,5

77235073000

$23.93

RADIATOR L/S ''45519U'' 07

77335007000

$259.17

RADIATOR R/S ''45637'' 11

77235008000

$225.23

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

Y-CONNECTOR CPL.

77235071044

$53.38

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE CLAMP NORMA 14/24

42013037400

$2.05

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 6X9

50335030001

Unavailable

RADIATOR HOSE R/S

77335027000

$7.85

RADIATOR HOSE L/S

77335025000

$15.42

RUBBER SLEEVE D=12MM

41001052000

$4.11

PREFORMED HOSE ENG-RADIATOR 11

77335524000

$9.81

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49
