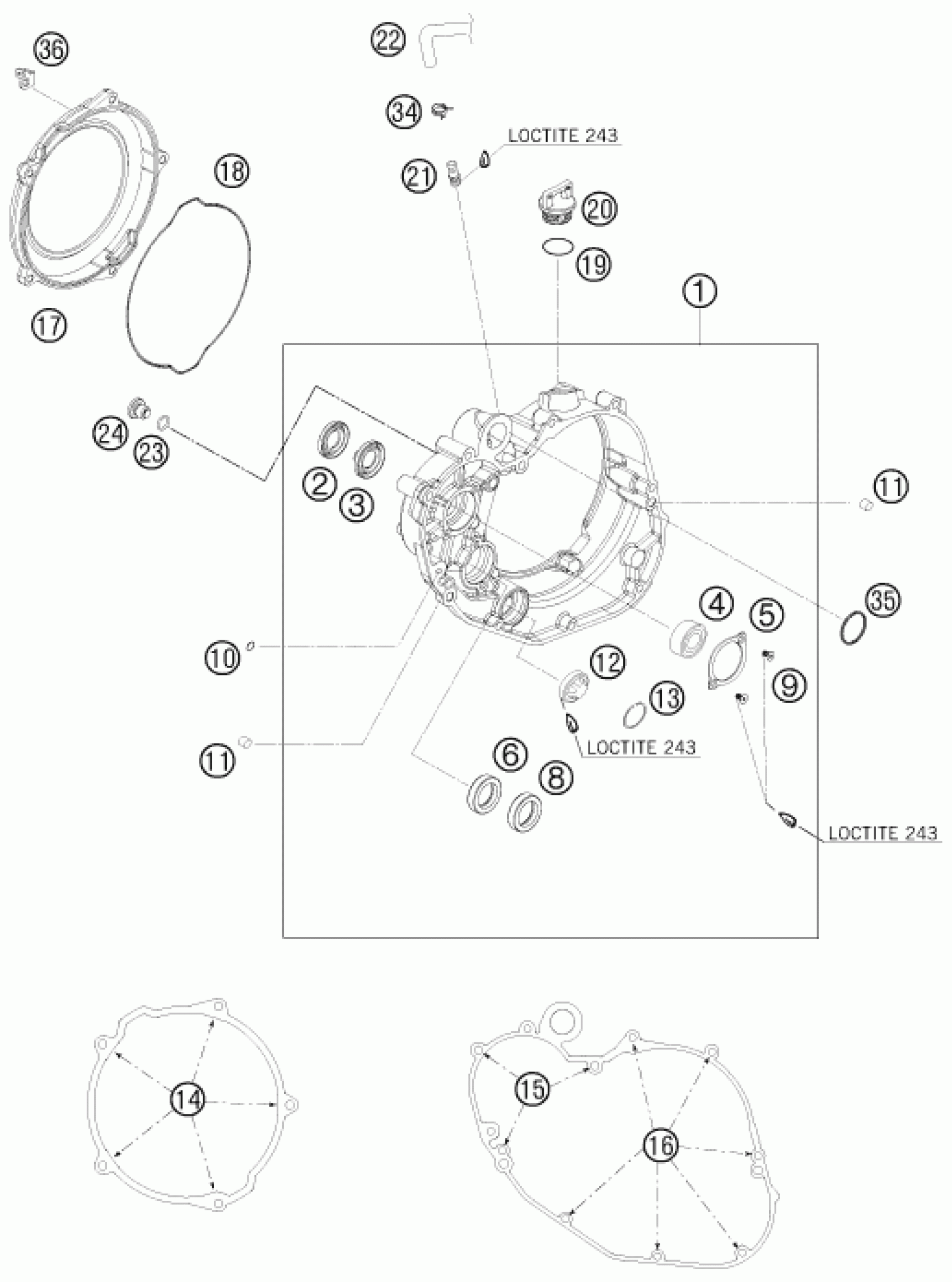

KTM 450 SMR 2012 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

7733000124415

$230.59

2

SHAFT SEAL RING 12x24x4

77335057000

$11.49

3

SHAFT SEAL RING 12x24x4/5,5

77335056000

$12.05

4

BALL BEARING 6202 C0 2

0625062022

$14.48

5

RETAINING PLATE FOR WAPUSTOCK

77335064100

$4.11

6

SHAFT SEAL RING 20X30X7

0760203071

$4.11

8

SHAFT SEAL RING 25x35x7 BSL VI

0760253574

$10.65

9

INT TORX FLAT HEAD M5X10 10.9

0019050106

$2.05

10

O-RING 8,00X1,5 NBR 70

0770080015

$1.49

11

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

$2.05

12

OIL LEVEL GLASS

59030019100

$21.31

13

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

14

HH collar screw M6x20 TX30

0025060206

$3.08

15

SCREW M7-1,0X45

77330067145

$3.08

16

HH collar screw M6x30 TX30

0025060306

$3.08

17

CLUTCH COVER OUTSIDE 09

7733002620015

$71.80

18

CLUTCH CASE GASKET

77330027000

$9.62

19

O-RING 19,00X3,00 NBR

0770191015

$2.05

20

oil plug cpl. M24x3

58030020100

$5.23

21

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

22

ENGINE BREATHER TUBE

77330086100

$31.88

34

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

35

QUAD-RING 28,3X1,78 VITON

77335005000

$4.11

36

SPRING BRACKET

77303026054

$5.98

23

O-RING 9x1,5 V80 SH

07700900151

$2.05

24

SCREW PLUG

77336056095

$7.00
