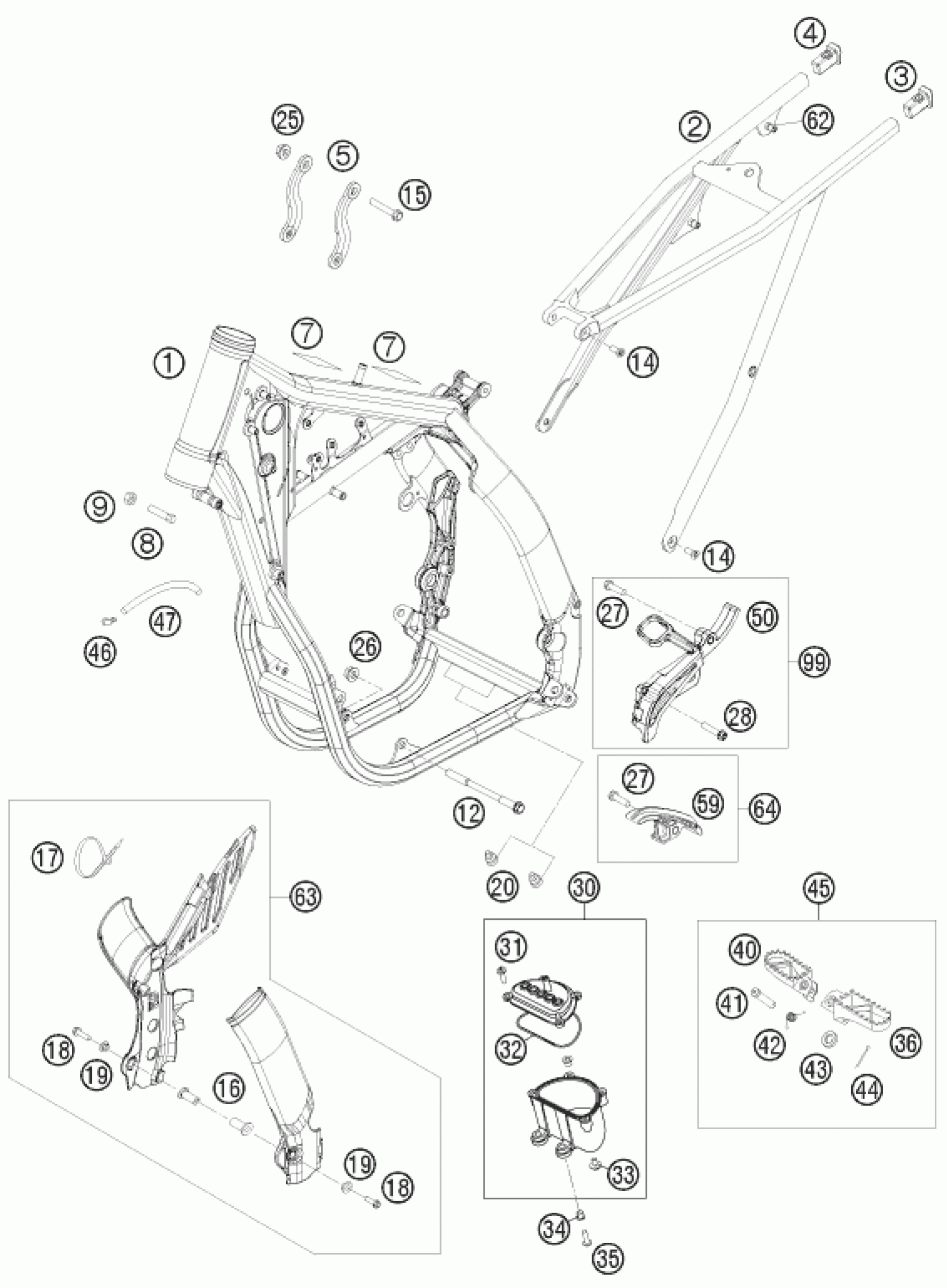

KTM 450 SMR 2009 FRAME Diagram

FRAME SMR ''JE08''

7730320100030

Unavailable

SUB FRAME SX ''Q7'' 07

77303002000

$379.79

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

ENGINE BRACE 450 SX-F 09

77303113000

$10.46

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

Self locking nut M8 10.9

54310086200

$3.08

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x35 TX30

0025060356

$3.08

EXPANSION TANK CPL. 2004

59431096000

$63.95

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

O-RING 76,00X2,00 VITON

0770760021

$5.32

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

spacer bushing for speedometer

58314060050

$5.23

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

FOOT PEG L/S SILVER 02

59003040250

$43.66

FOOT PEG R/S SILVER 02

59003041250

$43.66

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

PLASTIC CAP SFL10

54403135000

$2.05

ANGLE PIECE '97

50303089000

Unavailable

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

CHAIN SPROCKET COVER

77303096000

$15.42

Chain sliding piece, bottom

77303053000

$9.44

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

PLASTIC FRAME PROTECTION SET

77303094100

$28.89

CHAIN SLIDING KIT BELOW CPL07

77303053010

$11.49

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1.49

Bush f. frame protection 03

54803092060

$4.11

SPROCKET COVER KIT

77303096010

Unavailable
