CYLINDER HEAD

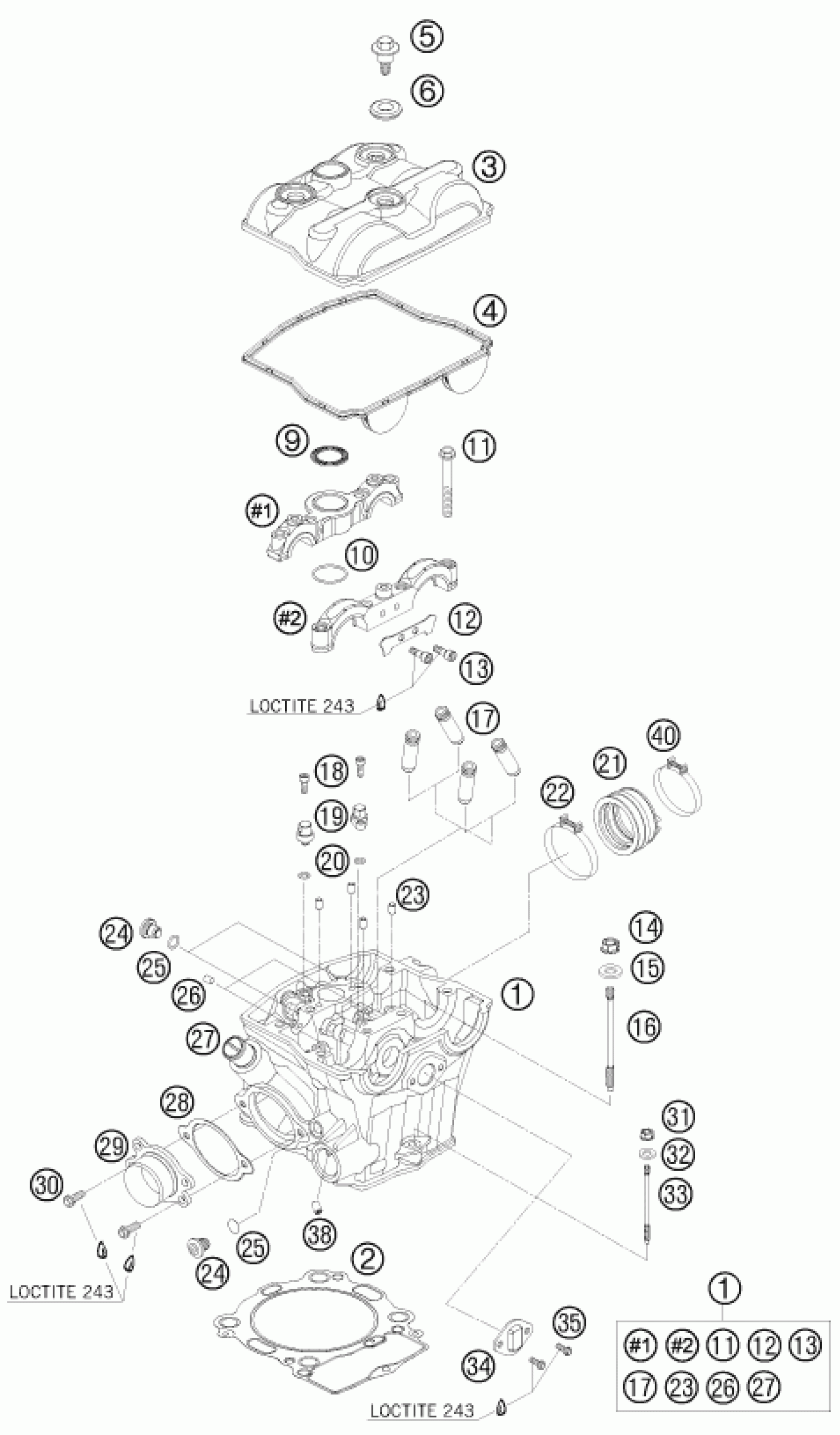

KTM 450 SMR 2009 CYLINDER HEAD Diagram
#
Description
Price
20
O-ring 6,00x1,50 NBR 70
0770060015
$5.23
21
INTAKE BOOT
77336044000
$36.27
22
HOSE CLAMP GEMI 56MM 03
59030061100
$5.51
19
OIL JET
77338046000
$19.42
15
washer 19x10.5x2.5
77336089010
$4.11
17
VALVE GUIDE
77336025100
$25.70
1
CYLINDER HEAD CPL.
77336020144
$1,231.29
2
CYL. HEAD GASKET S=0,5 06
77330036000
$43.28
3
VALVE COVER
77336052100
$49.17
4
VALVE COVER GASKET
77336053000
$12.02
5
VALVE COVER SCREW
77336054150
$5.23
6
RUBBER GASKET FOR SCREW 05
77036054050
$4.11
9
GASKET SPARK-PLUG SHAFT
77336053050
$5.88
10
O-RING 25,00X1,50 NBR 70
0770250015
$1.49
11
SCRW M7-1,0X38
77330067138
$3.08
12
BUSHING HOLDER
77336020040
$5.60
13
AH SCREW DIN0912-M 5X10
0912050103
$1.49
14
COLLAR NUT M10X1,25 SW13
77336088210
$2.05
18
AH SCREW DIN7984-M 4X12
0984040123
Unavailable
16
STUD SCREW M10
77330044100
$6.44
30
HH collar screw M6x16 TX30
0025060166
$3.08
31
COLLAR NUT M6X1 SW8
77336088106
$12.61
27
SCREW IN NOZZLE M20X1,5
58030010200
$8.87
28
GASKET EXHAUST FLANGE
77336041000
$8.78
29
EXHAUST FLANGE CPL. SX-F 08
77336139000
$34.52
23
CYLINDER ROLLER ZRO 5X8
0402050080
$2.05
24
SCREW PLUG
77336056095
$7.00
25
O-RING 9X1,5 NBR
0770090015
$2.05
26
PLUG 00
59030196000
$1.49
32
WASHER DIN0125-A 6,4
0125060003
$1.49
33
STUD SCREW M6
77330043000
$11.12
34
RETAINING PLATE
77336075050
$5.23
35
HH collar screw M5x10 TX30
0025050106
$1.49
38
THROTTLE M6X10X0,6
77338029012
$11.96
40
HOSE CLAMP GEMI 56MM 03
59030061100
$5.51
