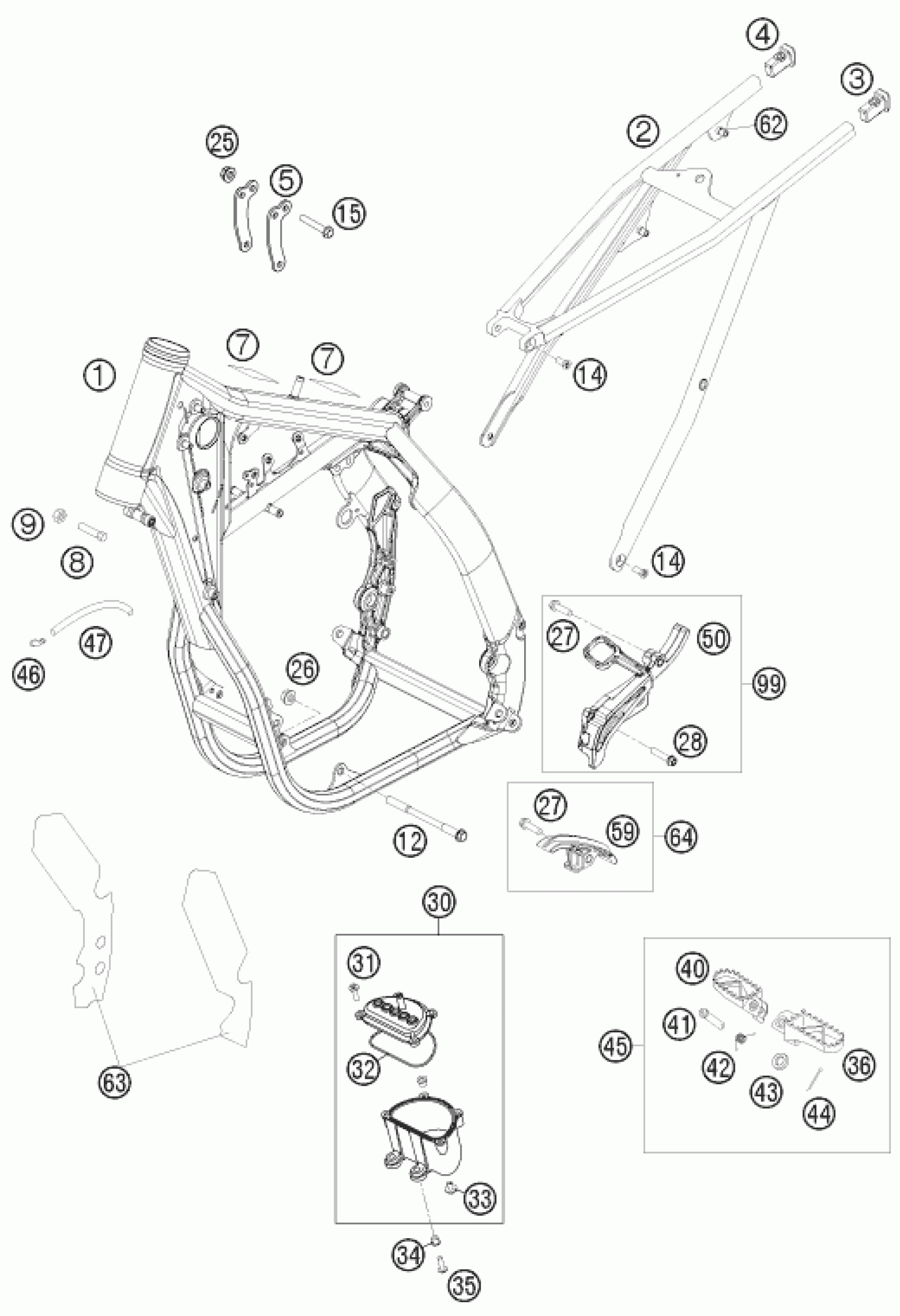

KTM 450 SMR 2008 FRAME Diagram

#

Description
Price

27

HH collar screw M8x30

0025080306

Unavailable

36

FOOT PEG L/S SILVER 02

59003040250

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

15

HH COLLAR SCREW M 8X44 WS13

56530079000

Unavailable

12

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

25

Self locking nut M8 10.9

54310086200

Unavailable

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

1

FRAME SMR ''JE08''

7730320100030

Unavailable

2

SUB FRAME SX ''Q7'' 07

77303002000

Unavailable

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

45

FOOTPEG L.+R. CPL. 03

5030314013390

Unavailable

46

ANGLE PIECE '97

50303089000

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

40

FOOT PEG R/S SILVER 02

59003041250

Unavailable

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

42

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

43

washer DIN 125 A 10.5

0125100003

Unavailable

47

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

50

CHAIN SPROCKET COVER

77303096000

Unavailable

59

Chain sliding piece, bottom

77303053000

Unavailable

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

FRAME PROTECTION STICK. SET 07

77303094000

Unavailable

64

CHAIN SLIDING KIT BELOW CPL07

77303053010

Unavailable

5

ENGINE BRACE 450 SX-F 07

77303013000

Unavailable

30

EXPANSION TANK CPL. 2004

59431096000

Unavailable

31

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

32

O-RING 76,00X2,00 VITON

0770760021

Unavailable

33

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

34

spacer bushing for speedometer

58314060050

Unavailable

35

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

28

HH collar screw M6x40 TX30

0025060406

Unavailable

99

SPROCKET COVER KIT

77303096010

Unavailable
