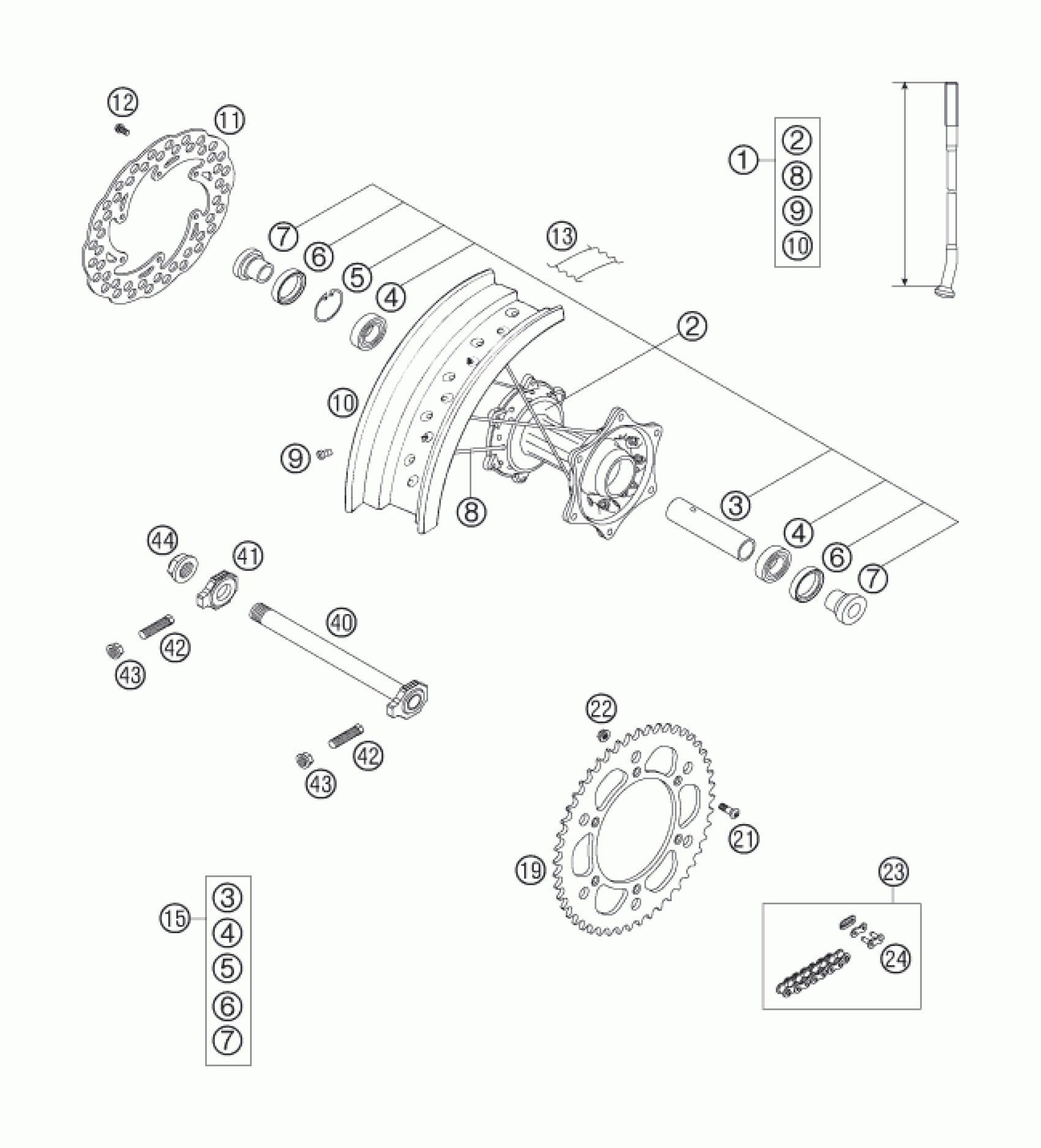

KTM 450 SMR 2007 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL 5X17'' SMR 0

59410001044

Unavailable

2

REAR HUB SX CPL. 07

77310010044

Unavailable

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

SPACER BUSHING 07

77310016000

Unavailable

8

SPOKE M5X177-13,5G 17''

58309171100

Unavailable

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

10

RIM 5X17'' SMR 0

59410070000

Unavailable

11

BRAKE DISC REAR D=220MM 05

54810060100

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

13

rim tape 17"

58309073000

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

19

REAR SPROCKET 49-T

58310151049

Unavailable

19

REAR SPROCKET 50-T

58310151050

Unavailable

19

REAR SPROCKET 51-T

58310151051

Unavailable

19

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

CHAIN 5/8X1/4'' MX

50310165118

Unavailable

24

Connecting link for 5031016511

50310166000

Unavailable

40

Thru axle rear wheel cmpl. 07

77310085044

Unavailable

41

Chain tension adjuster, right

50310084000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

15

REAR WHEEL REP. KIT

77310015000

Unavailable
