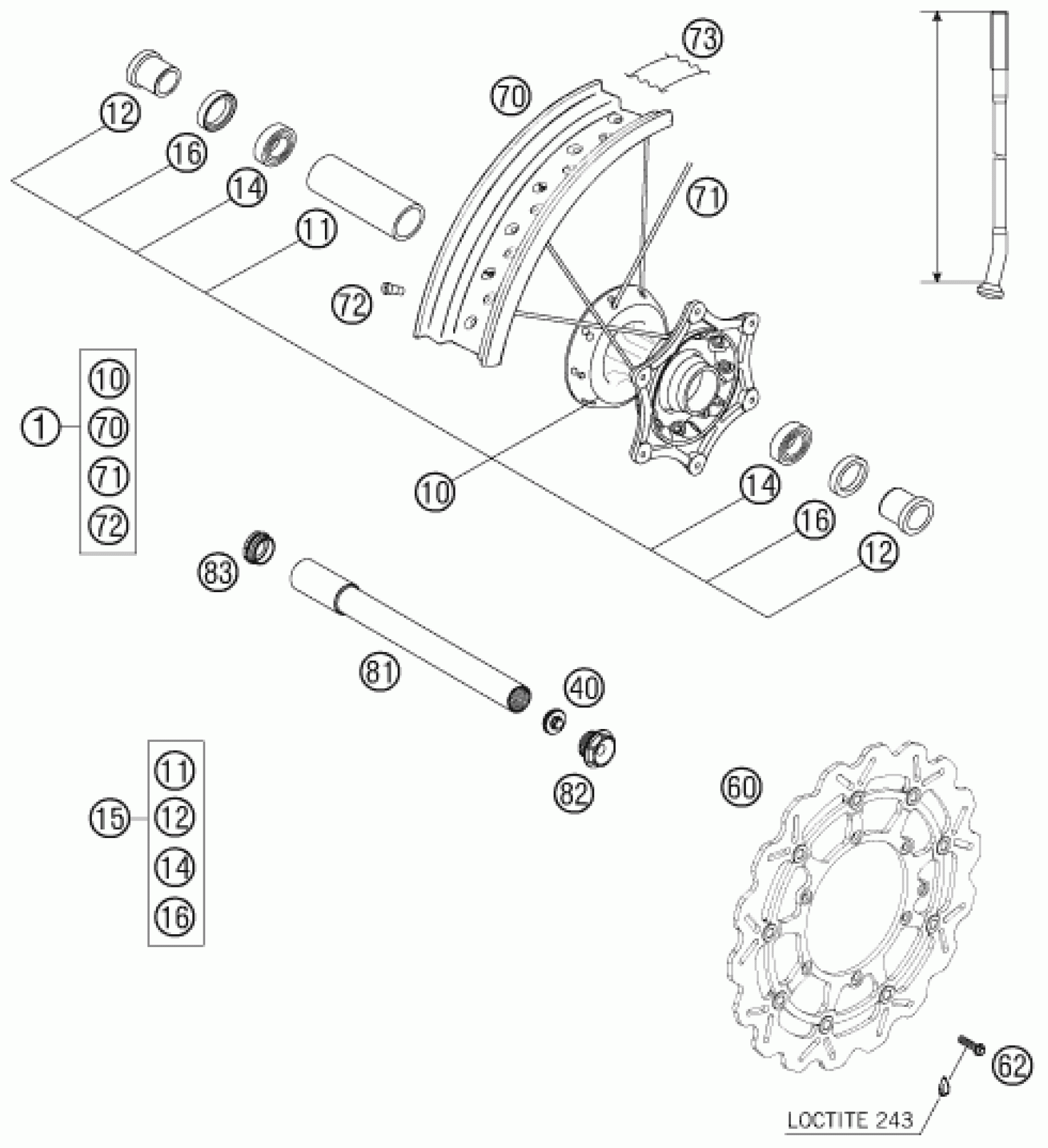

KTM 450 SMR 2007 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 3,5X17'' SMR 0

59409001044

Unavailable

10

FRONT HUB SX CPL. 07

77309010044

Unavailable

11

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

12

SPACER BUSHING 07

77309012000

Unavailable

14

Grooved ball bearing 6906

0625069068

Unavailable

16

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

40

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

60

WAVE BRAKE DISC FRONT 2005

58609060000

Unavailable

62

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

70

RIM FRONT 3,5X17'' SMR 0

59409070000

Unavailable

71

SPOKE M4,5X175-15G 17'' DDE

50309071175

Unavailable

72

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

73

rim tape 17"

58309073000

Unavailable

81

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

82

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

83

PLUG BUSHING WS=27 03

54809081050

Unavailable

15

FRONT WHEEL REP. KIT

77309015000

Unavailable
