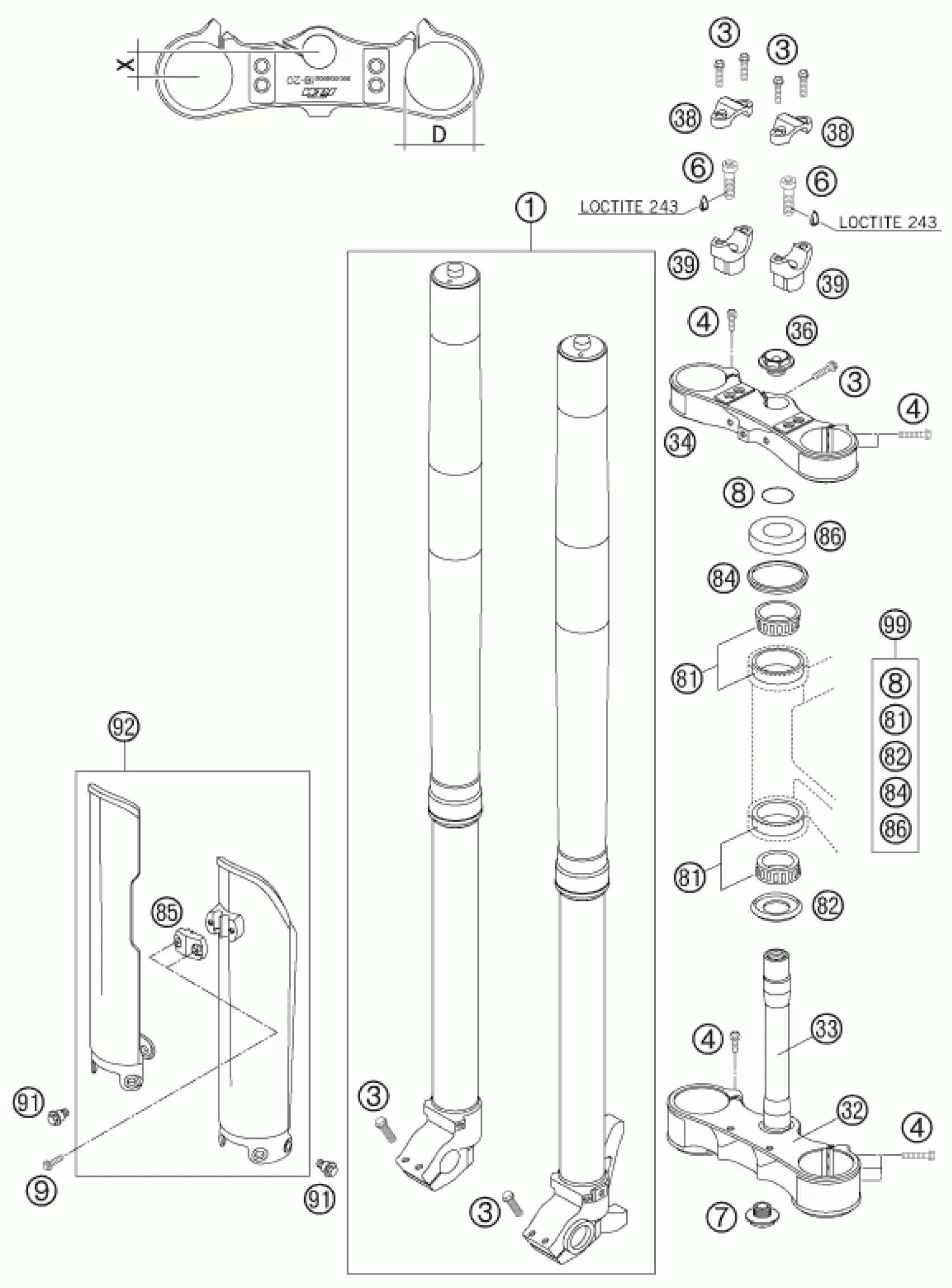

KTM 450 SMR 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FRONT F.WP D=48MM450/560SMR 07

14187C18

Unavailable

3

HH COLLAR SCREW M8X25 WS=10

0015080256S

Unavailable

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

6

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

8

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

32

BOTTOM TRIPLE CLAMP 14-16

59401031115

Unavailable

33

FORK TUBE L=237MM 05

59401033000

Unavailable

34

TOP TRIPLE CLAMP 14-16 OFFSET

59401034115

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

38

HANDLEBAR CLAMP 28MM 05

59401038000

Unavailable

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

85

CLAMP F.SPEED.CABLE ORANGE 06

5900108510004

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROT. L/S +R/S ORG 02

5900109400004

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
