Description

Price

31

BUSHING 8,2X10X20

51103053051

$4.11

32

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

30

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

27

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

25

SUB FRAME CPL. SX RAC. ''G5''

59403002244

$274.11

26

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

33

Self locking nut M8 10.9

54310086200

$3.08

35

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

36

LOCK WASHER 8MM

36003014000

$2.05

37

BUSHING 8.2 X 12 X 6

74003021000

$3.08

38

Grooved ball bearing 608 2RS C

0625006087

$21.40

39

WASHER DIN0125-A 6,4

0125060003

$1.49

46

EXPANSION TANK CPL. 2004

59431096000

$63.95

47

O-RING 76,00X2,00 VITON

0770760021

$5.32

48

spacer bushing for speedometer

58314060050

$5.23

23

washer DIN 125 A 10.5

0125100003

$2.05

24

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

4

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

7

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

34

CHAIN ROLL D=30MM

50203053000

$6.72

1

FRAME SMR ''DE07''

5940320100030

Unavailable

8

Hexagon nut DIN934 M8

0934080003

$2.05

9

ANGLE PIECE '97

50303089000

$5.23

10

PVC-HOSE 7X10 PER METER

55007016001

$6.07

11

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

12

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

13

FRAME PROTECTION SET 05

54803094100

$20.94

14

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

15

Bush f. frame protection 03

54803092060

$4.11

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

18

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

19

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

20

FOOT PEG L/S SILVER 02

59003040250

$43.66

42

FOOT PEG R/S SILVER 02

59003041250

$43.66

21

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

22

FOOTREST SPRING L/S & R/S

54603041000

$5.23

50

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

51

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

52

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

53

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

59

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

60

BUCKET

72210079000

$3.00

61

HEAT SHIELD 04

59405011000

$19.51

79

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

88

ENGINE BREATHER TUBE 00

59031050100

$14.58

41

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

43

CHAIN ROLL 30MM CPL. 06

50203053010

$25.24

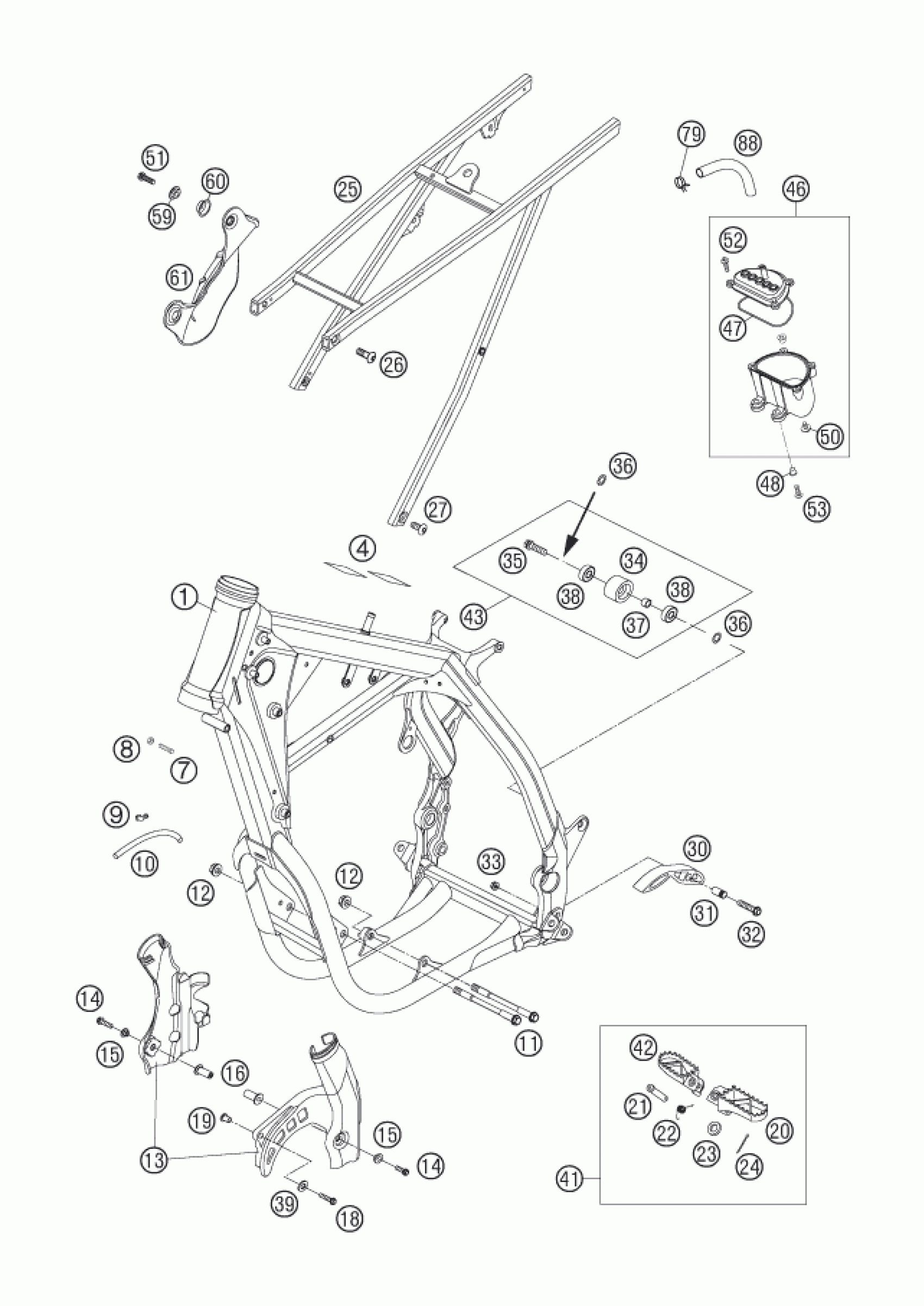

KTM 450 SMR 2007 FRAME Diagram

BUSHING 8,2X10X20

HH COLLAR SCREW M 8X35 WS=10

CHAIN SLIDING PIECE BELOW '97

SPROCKET SCREW-AH M8X20 WS=6

SUB FRAME CPL. SX RAC. ''G5''

SPROCKET SCREW-AH M8X26 WS=6

Self locking nut M8 10.9

HH COLLAR SCREW M 8X30 WS=10

LOCK WASHER 8MM

BUSHING 8.2 X 12 X 6

Grooved ball bearing 608 2RS C

WASHER DIN0125-A 6,4

EXPANSION TANK CPL. 2004

O-RING 76,00X2,00 VITON

spacer bushing for speedometer

washer DIN 125 A 10.5

PIN DIN0094-3,2X25 STEEL

ADH. FOIL TRANSP. 80X80 MM 04

SPECIAL SCREW M8X26 WS=10

CHAIN ROLL D=30MM

FRAME SMR ''DE07''

Hexagon nut DIN934 M8

ANGLE PIECE '97

PVC-HOSE 7X10 PER METER

Enginebrac. screw M10X123 WS=1

SELF LOCKING NUT M10 CU WS=14

FRAME PROTECTION SET 05

HH COLLAR SCREW M 5X25 WS=6

Bush f. frame protection 03

BLIND PLUG-IN NUT M5 WN 22A 03

HH COLLAR SCREW M 6X35 WS=8

BUSHING F. SPROCKET COVER RAC.

FOOT PEG L/S SILVER 02

FOOT PEG R/S SILVER 02

PIN FOR FOOT PED 51.5X9.8 MM

FOOTREST SPRING L/S & R/S

HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X20 WS=8

EJOT PT SCREW K60X20 WS=6

HH COLLAR SCREW M 6X25 WS=8

BUSH FOR SPOILER 6X11X16X5 MM

BUCKET

HEAT SHIELD 04

YDNAC-clamp 10173 (16MM)

ENGINE BREATHER TUBE 00

FOOTPEG L.+R. CPL. 03

CHAIN ROLL 30MM CPL. 06
