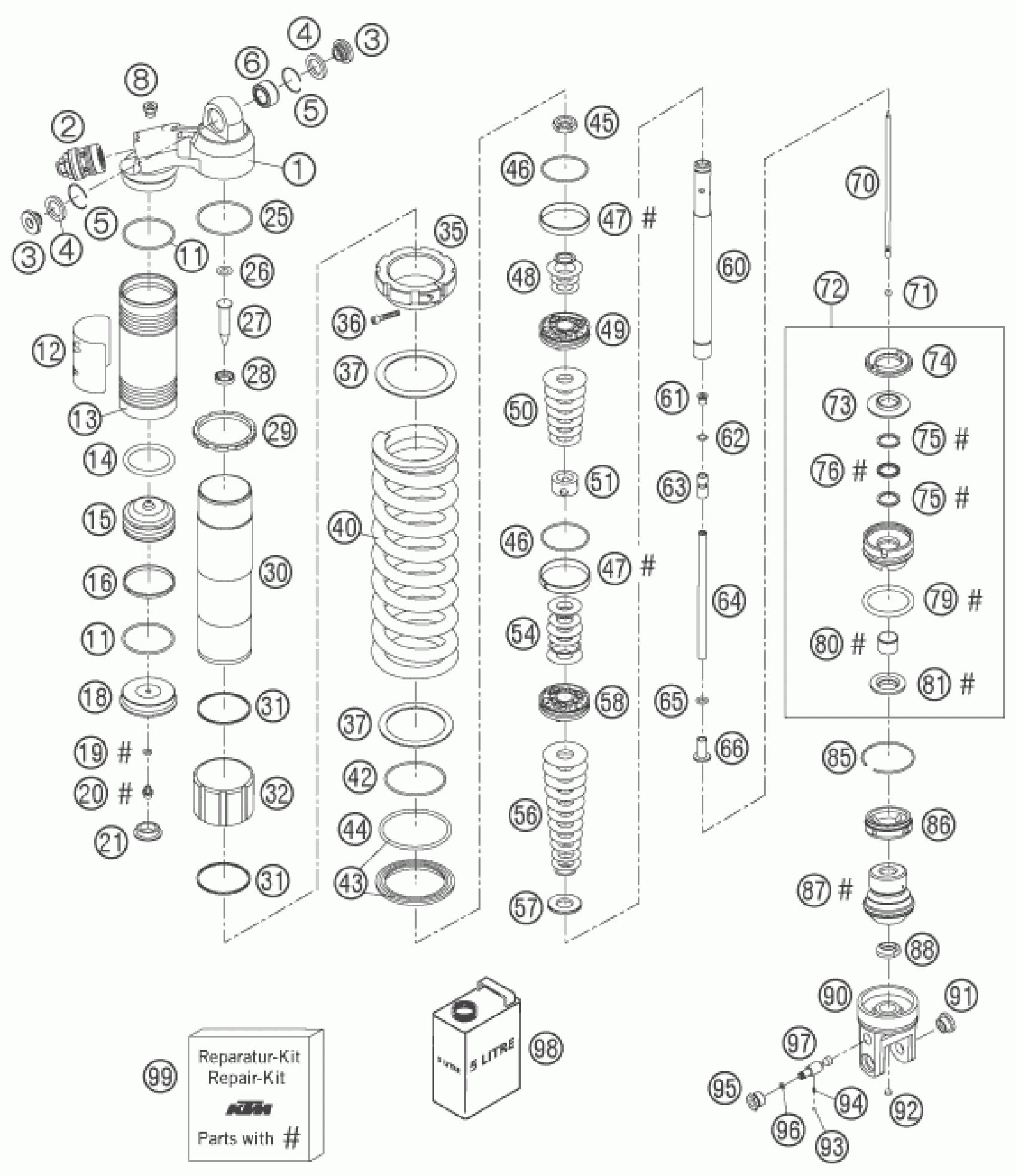

KTM 450 SMR 2006 SHOCK ABSORBER DISASSEMBLED Diagram

Bush 5/8,2/7x9,5/16,8x23

50180279

$4.11

NEEDLE L=175

50180261

$60.03

ADAPTOR CPL. D=50 H=29

50180435S

$119.20

SPRING 250 92N/MM ORANGE

91210051

Unavailable

Round-wire snap ring 58,5x2

50180273

$2.05

SPRING RET. D=80 W. O-RING 05

50180463S

$29.21

O-ring 66,27x1,78 Viton70

50180352

$3.08

Piston rod nut 16x1

50180141

$9.06

O-ring 44x,17x1,78 Viton70

50180099

$2.05

Piston ring 47,95x49,95x8

50180135

$17.76

SHIM 16X28X0,30

50180072

$3.08

Shim 21x36x0,25

50180209

$11.87

WASHER 16X21X1

50180210

$6.26

PISTON 6+6X3,5/4,5

50180446

$65.93

SHIM 16X32X0,30

50180074

Unavailable

SHIM 16X34X0,30

50180075

Unavailable

SHIM 16X36X0,30

50180076

Unavailable

SHIM 16X38X0,30

50180077

Unavailable

SHIM 16X40X0,30

50180078

Unavailable

Piston 16x49,6x13,5

50180311

$47.68

PISTON ROD D=18 L=151 M16X1

50180431

$172.42

BUSH M8X1

50180200

$14.02

O-ring 7x1,5 Viton70 green

50180157

$1.49

NEEDLE SEAT M8X1 D=5,5 05

50180439

$19.42

TUBE M18X1 L=151,5

50180264

$10.31

SHOCK ABSORBER TOP H=30,5 B=21

50180350

$628.97

50180213S4

Unavailable

Distance bush 12x15/18/24,5x10

46180007

$17.76

Seal ring 19,5x26x3

46180003

$5.60

Round-wire snap ring 25x1

50180168

$1.49

Ball joint bearing 15x25x13

50180005

$29.35

HS cylinder-head screw R1/8 l8

50180095

$2.42

O-ring 48x2 NBR70 siliconized

46810016

$1.49

WP CAUTION (PDS KTM) 58X83

52000041

$16.73

RESERV. SCREW L=120 D=52 BLACK

50180479

$81.43

O-ring 41x5 Viton75

46180014

$2.05

Piston 52mm reservoir

46180002

$43.66

Pistonring 47,5x50,5x3,9

46180015

$10.00

RESERVOIR CAP D=58

50180344

$117.64

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

HS lock screw M5x6

36120151

$1.86

Rubber cap do not open 22x5,5

46811208

$3.08

O-ring 52x2 NBR70

50180097

$2.05

spring washer 8,2x16x0,6

50180177

$2.05

NEEDLE D=11,4 D=7,6 L=57

50180444

Unavailable

SCREW CAP M20X1 D=11,5 H=5

50180437

$23.17

LOCK WASHER

50180270

$32.78

TUBE PDS L=198

50180430

$121.21

spreader ring 50X1,5

50180133

$7.40

Spring guide 54,15x60x40

50180081

$5.61

SPRING RETAINER M56X1

50180433

$120.67

AH SCREW DIN0912-M 5X30

0912050303

$1.49

Intermediate washer spring 61,

50180114

$3.08

SPRING 250 84N/MM (62) ORANGE

91210049

Unavailable

SHIM 16X42X0,30

50180079

Unavailable

Washer 18,5x43,7x6

50180113

$25.80

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

SPRING 250 88N/MM ORANGE

91210050

$125.26

SHIM 16X44X0,30

50180080

Unavailable

SHIM 16X40X0,25

50180069

Unavailable

SHIM 16X42X0,25

50180070

Unavailable

SHIM 16X44X0,25

50180071

Unavailable

SHIM REBOUND H16 '03

50180401

$121.42

SANDWICH BUSH D25XD16X14,5/D

50180269

$32.35

Shim 32,25x36x0,30

46811637

Unavailable

Shim 16x21x0,30

50180035

Unavailable

Shim 16x32x0,2

50180056

Unavailable

SHIM 16X36X0,20

50180058

Unavailable

Shim 16x22x0,30

50180036

Unavailable

SHIM 16X30X0,20

50180055

Unavailable

Shim 16x32x0,2

50180056

Unavailable

O-ring 8x2 NBR70

48600049

$1.49

SHIM 16X38X0,25

50180068

Unavailable

Shim 16x34x0,2 y5

50180057

Unavailable

SHIM 16X36X0,20

50180058

Unavailable

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

Washer 18x22,5x1,5 plastic

50180102

$8.59

X-ring 18x2,62 Viton70

50180101

$15.70

O-ring 41x5 NBR70

50180103

$1.49

Guide bushing 18x20x12

46180119

$6.35

Dirt scarper 18mm

50180082

$34.03

Round-wire snap ring 53x1,75

50180126

$1.49

COVER D=50

50180487

$44.12

Rubber pad 17x58x59

50180480

$20.37

Nut M18x1 h8 WAF24

50180481

$9.15

FORK PART L=55,5B=32,5D=12

50180484

$133.70

Threaded bush M12 d20

50180105

$15.51

Rubber plug 8x3,5 NBR50

50180297

$2.48

Steel ball d3

40540603

$1.49

Spring (1,7) l7,9

48600028

$3.08

HH screw M14x9

50180281

$28.98

O-ring 4x1,5 NBR70

50180222

$1.49

Adjustment screw slot

50180434

$6.13

SHOCK ABSORBER FLUID 5 LT 05

50180466S1

$149.59

REPAIR KIT GASKET 5018 PDS 06

R12011

$131.89
