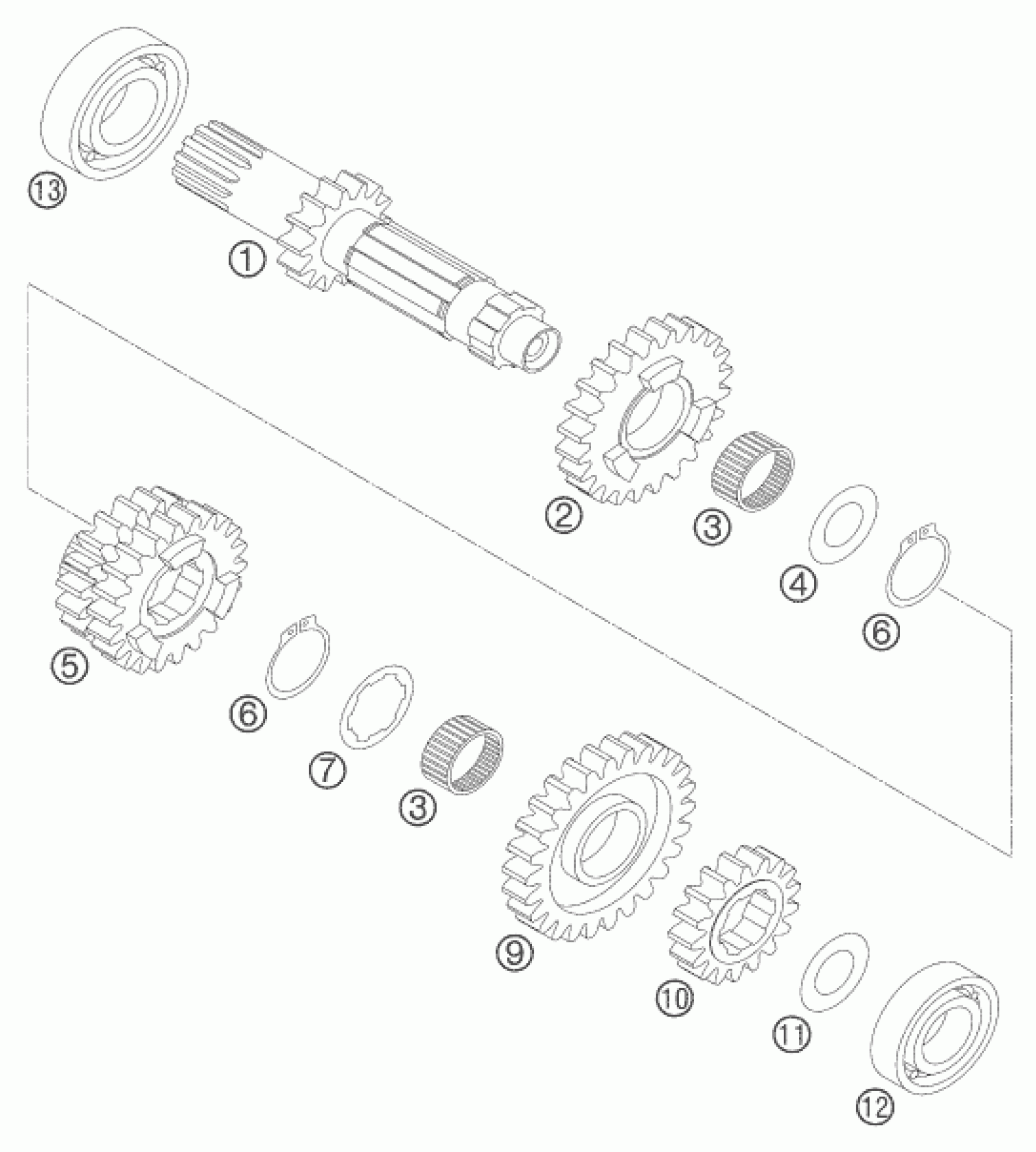

KTM 450 SMR 2005 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT-ZB 16-T SX 03

59033001300

$98.35

2

IDLER GEAR 5.G 24-T ''39''

59033005039

$64.73

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

4

STOP DISC 25,2X32X1,5

59033031000

$1.49

5

SLIDING GEAR 3/4.G 20/22-T''46

59033003046

$105.77

6

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

7

STOP DISC 25,2X32X1,5

59033030000

$3.08

9

IDLER GEAR 6.G 21-T ''45''

59033006045

$65.89

10

SOLID GEAR 2.G 18-T ''37''

59033002037

$51.12

11

STOP DISC 17,2X30X1

56033030000

$4.11

12

BALL BEARING 6203 JR2 C3

0625062035

$14.48

13

BALL BEARING 6205 C3 NTN

0625062054

$20.66
