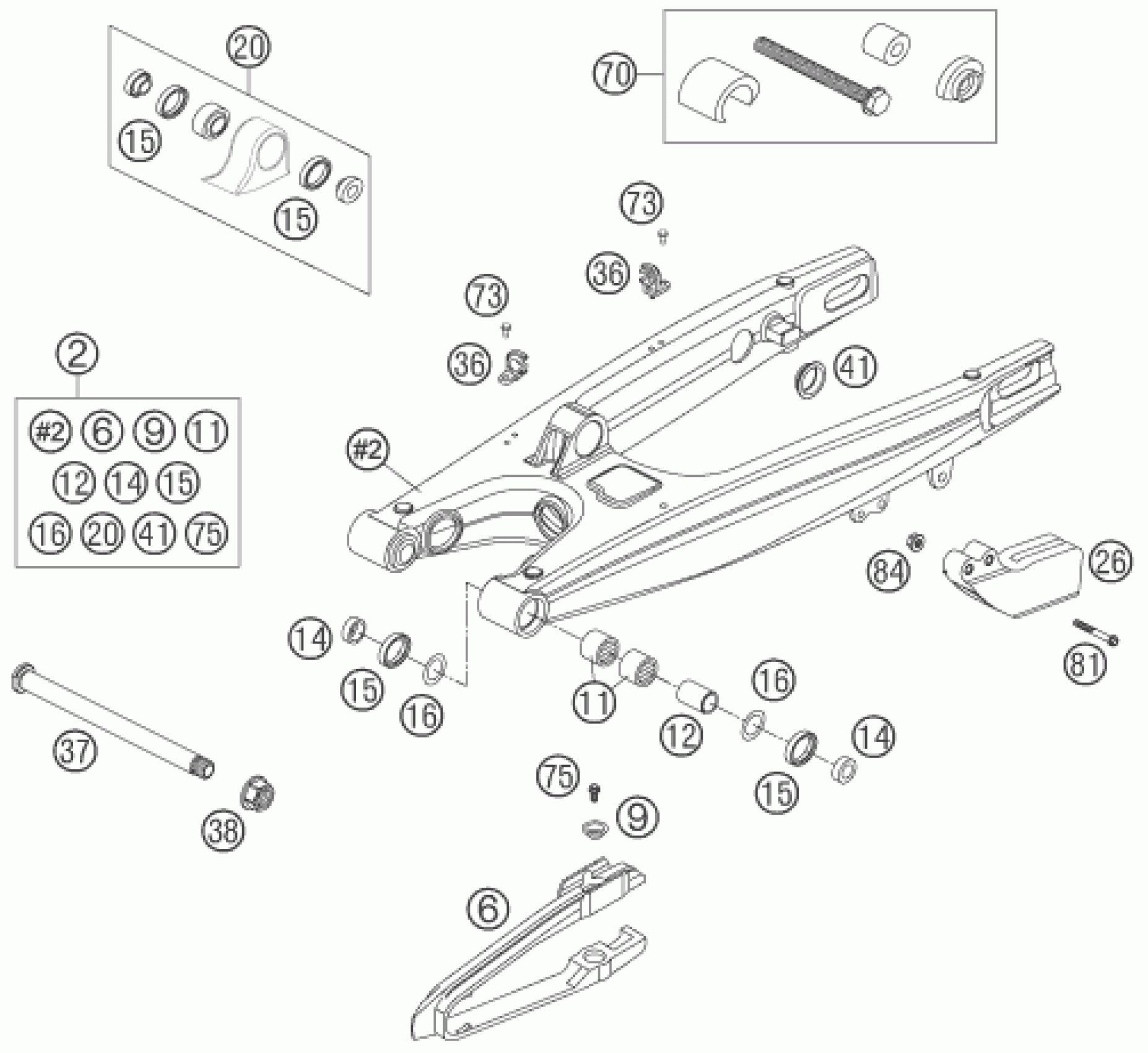

KTM 450 SMR 2005 SWING ARM Diagram

SWINGARM CPL. 05

59404230144

Unavailable

CHAIN GUARD '97

50304066000

$25.52

CHAIN GUARD 05

50304066100

$25.52

BUCKET

72210079000

$3.00

NEEDLE BEARING HK2212V

59004031100

$9.81

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

Bucket f. shaft seal ring 03

54804034000

$5.23

radial shaft seal 25x32x7

0760253270

$6.63

STOP DISK 22,2X31,7X1

54603036000

$3.08

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

CHAIN GUIDE REAR '94

54607066100

$28.60

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

SWINGARM BOLT M16X1,5 03

54804037000

$56.65

Nut with flange M16X1,5 WS=19

54804038000

$2.05

CLOSING COVER ROUND 03

58404041100

$1.49

TOOL BEARING MOUNTING PDS

50329000044

$752.92

SPECIAL SCREW M 5,0X10

0009050103

$2.05

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

Self locking nut M6 - 10

56509064100

$2.05
