REAR WHEEL

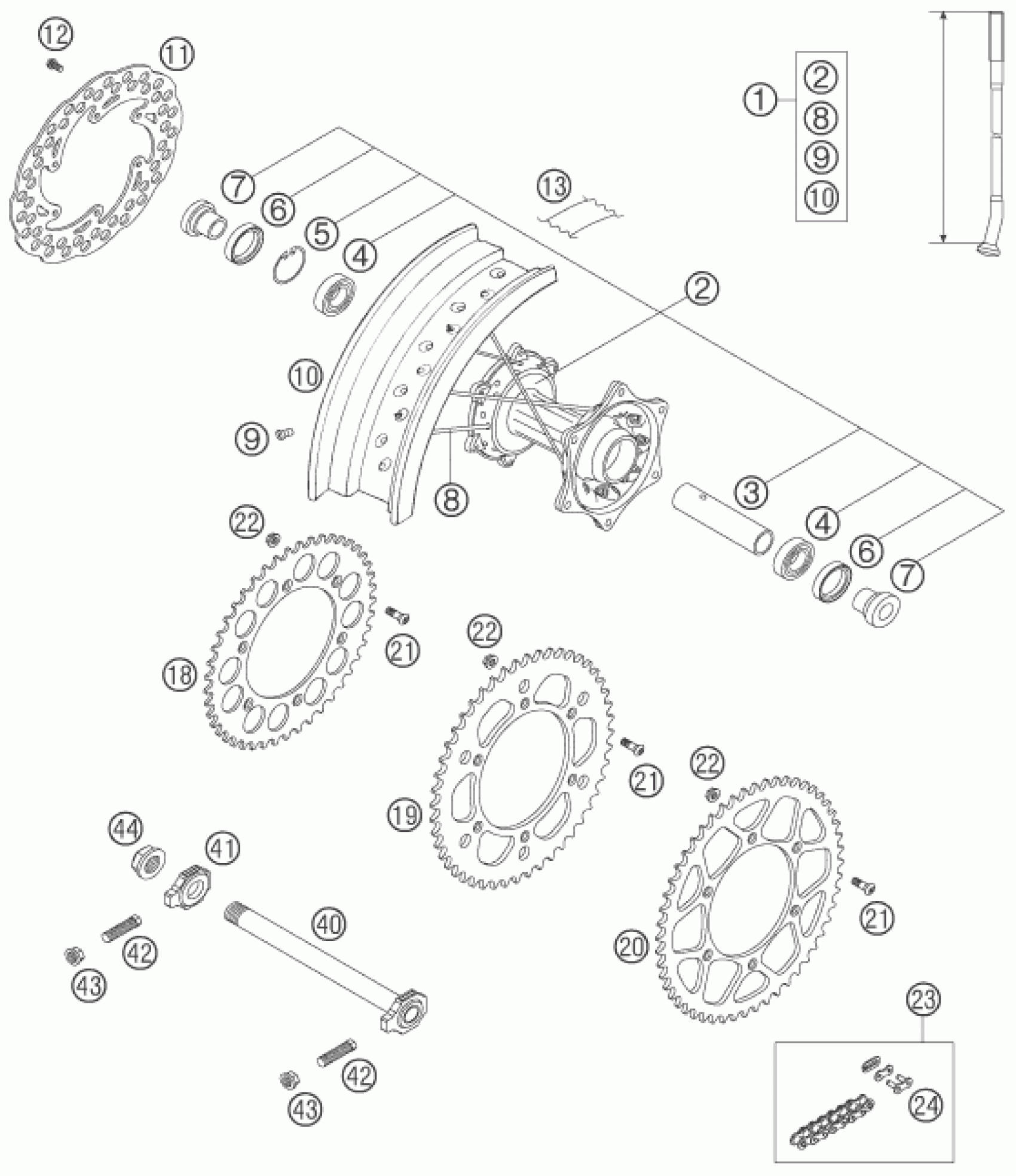

KTM 450 SMR 2005 REAR WHEEL Diagram
#
Description
Price
1
REAR WHEEL CPL. 5X17''
57310001044
$448.19
2
REARWHEEL HUB CPL.125-380 '00
50310010044
$313.68
2
REAR WHEEL HUB CPL. SX,EXC03
5481001004491
$313.68
3
BUSH. SPACER TUBE 121,5MM 01
59010011000
$22.34
4
Grooved ball bear.6005 DDU2CG2
0625060058
$18.32
5
CIRCLIP DIN0472-47X1,75
0472047175
$3.08
6
Radial shaft seal 32X47X7 BSL
0760324771
$13.36
7
BUSHING FOR HUB
54610016000
$32.90
8
SPOKE M5X177-13,5G 17''
58309171100
$5.23
9
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$2.05
10
REAR RIM 5,0X17''
57310070000
$215.79
11
BRAKE DISC REAR D=220MM 03
54810060000
$141.27
12
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
$2.05
13
rim tape 17"
58309073000
$15.04
18
REAR SPROCKET 38-T
58310051038
Unavailable
18
REAR SPROCKET 42-T
58310051042
Unavailable
18
REAR SPROCKET 40-T
58310151040
Unavailable
18
REAR SPROCKET 45-T
58310151045
$50.58
19
REAR SPROCKET 48-T
58310151048
Unavailable
19
REAR SPROCKET 49-T
58310151049
Unavailable
20
REAR SPROCKET 50-T
58310151050
Unavailable
20
REAR SPROCKET 51-T
58310151051
Unavailable
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
22
Self locking nut M8 10.9
54310086200
$3.08
23
CHAIN 5/8X1/4'' MX
50310165118
$84.14
24
Connecting link for 5031016511
50310166000
$6.79
40
WH. SPINDLE RE. CPL.265MM 00
50310085044
$78.91
41
Chain tension adjuster, right
50310084000
$20.66
42
SPEC. SCREW M10X1,25X40 WS=10
50304040000
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
