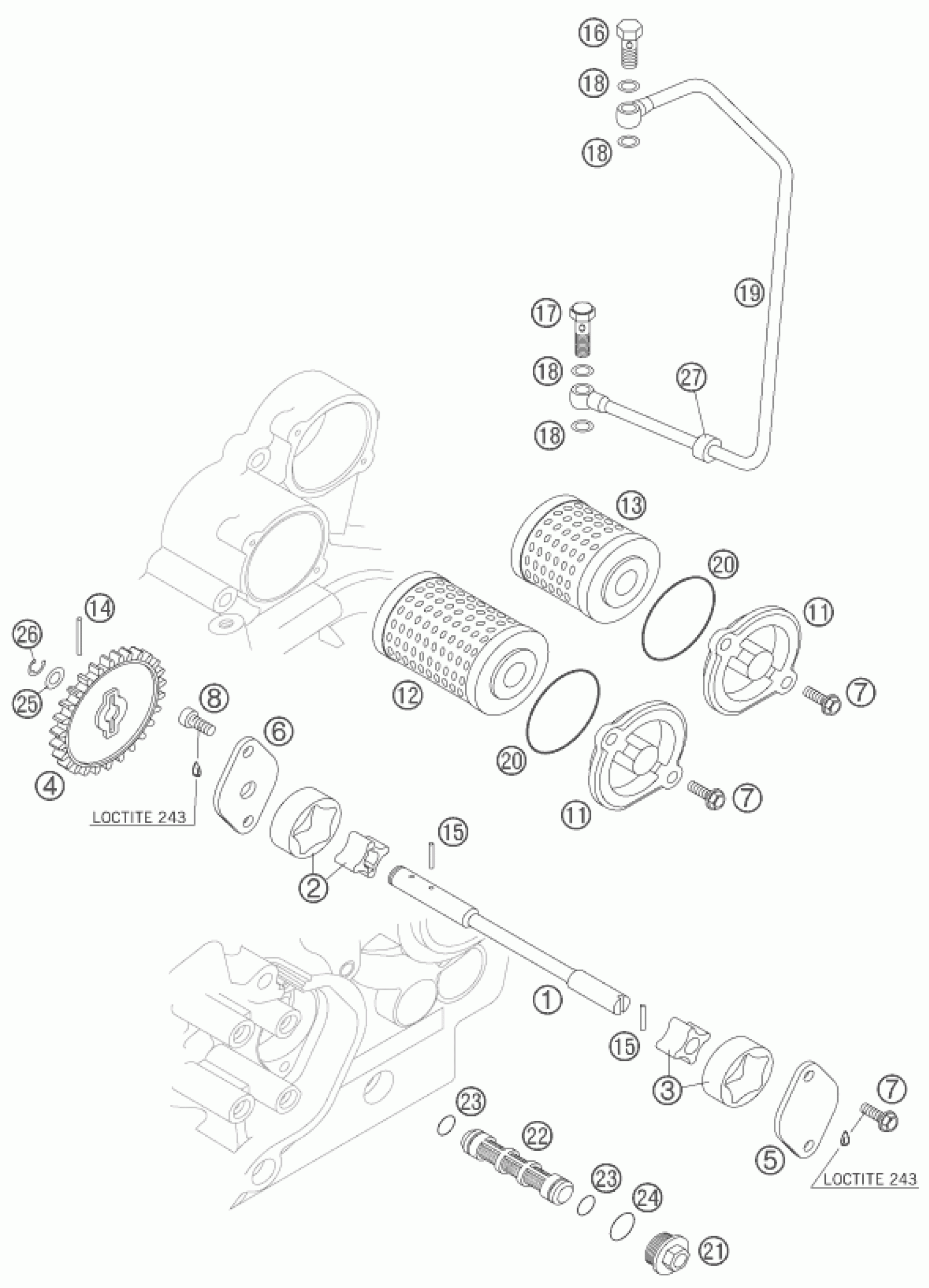

KTM 450 SMR 2005 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP SHAFT

59038002000

$26.55

2

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

$32.53

3

OILPUMP ROTOR 12MM G-95R/003

59038011012

$44.87

4

OIL PUMP GEAR 26-T

58438001000

$9.53

5

OIL PUMP COVER L/S

59038004000

$6.18

6

OIL PUMP COVER R/S 8MM

59038003000

$26.74

7

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

8

AH SCREW DIN6912-M 5X12

0984050122

$1.49

11

OIL FILTER COVER RACING

59038041000

$14.02

12

OIL FILTER LONG

58038005000

Unavailable

13

OIL FILTER SHORT

59038046000

Unavailable

14

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

15

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

16

BANJO BOLT M8 X 1 DIN7643

58038030000

$5.23

17

Jet screw M8x1

59038029000

$7.66

18

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

19

OIL LINE 450 '03

59438035000

$25.72

20

O-RING 40,00X2,50 NBR 70

0770400025

$2.05

21

PLUG M20X1,5 WS=13

59038017000

$7.85

22

OIL SCREEN 15X83MM

59038016000

$7.00

23

O-RING 12,5X1,5 NBR

0770125015

$2.05

24

O-RING 17,17X1,78 GLO

0770020170

$2.05

25

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

26

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

27

RUBBERBUFFER 8X17X10 SILENC'97

58405098000

$3.08
