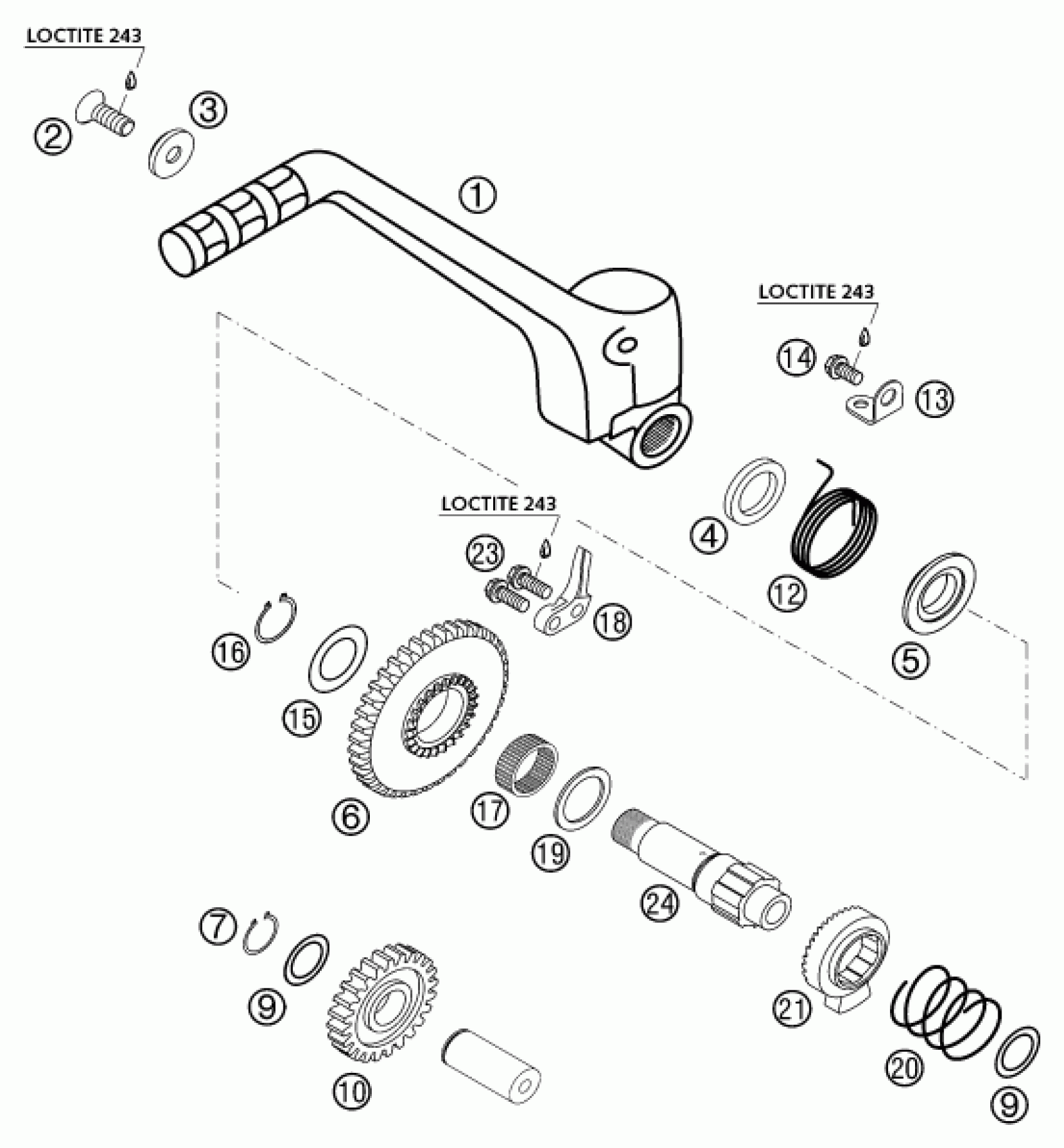

KTM 450 SMR 2005 KICK STARTER Diagram

#

Description
Price

1

KICKSTARTER CPL. '03

54833070044

$141.08

2

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

3

WASHER 8MM GALVANIZED

54633037000

$6.07

4

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60

5

DRIVING HUB

59033055000

$4.11

6

KICKSTARTER GEAR 39-T

59033051039

$81.90

7

CIRCLIP DIN0471-17X1

0471170010

$2.05

9

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

10

INTERMEDIATE GEAR 24-T

59033053000

$56.82

12

KICKSTARTER SPRING

59033054000

$8.03

13

SPRING HANGER

59033074000

$1.65

14

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

15

Shim 20x31.9x1

59033080000

$2.05

16

CIRCLIP DIN0471-19X1,2

0471190120

$1.49

17

NEEDLE BEARING K 22X26X10 A

0405222610

$6.72

18

BUMP PART

59033069000

$13.27

19

STOP DISK 22,2 X 30 X 1,5

58033031000

$4.11

20

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

21

RATCHET GEAR KICKSTARTER

59033052000

$40.57

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

24

KICKSTARTER SHAFT RACING2000

59033050000

$65.25
