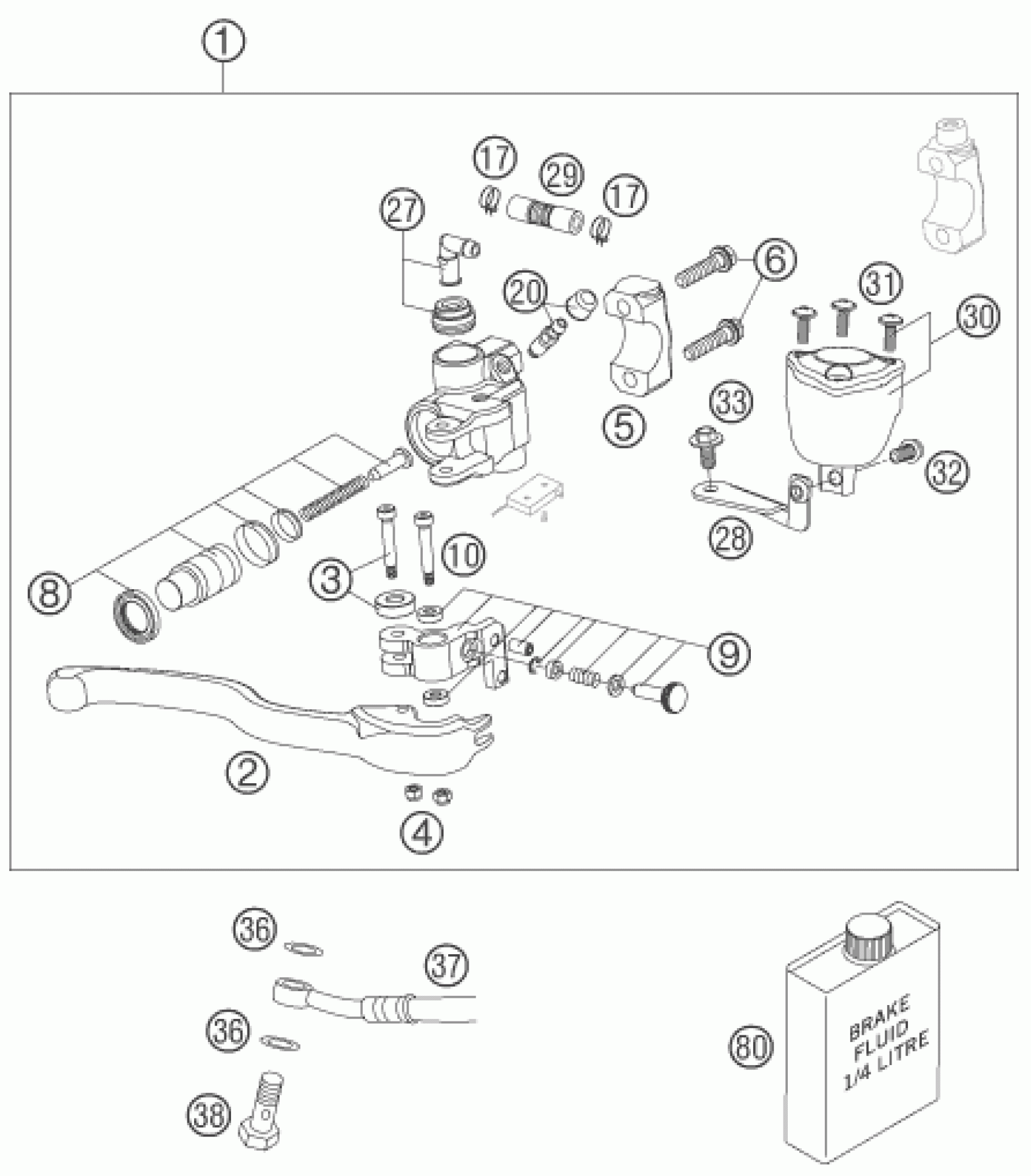

KTM 450 SMR 2005 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HANDBRAKECYLINDER CPL. 05

58613001044

$292.34

2

HANDBRAKE LEVER 05

58613002000

$70.87

3

LEVER SCREW 05

58613002150

Unavailable

4

SELF LOCKING NUT DIN0985-M 4

0985040003

$1.49

5

CLAMP 05

58613005150

$25.13

6

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

8

REP. SET PISTON 05

58613008000

$55.02

9

ROCKER CPL. 05

58613002050

$92.54

10

BEARING BOLT 05

58613006000

$16.33

17

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

20

BLEEDER SCREW WITH CAP

58613020000

$13.52

27

CONNECTING TUBE CPL. 05

58613027000

$17.06

28

RETAINING PLATE 05

58613028000

$19.41

29

HOSE FOR RESERVOIR 05

58613029150

$12.33

30

BRAKE FLUID RESERVOIR CPL. 05

58613029044

$41.33

31

FIXING SCREW F. RESERV. 05

58613029050

Unavailable

32

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

33

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

36

sealing ring DIN 7603 10x14x1

0603100141

$2.05

37

BRAKEHOSE 1175MM 05

58613012100

$66.72

38

BANJO SCREW 05

58613013100

$12.19

80

BRAKE FLUID DOT 4.0

306054

Unavailable
