ENGINE CASE

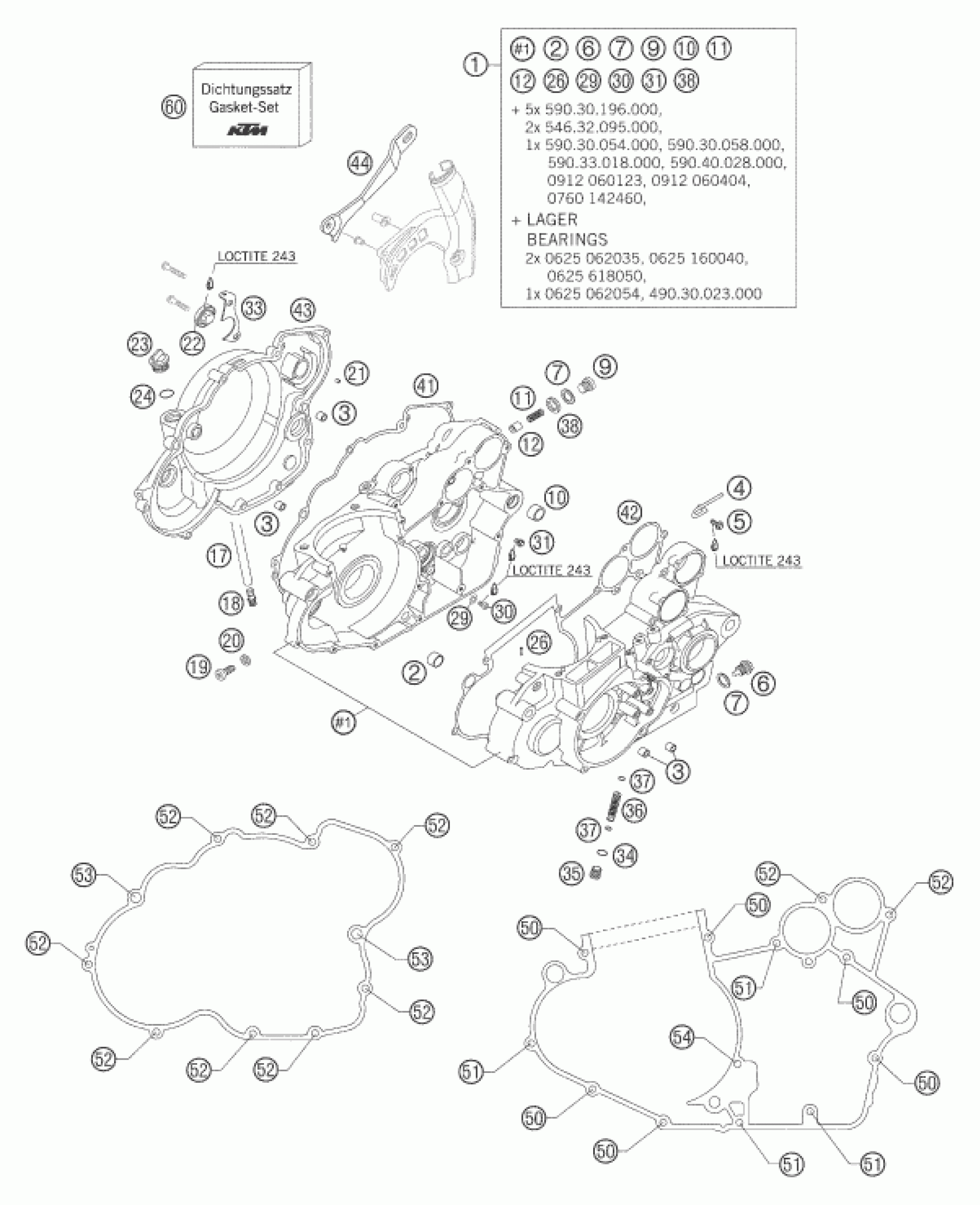

KTM 450 SMR 2005 ENGINE CASE Diagram
#
Description
Price
1
% ENGINE CASE CPL. W.TR.BEAR.
59030000144
Unavailable
2
DOWEL 17 X 13 X 12
51030026100
$6.44
3
DOWEL 9,8 X 7 X 10
49030090000
$2.05
4
HANGER FOR VENT HOSE
59030090000
$4.11
5
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
6
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
7
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
9
threaded plug DIN 908 M12x1.5
0908120153
$4.11
10
DOWEL 17 X 19 X 12
59030024000
$5.23
11
PRESSURE SPRING L=25MM D=1MM
58038023300
$5.23
12
VALVE PISTON D=10MM
58038028000
$37.77
17
ENGINE BREATHER TUBE 00
59031050100
$14.58
18
BLEEDER FLANGE M12X1,5 WS=13
59030022100
$7.85
19
LOCATING SCREW M8 L=30,5 02
59830080000
$4.13
20
CU-SEAL RING 8 X 14 X 3
58030081000
$2.05
21
NEEDLE ROLLER DIN5402 2,5X9,8
0402025980
$3.08
22
OIL LEVEL GLASS G 1777 Y
59030019000
$21.31
23
PLUG M 24X3
58030020000
$5.23
24
O-RING 19,00X3,00 NBR
0770191015
$2.05
26
Needle roll.DIN5402 NRB 4X9.8
0402040980
$3.08
29
WASHER DIN0125-A 5,3
0125050003
$1.49
30
FLAT HEAD SCREW DIN7985-M 5X 8
0985050083
$1.49
31
HH COLLAR SCREW M 6X8 WS=8
0015060083
$2.05
33
RET.BRACKET F.BRAKE LEVER HUB
59030001090
$2.81
34
O-RING 12,00X2,00 NBR 70
0770120020
$2.05
35
PLUG M16X1,5
59038014000
$16.82
36
OIL SCREEN 11,8X44,5MM
59038015000
$12.61
37
O-RING 9X1,5 NBR
0770090015
$2.05
38
SEAL RING DIN7603 12X18X3
0603121830
$2.05
41
GASKET FOR CLUTCH COVER
59030025100
$26.45
42
ENG CASE GASKET NS92-24
59030039100
$37.48
43
CLUTCH COVER RACING 2000
59030001000
Unavailable
44
CHAIN DAMPERSHEET RACING 20
59030047000
$12.70
50
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
51
HH COLLAR SCREW M 6X60 WS=8
0015060603
$3.08
52
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
53
HH COLLAR SCREW M 6X35 WS=8
0015060353
$3.08
54
HH COLLAR SCREW M 6X75 WS=8
0015060753
$3.08
60
GASKET SET CPL. RACING 2000
59030099000
$364.74
