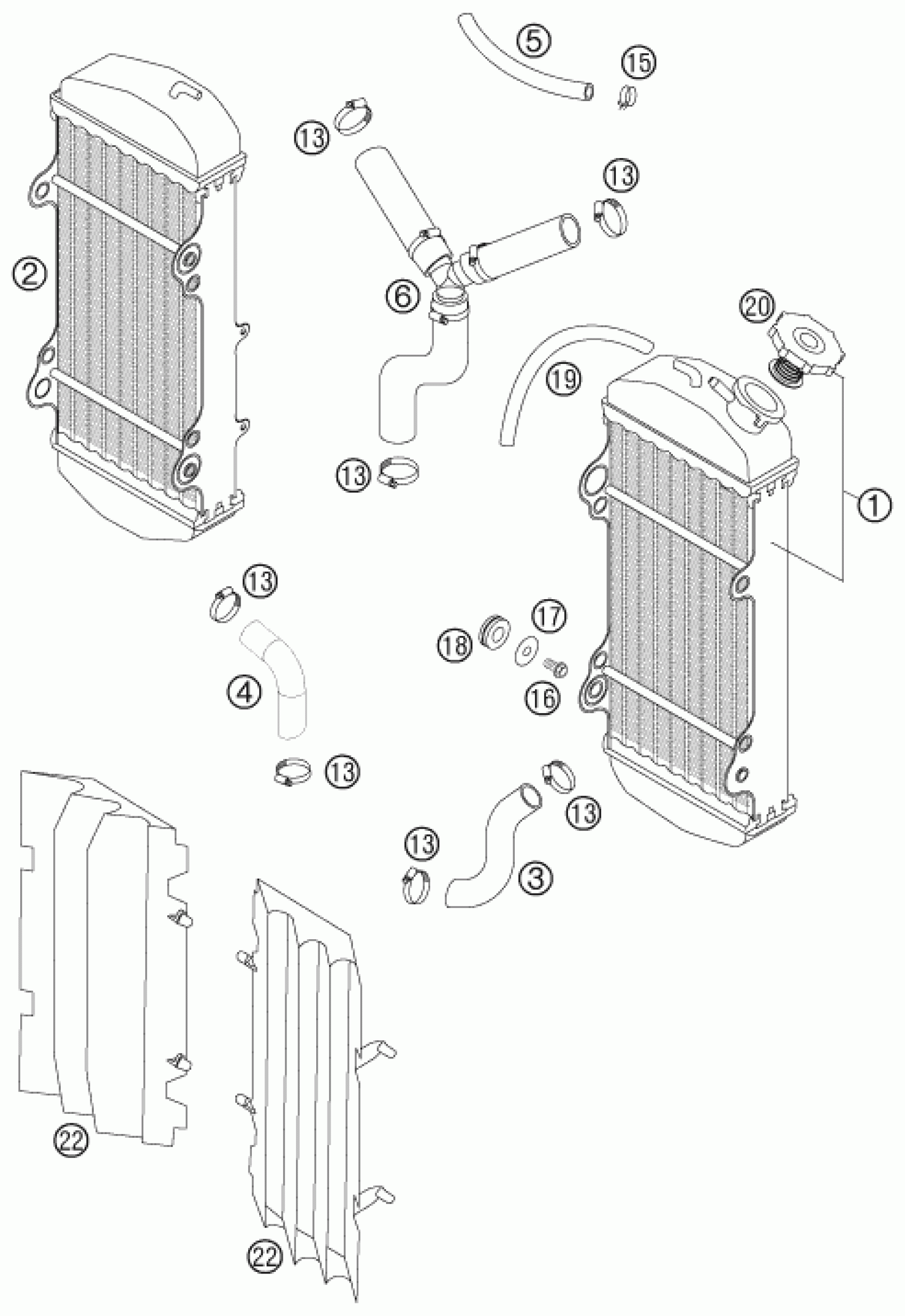

KTM 450 SMR 2005 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S 45.407 03

59035007300

$231.35

2

RADIATOR R/S 45.408 03

59035008300

$186.99

3

RADIATOR HOSE L/S RAD.-CYL. 03

59035024100

$8.13

4

RADIATOR HOSE R/S RAD.-CYL. 03

59035124100

$10.65

5

HOSE ID 7,5 PER METER

54435024001

$23.27

6

RADIATOR HOSE CYL.HEAD-RAD. 03

59035125000

$29.97

13

HOSE CLAMP GEMI 18-29

10001020000

$2.05

15

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

16

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

17

Washer DIN9021-A 6.4

0021060003

$2.05

18

RUBBER SLEEVE D=12MM

41001052000

$4.11

19

PVC-HOSE 7X10 PER METER

55007016001

$6.07

20

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

22

RADIATIOR PROTECTION 03

59035040000

$8.03

22

RADIATOR PROTECTION ORANGE 03

5903504000004

Unavailable
