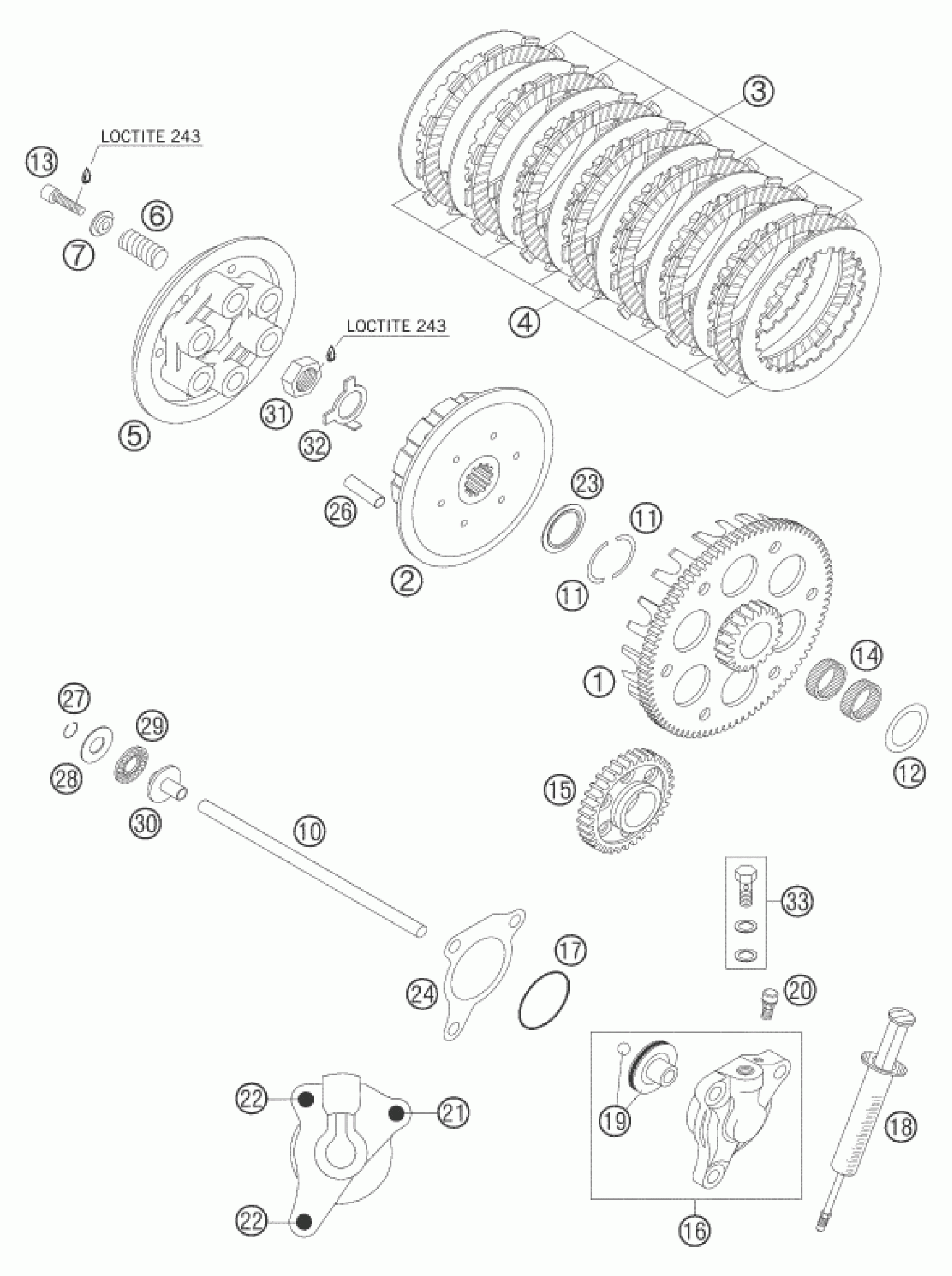

KTM 450 SMR 2005 CLUTCH Diagram

OUTER CLUTCH H. 76-T/20-T 2001

59032000276

$299.46

INNER CLUTCH HUB RACING

59032002200

Unavailable

LINING DISC 2MM 04

59032011100

$22.43

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

PRESS. CAP W. OIL PASSAGE 05

59032003300

$48.07

CLUTCH SPRING 2,5X43MM

59032005000

$3.08

SPRING RETAINER 6,2X12X18X3,6

59032006000

$2.05

PUSH ROD 7X188MM

59032054000

$13.08

HALF-WASHER 03

59032007000

$2.05

SUPPORTWASHER 25X35X1

59032017000

$2.05

AH SCREW DIN6912 M6X25

0984060252

$2.05

NEEDLE BEAR K 25X29X10

0405252910

$8.87

PRIMARY GEAR 33-T

59032000033

$126.59

OUTPUT CYLINDER CPL. 27MM 03

59032061044

$240.75

O-ring 30x1.5 NBR 70

0770300015

$2.05

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

PISTON + O-RING + BALL 27MM

59032066000

$240.75

BLEEDER SCREW WITH CAP

54732064000

$21.96

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

STEPPED WASHER 03

59032009000

$8.03

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

DRIVING SLEEVE D=8,L=31 2002

59032004000

$3.00

CIRCLIP DIN7993-RW12

0993012000

$3.08

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

PRESSURE PIECE 125-380 '98

50332054051

$26.45

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

LOCK WASHER

56532018000

$6.26

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05
