TANK, SEAT

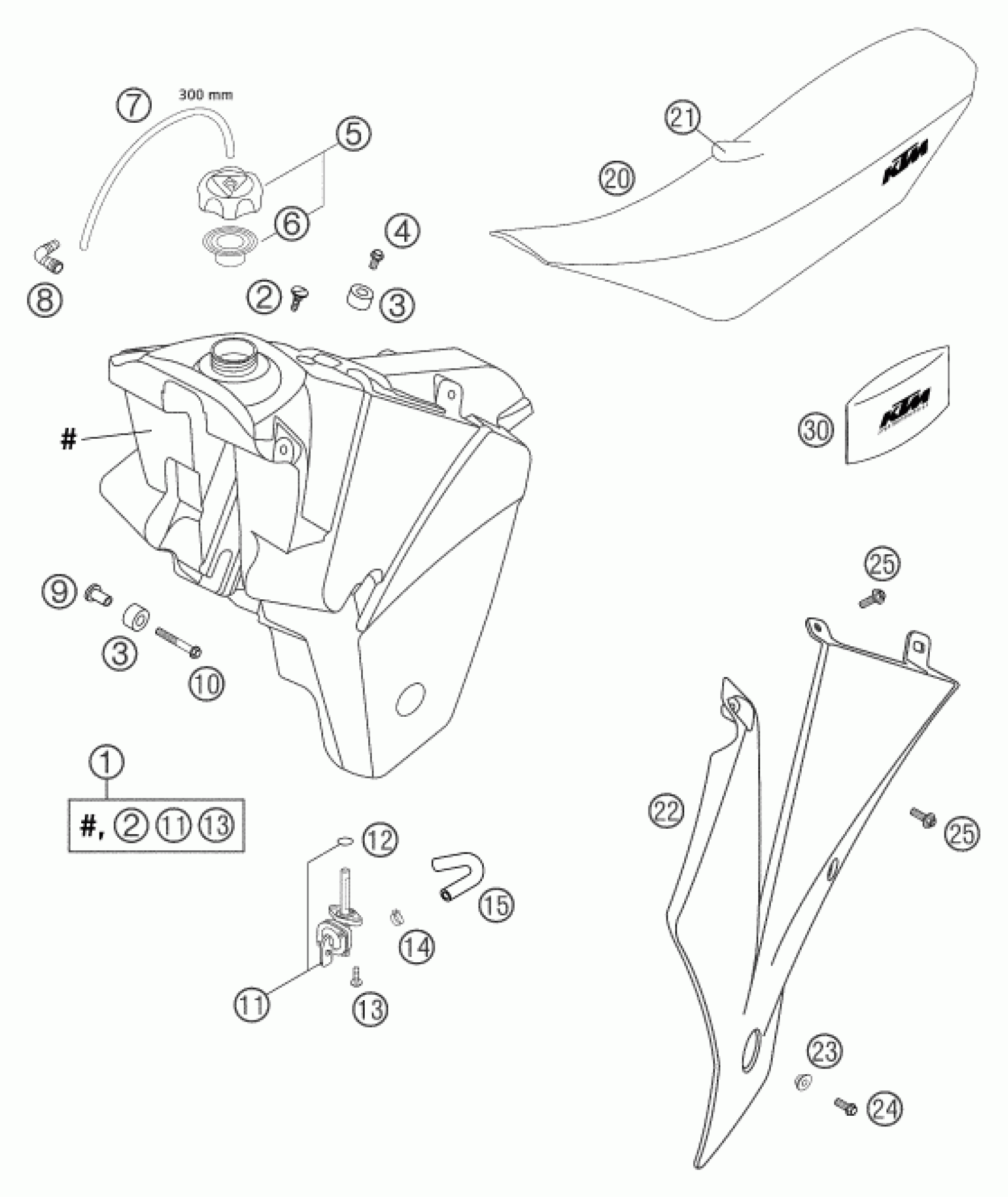

KTM 450 SMR 2004 TANK, SEAT Diagram
#
Description
Price
1
FUEL TANK CPL. SX 6,5L 03
5900711300004
$260.50
2
SCREW SEAT FASTENING D=6X23/18
50307011000
$3.08
3
TANK ROLLER 12X26X12 '98
50307014000
$11.02
4
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
5
FILLER CAP CPL. WITH VALVE
59007008044
$24.58
6
GASKET FOR FILLER CAP HIGH
59007009000
$8.03
7
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
8
ANGLE PIECE 90 DEGREE M10X1
51030022000
$5.23
9
SUPORT BUSHING TANKROLLER
59003001055
$6.72
10
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
12
O-RING 13,00X2,30
0770130023
$4.11
13
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
11
GAS COCK MIKUNI ON/OFF 2001
50307005000
$96.39
14
CLAMP YDNAC 10128 12MM
58031005000
$3.08
15
FUEL HOSE 7,5X13MM
59007016000
$13.46
20
SEAT BLACK WITH KTM-LOGO 03
54807040000
$151.37
20
SEAT HIGH 20MM
54807040300
Unavailable
21
SEAT COVER BLACK 03
54807040050
$51.04
22
SPOILER L/S ORANGE SX 2001
5030815000004
$31.07
22
SPOILER R/S ORANGE SX 2001
5030815100004
$31.07
23
BUSH FOR SPOILER 6X11X16X5 MM
50308052000
$1.96
24
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
25
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
30
ORIGINAL EQUIPMENT TOOL KIT
59029099000
Unavailable
