Description

Price

1

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

2

ENGINE HOLDER FOR RACING 2000

59029002000

$41.36

3

RIVETTING TOOL TIMING CHAIN

59029020000

$244.94

4

MOUNTING SLEEVE SEAL RING

59029005010

$21.59

5

SPECIAL CIRCLIP PLIER

51012011000

$191.50

6

EXTRACTOR PRIM. GEAR CPL.

59029021044

$15.30

7

PISTON RING COMPRESSOR D=95MM

58012015095

$113.98

8

LOCTITE 243 BLUE 5 ML

6899785

$28.04

9

BUSHING EXTRACTOR

15112017000

$179.32

10

INTERN.BEAR.PULLER 12-16 MM

15112018000

$249.22

10

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

10

INTERN.BEAR.PULLER 5-7 MM

15112018200

$204.35

11

LIMIT PLUG GAUGE F.VALVE GUIDE

59029026006

$32.84

12

MOUNTING RING FOR INNER CLUTCH

59029035000

$19.26

13

PROTECTION COVER F.MAIN SHAFT

59029036000

$19.49

14

EXTRACTOR FOR TIMING GEAR

59029033000

$164.93

15

VALVE SPRING LEVER

59029019000

$415.46

16

MOUNTING TOOL INNER RING NJ206

58429037037

$91.62

17

WRENCH FMIXTURE CONTROL SCREW

59029034000

$45.11

18

FLYWHEEL EXTRACTOR

58012009000

$47.90

19

SILICON GASKET THREE-BOND

309098

$28.88

20

HOLDING SPANNER FOR SPROCKET

51012012000

$98.42

21

SPARK PLUG WRENCH 13/16

59029072000

$42.01

26

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

27

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

28

CLUTCH HOLDER RACING 2004

59029003100

$87.69

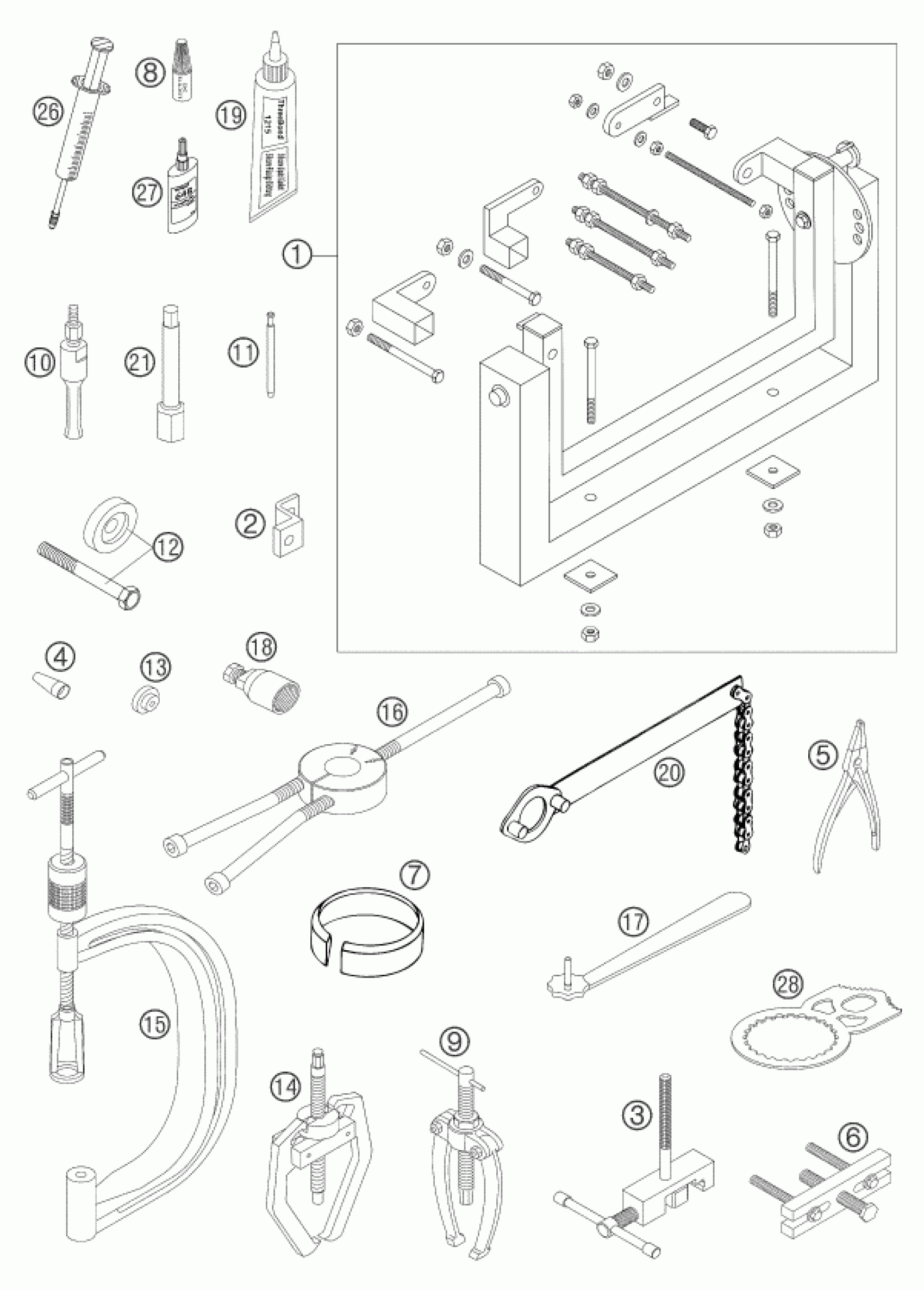

KTM 450 SMR 2004 Special tools (engine) Diagram
