SHOCK ABSORBER DISASSEMBLED

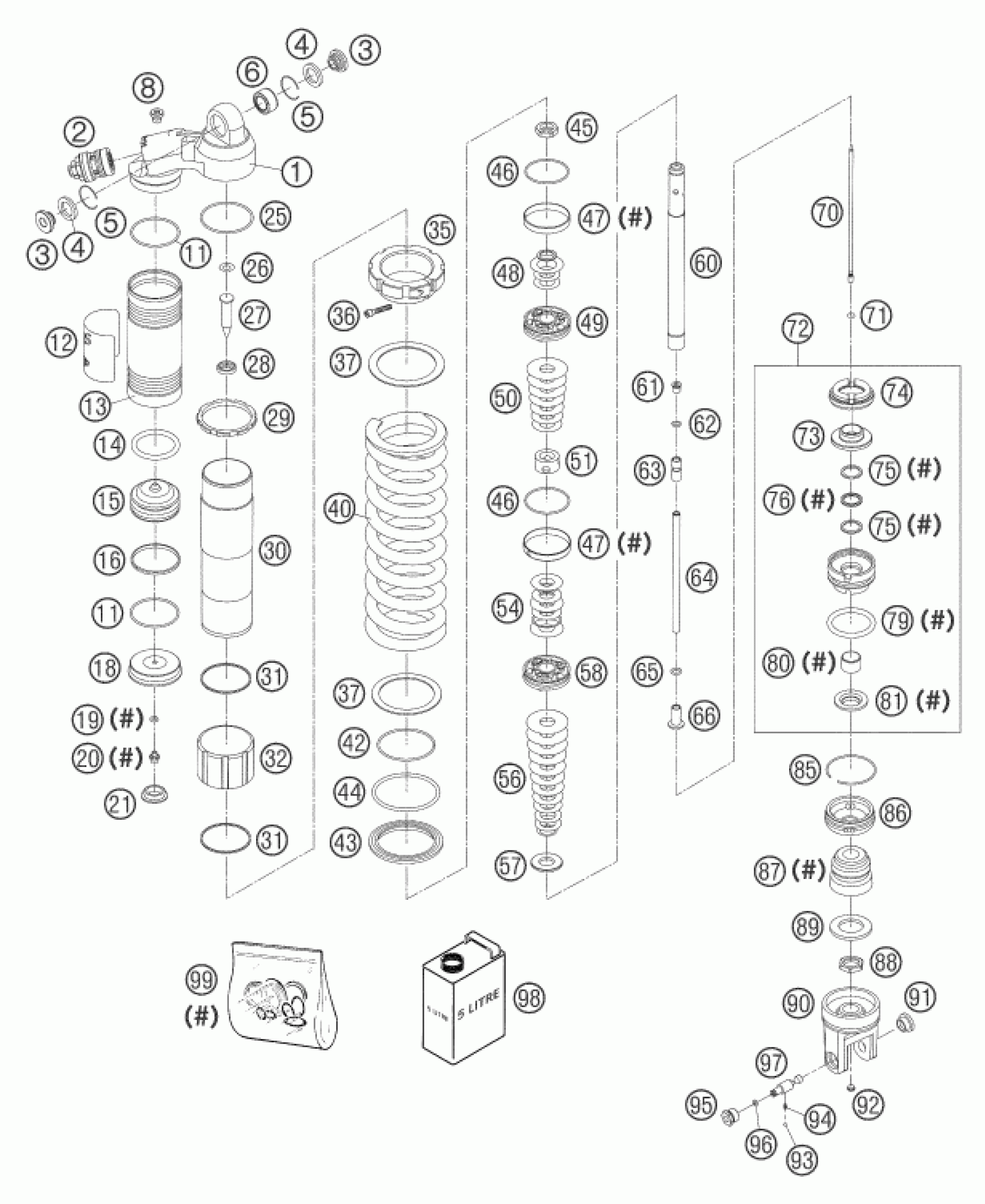

KTM 450 SMR 2004 SHOCK ABSORBER DISASSEMBLED Diagram
#
1
SHOCK ABSORBER TOP H=30,5 B=21
50180350
$628.97
2
50180213S4
Unavailable
3
Distance bush 12x15/18/24,5x10
46180007
$17.76
4
Seal ring 19,5x26x3
46180003
$5.60
5
Round-wire snap ring 25x1
50180168
$1.49
6
Ball joint bearing 15x25x13
50180005
$29.35
8
HS cylinder-head screw R1/8 l8
50180095
$2.42
11
O-ring 48x2 NBR70 siliconized
46810016
$1.49
12
WP CAUTION (PDS KTM) 58X83
52000041
$16.73
13
RESERV. SCREW L=140 D=52 GOLD
50180389
$154.65
14
O-ring 41x5 Viton75
46180014
$2.05
15
Piston 52mm reservoir
46180002
$43.66
16
Pistonring 47,5x50,5x3,9
46180015
$10.00
18
RESERVOIR CAP D=58
50180344
$117.64
19
O-ring 5,28x1,78 NBR70 black
46810893
$1.49
20
HS lock screw M5x6
36120151
$1.86
21
Rubber cap do not open 22x5,5
46811208
$3.08
25
O-ring 52x2 NBR70
50180097
$2.05
26
spring washer 8,2x16x0,6
50180177
$2.05
27
NEEDLE D=10 L=57
50180393
$26.86
27
NEEDLE D=7,2 L=57
50180414
Unavailable
28
SCREW CAP M20x1, D=11
50180271
$23.81
29
LOCK WASHER
50180270
$32.78
30
TUBE PDS L=196
50180295
$111.63
31
spreader ring 50X1,5
50180133
$7.40
32
Spring guide 54,15x60x40
50180081
$5.61
35
Spring retainer M56x1,75x80x15
50180354
$133.79
36
AH SCREW DIN0912-M 5X30
0912050303
$1.49
37
Intermediate washer spring 61,
50180114
$3.08
40
SPRING 250 72N/MM D=12,5 (59)
91210002
Unavailable
40
SPRING 250 76N/MM D=12,5 (59)
91210003
Unavailable
40
SPRING 250 88N/MM D=13,0 (62)
91210006
Unavailable
40
SPRING 250 92N/MM D=13,0 (62)
91210007
$160.46
40
SPRING 250 97N/MM
91210008
Unavailable
40
SPRING PDS1-250 70-90N/MM
91210009
Unavailable
40
SHOCK SPRING L= 250 75-96 N/MM
91210010
Unavailable
40
SPRING PDS3-250 80-103N/MM
91210011
Unavailable
40
SPRING PDS4-250 85-111N/MM
91210012
Unavailable
40
SPRING PDS0-250 65-83N/MM
91210013
Unavailable
40
SPRING PDS5-260 66-86N/MM
91210014
Unavailable
40
SPRING PDS6-260 71,5-90,5N/MM
91210015
Unavailable
40
SPRING PDS7-260 76-95N/MM
91210016
Unavailable
40
SPRING PDS8-260 81-99,5N/MM
91210017
Unavailable
42
Round-wire snap ring 58,5x2
50180273
$2.05
43
SPRING RETAINER D=80 2003
50180355
$74.57
44
O-ring 66,27x1,78 Viton70
50180352
$3.08
45
Piston rod nut 16x1
50180141
$9.06
46
O-ring 44x,17x1,78 Viton70
50180099
$2.05
47
Piston ring 47,95x49,95x8
50180135
$17.76
48
SHIM 16X28X0,30
50180072
$3.08
48
Shim 21x36x0,25
50180209
$11.87
48
WASHER 16X21X1
50180210
$6.26
49
Piston 16,05x49,6x13,5 4,5/7
50180197
$45.62
50
SHIM 16X32X0,30
50180074
Unavailable
50
SHIM 16X34X0,30
50180075
Unavailable
50
SHIM 16X36X0,30
50180076
Unavailable
50
SHIM 16X38X0,30
50180077
Unavailable
50
SHIM 16X40X0,30
50180078
Unavailable
50
SHIM 16X42X0,30
50180079
Unavailable
50
SHIM 16X44X0,30
50180080
Unavailable
51
SANDWICH BUSH D25XD16X14,5/D
50180269
$32.35
54
Shim 32,25x36x0,30
46811637
Unavailable
54
Shim 16x21x0,30
50180035
Unavailable
54
Shim 16x32x0,2
50180056
Unavailable
54
SHIM 16X36X0,20
50180058
Unavailable
56
Shim 16x22x0,30
50180036
Unavailable
56
SHIM 16X30X0,20
50180055
Unavailable
56
Shim 16x32x0,2
50180056
Unavailable
56
Shim 16x34x0,2 y5
50180057
Unavailable
56
SHIM 16X36X0,20
50180058
Unavailable
56
SHIM 16X38X0,25
50180068
Unavailable
56
SHIM 16X40X0,25
50180069
Unavailable
56
SHIM 16X42X0,25
50180070
Unavailable
56
SHIM 16X44X0,25
50180071
Unavailable
57
SHIM REBOUND H16 '03
50180401
$121.42
58
Piston 16,05x49,6x13,5 4,5/7
50180197
$45.62
60
SPINDEL D=18, L=153, M16x1
50180294
$132.15
61
BUSH M8X1
50180200
$14.02
62
O-ring 7x1,5 Viton70 green
50180157
$1.49
63
NEEDLE SEAT M8X1
50180201
$18.99
64
TUBE M18X1 L=151,5
50180264
$10.31
65
O-ring 8x2 NBR70
48600049
$1.49
66
Bush 5/8,2/7x9,5/16,8x23
50180279
$4.11
70
NEEDLE L=175
50180261
$60.03
71
O-ring 2,2x1,6 Viton75 green
46811265
$1.49
72
ADAPTOR CPL. D=50, H=28,5
50180349S1
$219.19
73
STEEL DISC 18,5X43,7X6
50180304
$19.47
74
Rubber pad rebound 27x48x8 NBR
50180107
$4.11
75
Washer 18x22,5x1,5 plastic
50180102
$8.59
76
X-ring 18x2,62 Viton70
50180101
$15.70
79
O-ring 41x5 NBR70
50180103
$1.49
80
Guide bushing 18x20x12
46180119
$6.35
81
Dirt scarper 18mm
50180082
$34.03
85
Round-wire snap ring 53x1,75
50180126
$1.49
86
Cap 50,1x17,5 h6
50180165
$43.98
87
Rubber pad 17,2x45,2x40 black
50180276
$8.41
88
HH locking nut M18x1 h5 WAF24
50180283
$11.86
89
Preload bush 42x26,5x2,5
48600036
$2.05
90
FORK PART L=55,5 B=32,5 D=12
50180356
$303.66
91
Threaded bush M12 d20
50180105
$15.51
92
Rubber plug 8x3,5 NBR50
50180297
$2.48
93
Steel ball d3
40540603
$1.49
94
SPRING D=2,9, L=6,2
40540602
$3.08
95
HH screw M14x9
50180281
$28.98
96
O-ring 4x1,5 NBR70
50180222
$1.49
97
ADJUSTING SCREW 80 DEG., L=39
50180280
$20.99
98
SHOCK ABSORBER FLUID 5 LT '03
50180342S1
$149.59
99
REPAIR-KIT GASKET 5018 PDS 03
R12008
$123.66
